Additional Pictures

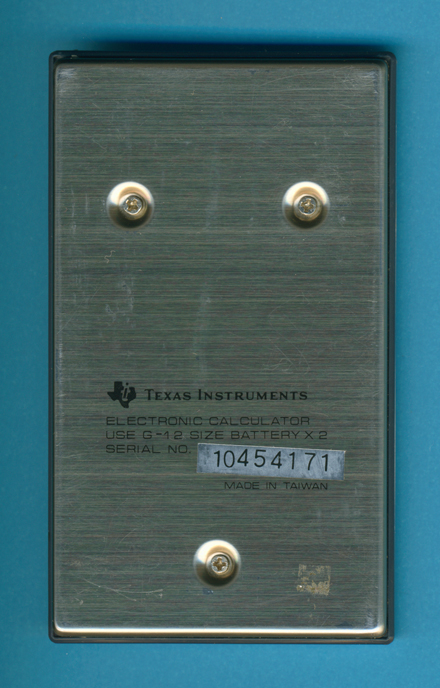

The backside of the TI-18 gives
a simple construction.

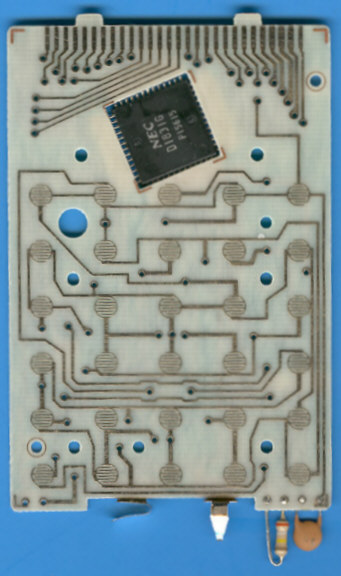

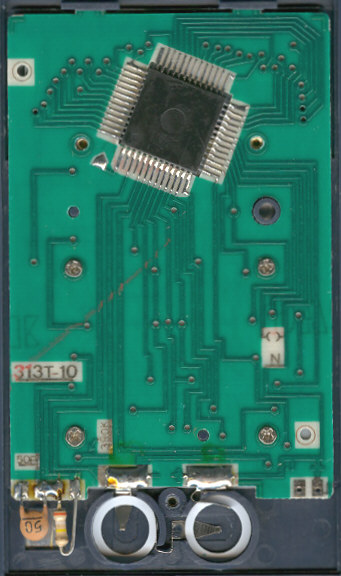

The front of the printed
circuit board (PCB) with
a NEC calculator chip.

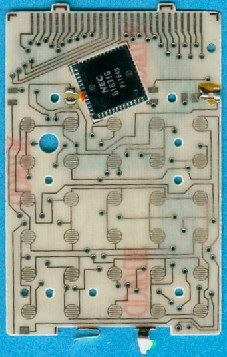

The PCB of the TI-1744 is
more or less identical with
the TI-18 on the left.
