Additional Pictures

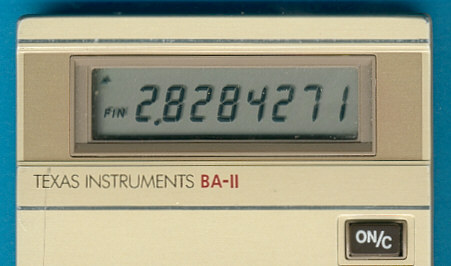

The original BA-II with the LCD-frame shifted upwards.

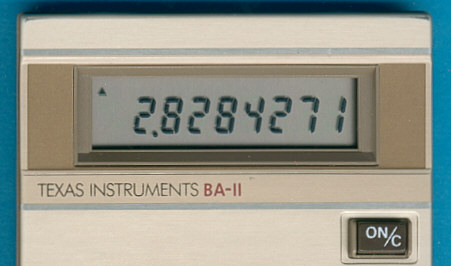

The later BA-II with a significant lower display position.

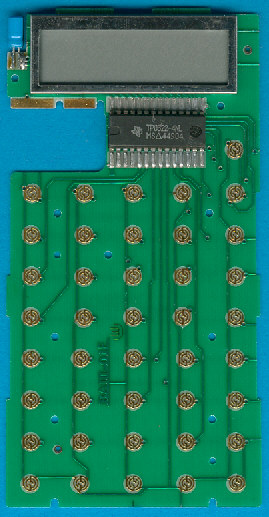

The printed circuit board (PCB) of the first BA-II uses a
rigid construction and a metal frame around the LC-display.

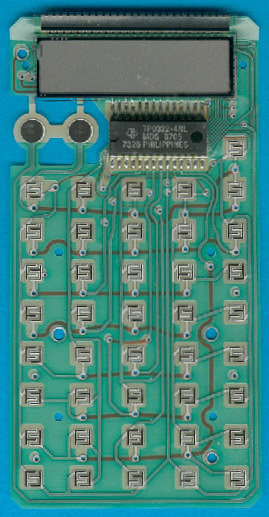

The flexible printed circuit board (PCB) of the second generation BA-II
looks very familiar to us.
