Additional Pictures

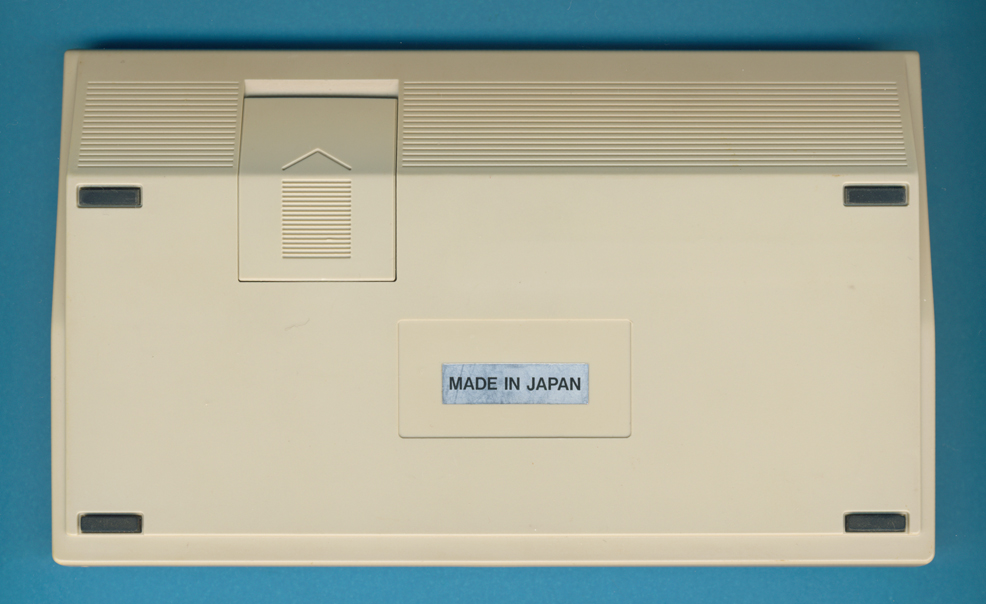

| This early TI-52
Prototype
was manufactured in April 1985 by Toshiba in
Japan.
|

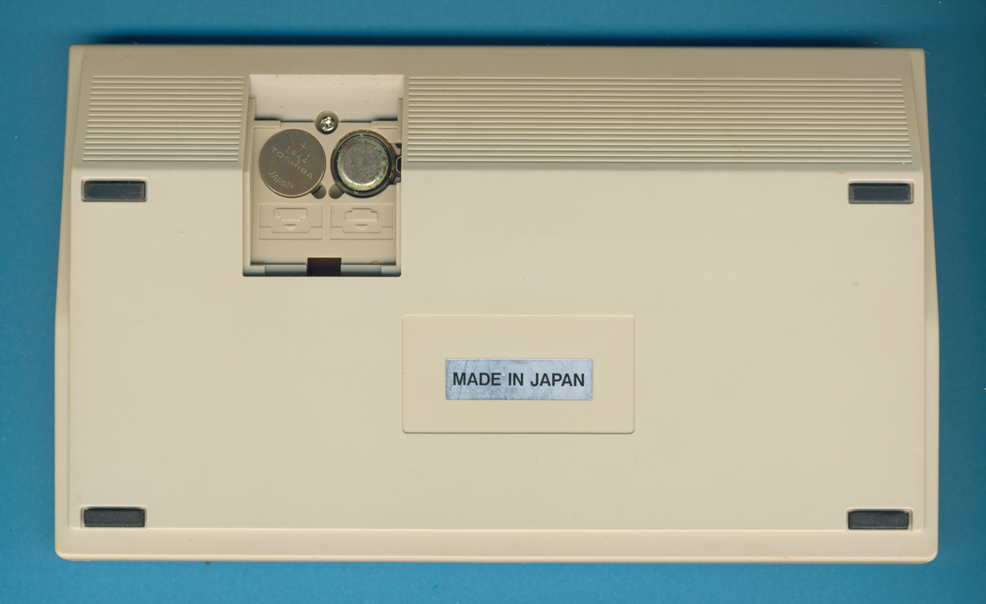

The
battery holder of this early TI-52 Prototype is identical with the
TI-30 Galaxy. |

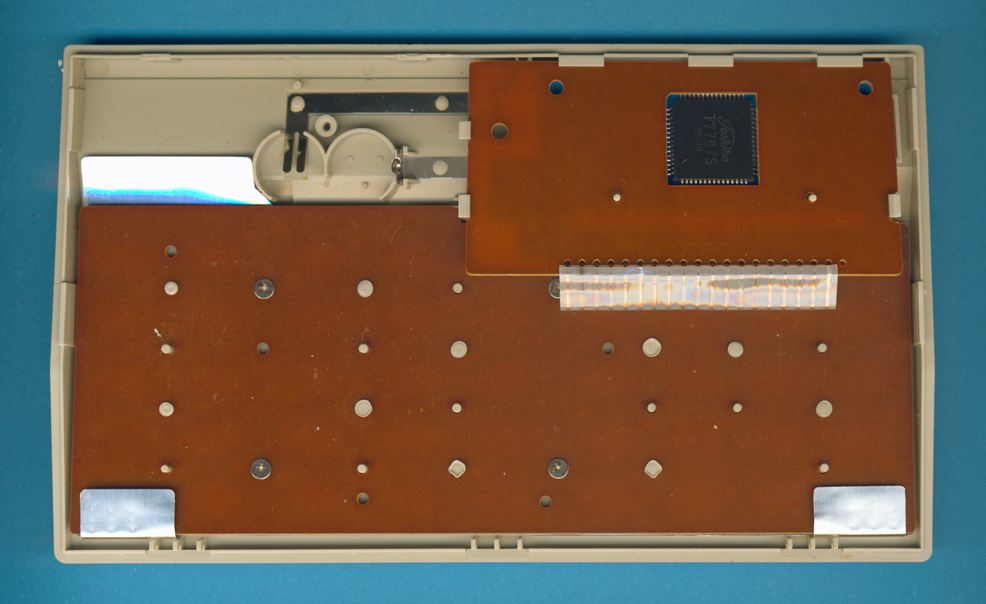

| The first design of the
TI-52 makes use of two printed circuit boards
(PCB's). The smaller PCB accommodates the single-chip calculator circuit, the display and the battery contacts. The larger one just the keyboard.
|
Close-up view of the Toshiba T7767S single-chip calculator
circuit. |
