Additional Pictures

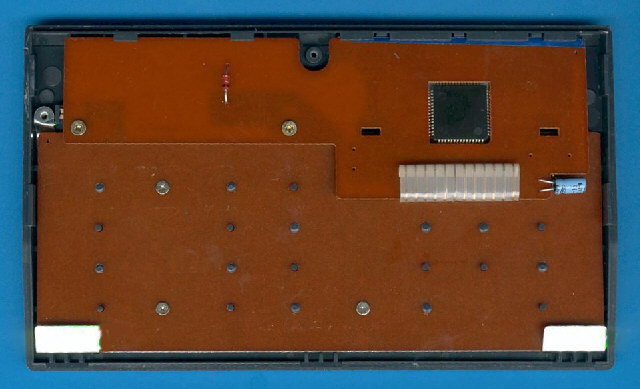

The printed circuit board (PCB) of the TI-30 Galaxy SLR looks different to the other members
of the TI-30 Galaxy family. Think about the internal construction of a TI-52 with the batteries
replaced by the solar cell panel.

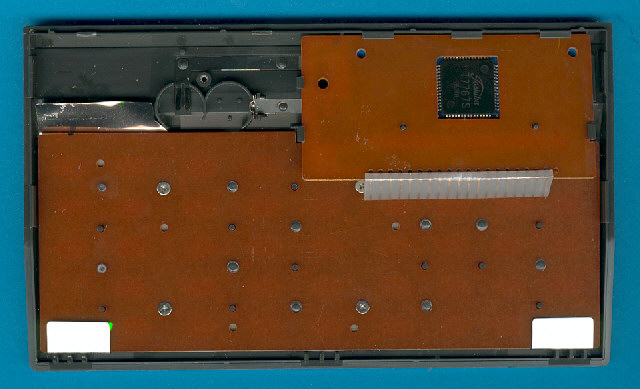

The printed circuit board (PCB) of a TI-52 for reference.


If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, September 2, 2004. No reprints without written permission.
