Additional Pictures

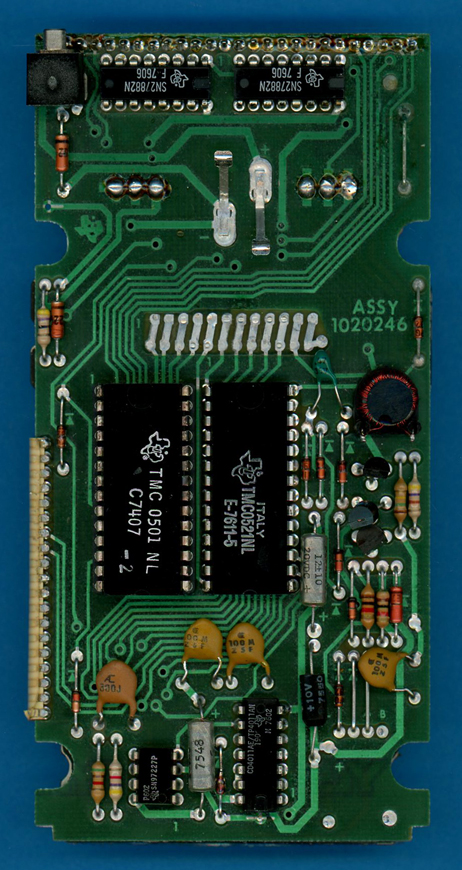

| The Main printed circuit
board (PCB) of the modified SR-50A calculator with a TMC0501 Arithmetic Chip from an early SR-50.
|
|
Close-up
view of the TMC0501 Arithmetic Chip from an SR-50 and the TMC0521 SCOM Chip from an SR-50A.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, August 31, 2023. No reprints without written permission.
