Additional Pictures
| This
Unisonic Model 1040-1
was
manufactured in December 1977 in Taiwan.
|
The Unisonic Model 1040-1 calculator
is powered by four AAA-size batteries. |
| The Unisonic Model 1040-1 with its
front cover removed.
|
| The printed circuit board
(PCB) of the Unisonic Model 1040-1 calculator is centered around a TMS1044 single-chip calculator circuit.
|

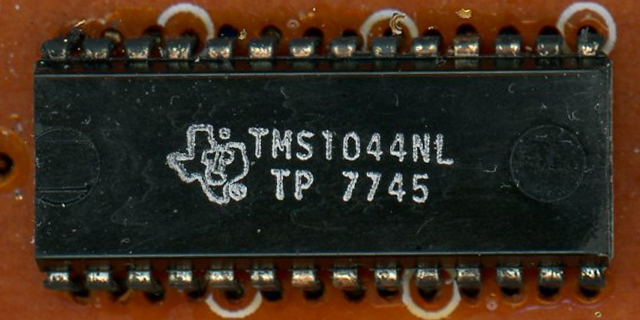

| The
Close-up
view of the TMS1044 single-chip calculator circuit.
|
| The Close-up
view of the FUTABA 9-ST-08A Vacuum Fluorescent Display (VFD).
|
