Additional Pictures

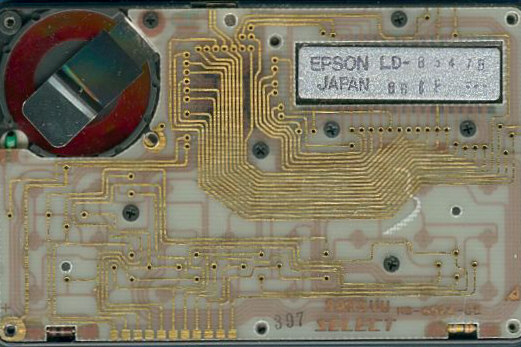

Printed circuit board (PCB) of the Toshiba LC-851 using
only few very thin components.

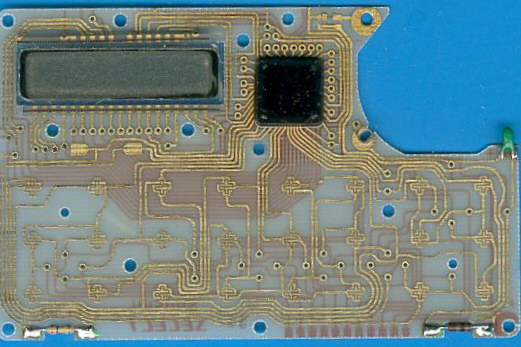

The single-chip calculator circuit of the Toshiba LC-851 is directly
attached and bonded to the printed circuit board.

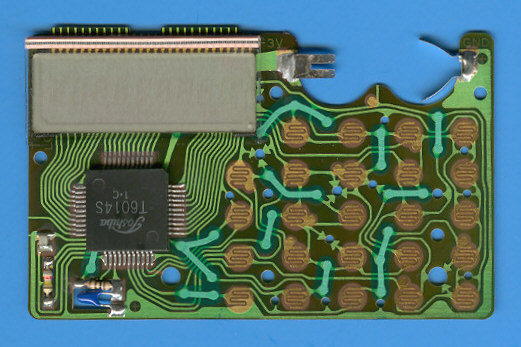

The later Toshiba LC-866 makes use of a traditional
housing for its T6014S calculator brain.


If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, February 27, 2004. No reprints without written permission.
