Additional Pictures

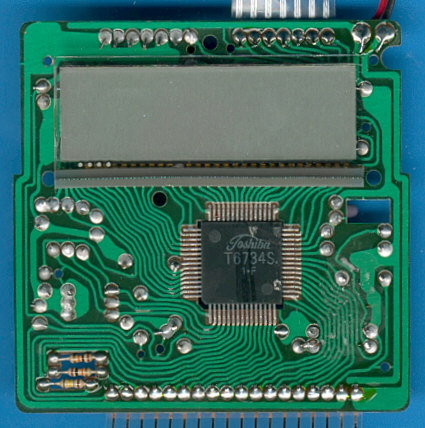

| Printed circuit board
(PCB) of the Toshiba LC-1028PV. The original T6734S chip was manufactured in 1981.
|

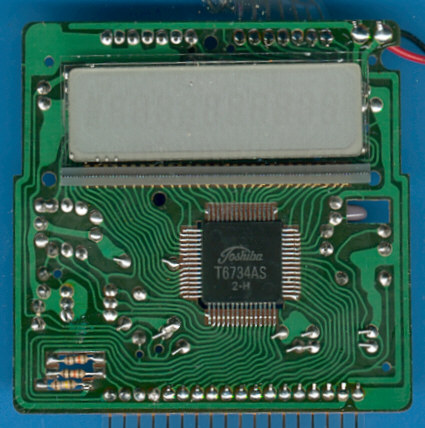

Printed circuit board of the Texas Instruments
TI-5010. The revised T6734AS chip was manufactured in 1982.
|

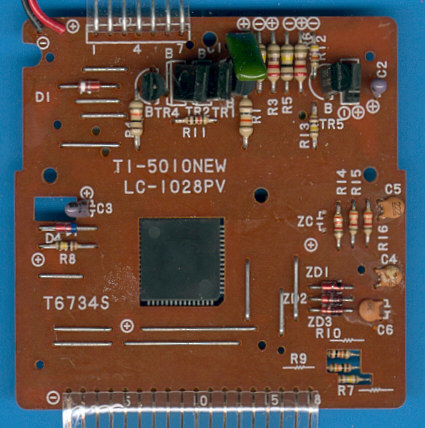

| The component side of
the LC-1028PV states: TI-5010 NEW / LC-1028PV.
|

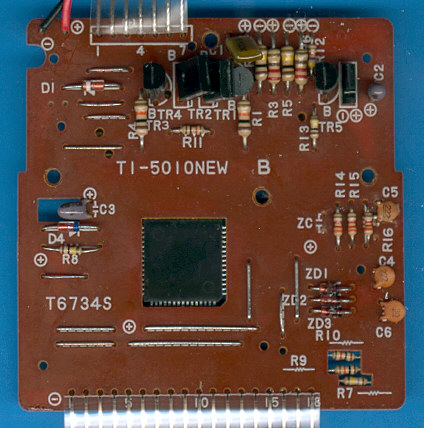

The component side of
the TI-5010 states: TI-5010 NEW (Revision) B.
|
| The label
on the backside of the TI-5010 indicates with its layout the manufacturer Toshiba.
|

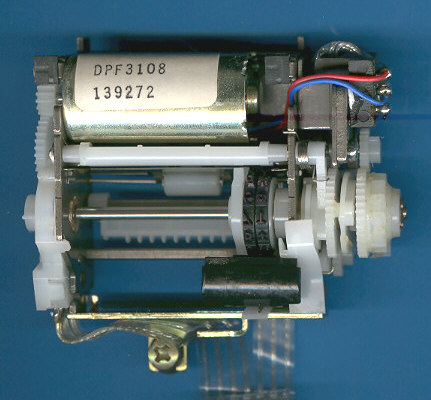

The printer
mechanism of the TI-5010 is well engineering but still cheap in manufacturing costs.
|
