Additional Pictures
| This Toshiba BC-8111B
was
manufactured in January 1980 in Taiwan.
|
The Toshiba BC-8111B calculator

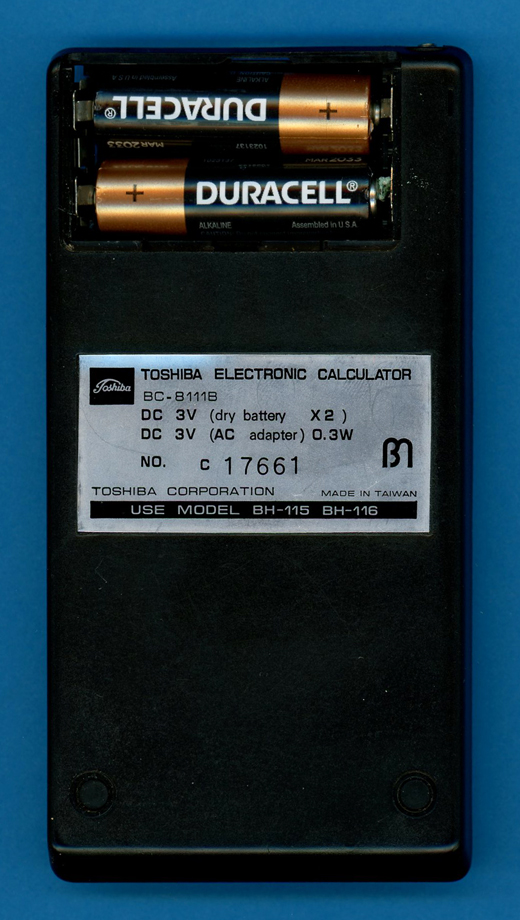

is powered by two AA-size batteries. |

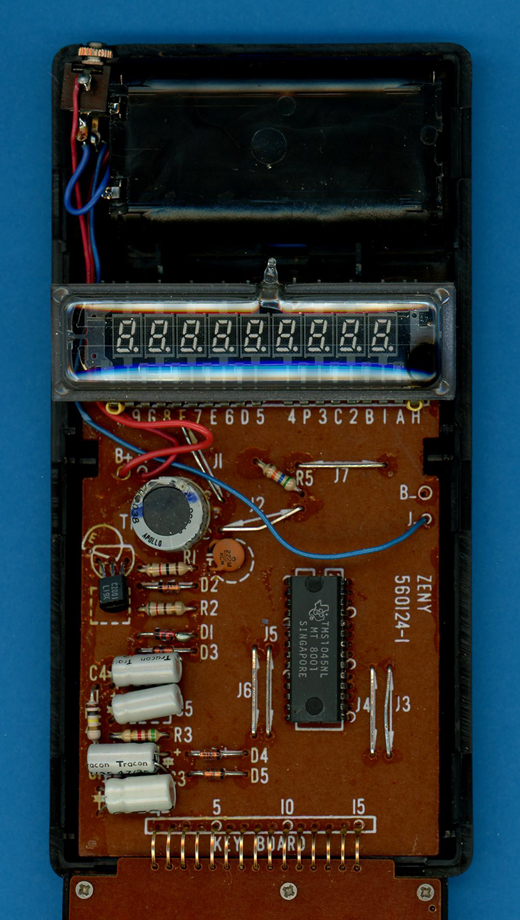

| The printed circuit board
(PCB) of the Toshiba BC-8111B calculator is centered around a TMS1045 single-chip calculator circuit.
|
|

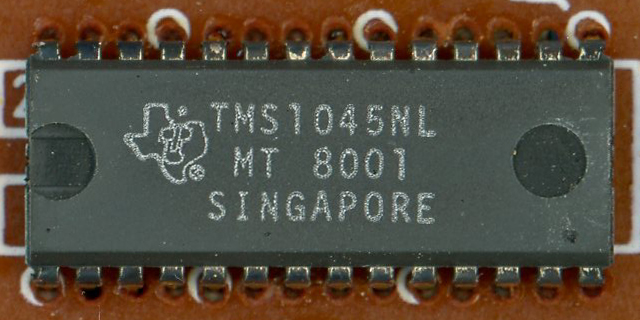

Close-up
view of the TMS1045 single-chip calculator circuit.
|
|

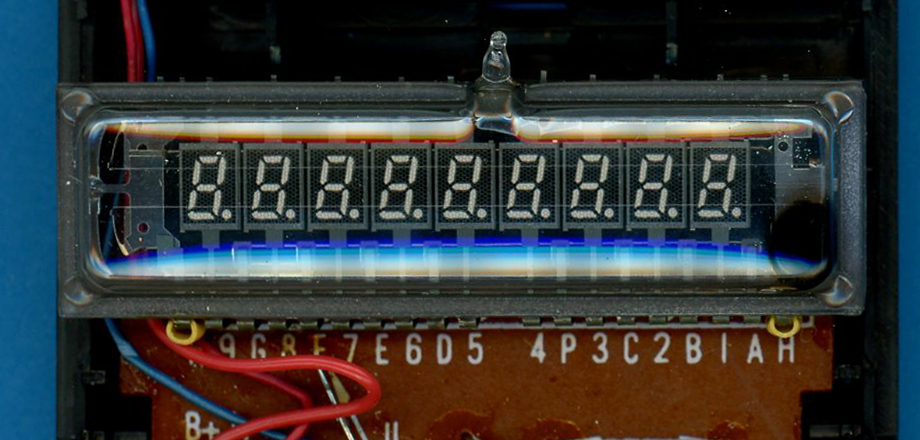

Close-up
view of the FUTABA 9-ST-08A Vacuum Fluorescent Display (VFD).
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, January 9, 2023. No reprints without written permission.
