Additional Pictures

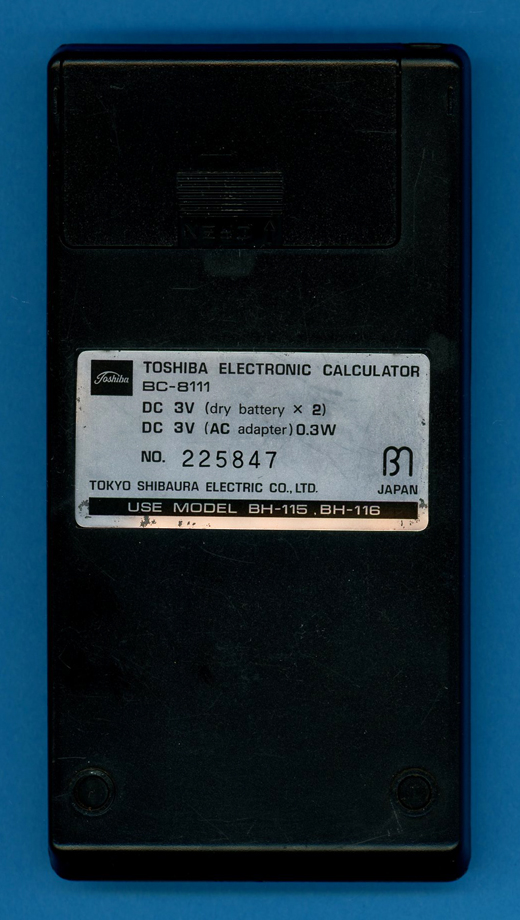

This Toshiba BC-8111 was manufactured in 1977 in Japan.

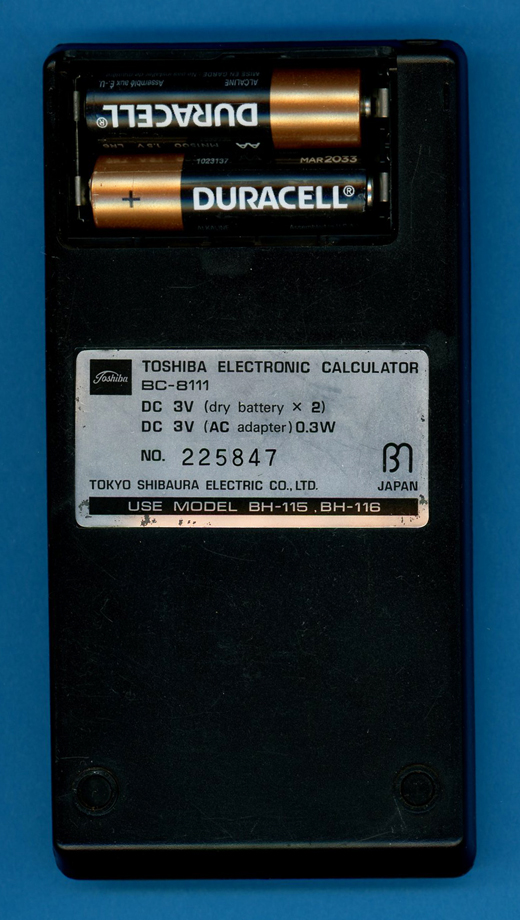

The Toshiba BC-8111 calculator is powered by two AA-size batteries.

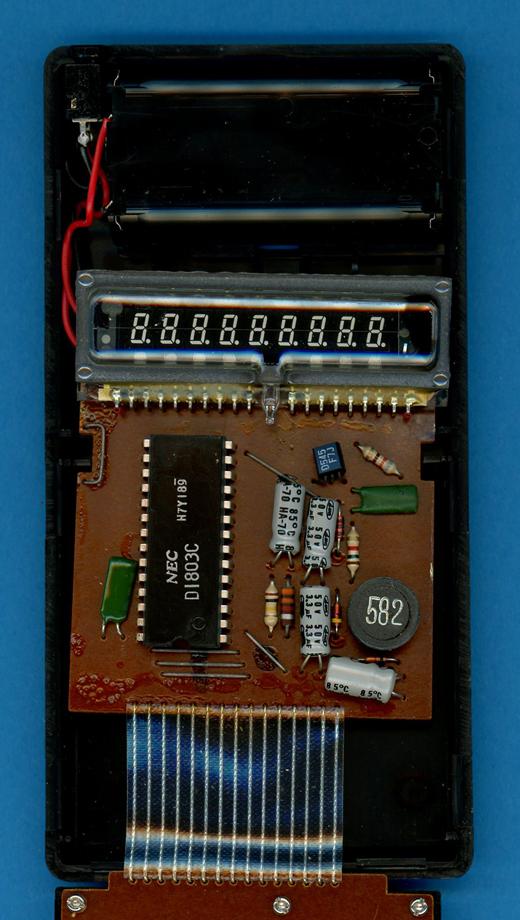

The printed circuit board (PCB) of the Toshiba BC-8111 calculator is centered
around a uPD1803C single-chip calculator circuit.

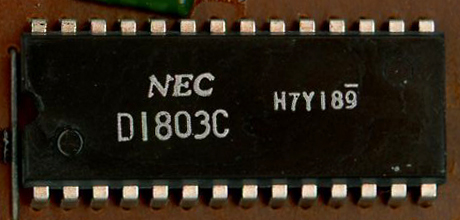

The Close-up view of the NEC uPD1803C single-chip calculator circuit.

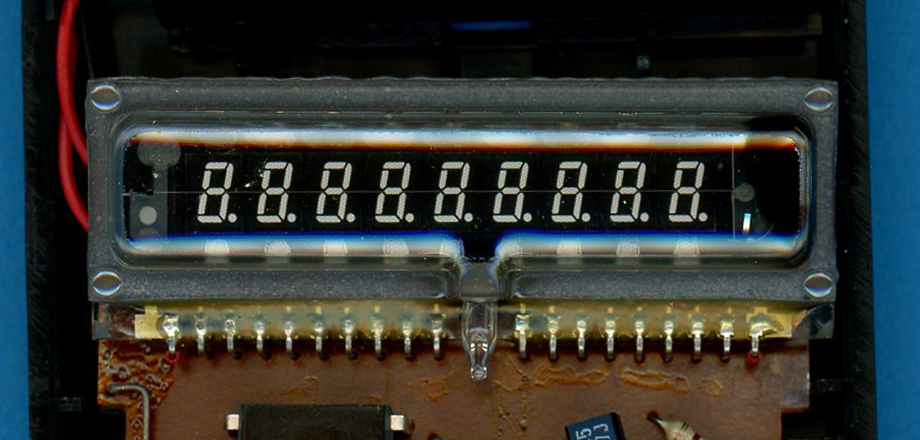

The Close-up view of the ITRON FG95B6 Vacuum Fluorescent Display (VFD).
