Additional Pictures

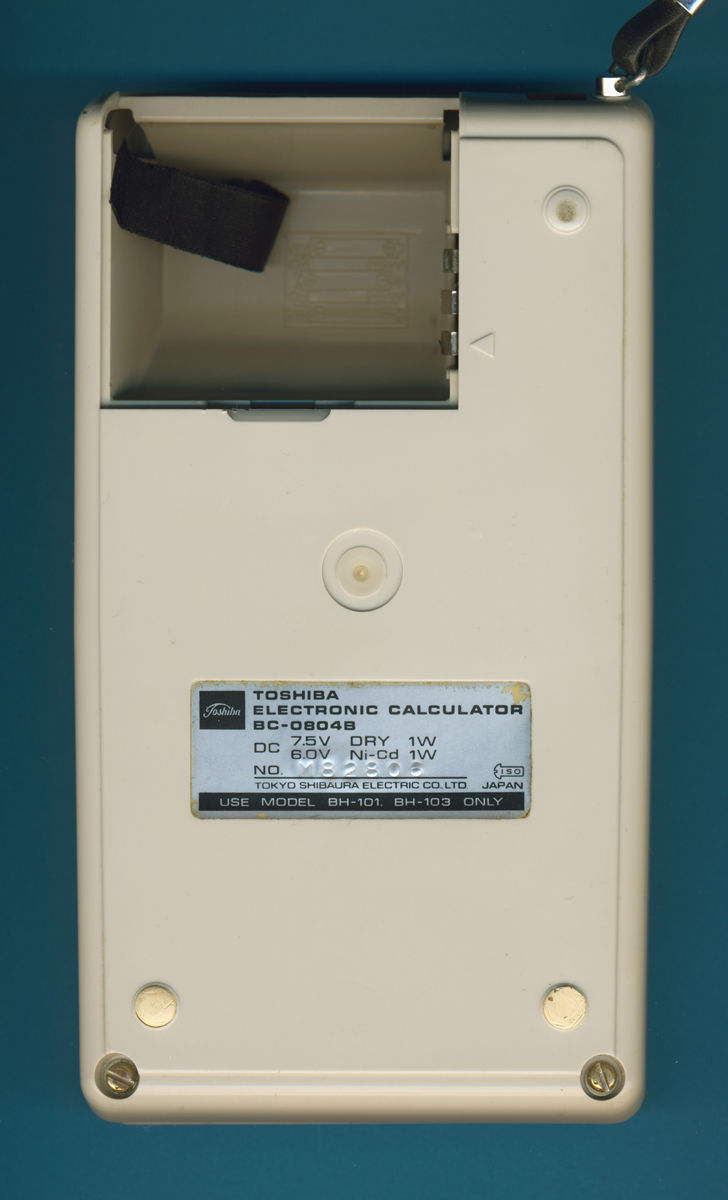

This Toshiba BC-0804B calculator was manufactured in Japan.

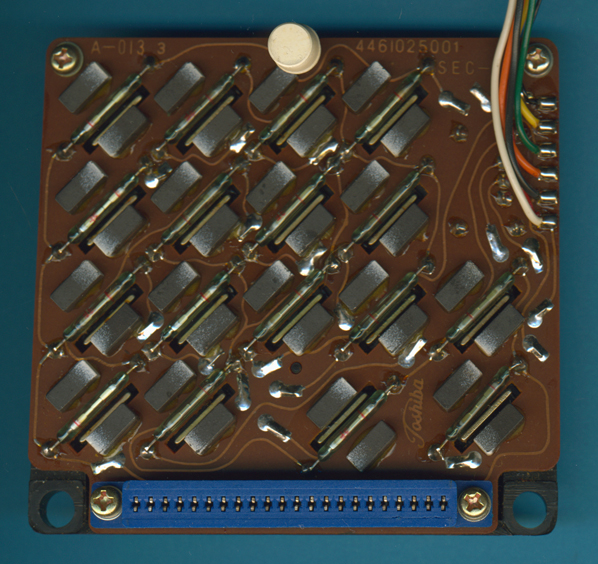

The keyboard assembly of the BC-0804B uses a reliable construction with small
magnets and Reed-contacts on a printed circuit board (PCB).

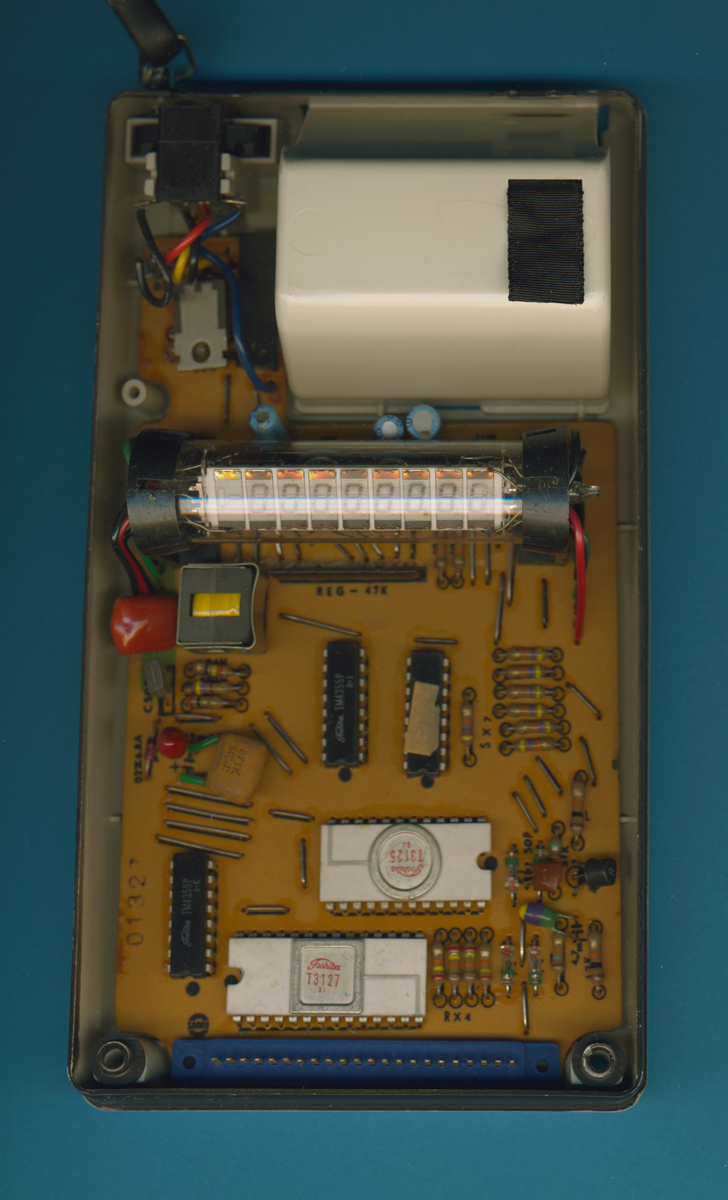

The printed circuit board (PCB) of the Toshiba BC-0804B
is centered around a Toshiba T3125 / T3127 calculator chip-set.

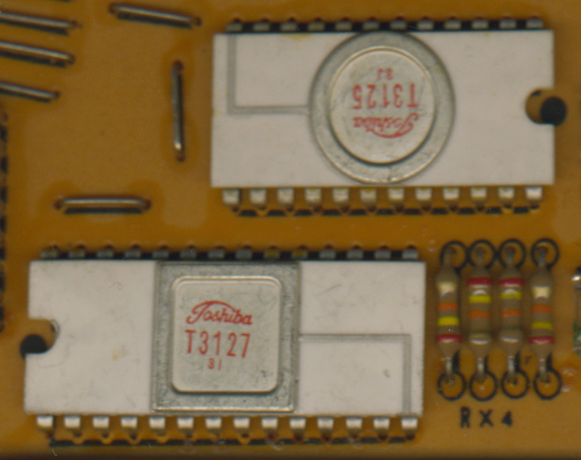

Close-up view of the Toshiba T3125 / T3127 calculator chip-set.
