Additional Pictures
| The Educator TI-73
Explorer calculator in its package.
|

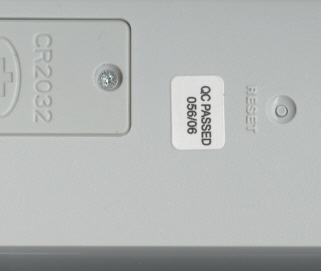

| The label
of the Educator TI-73 Explorer calculator.
|

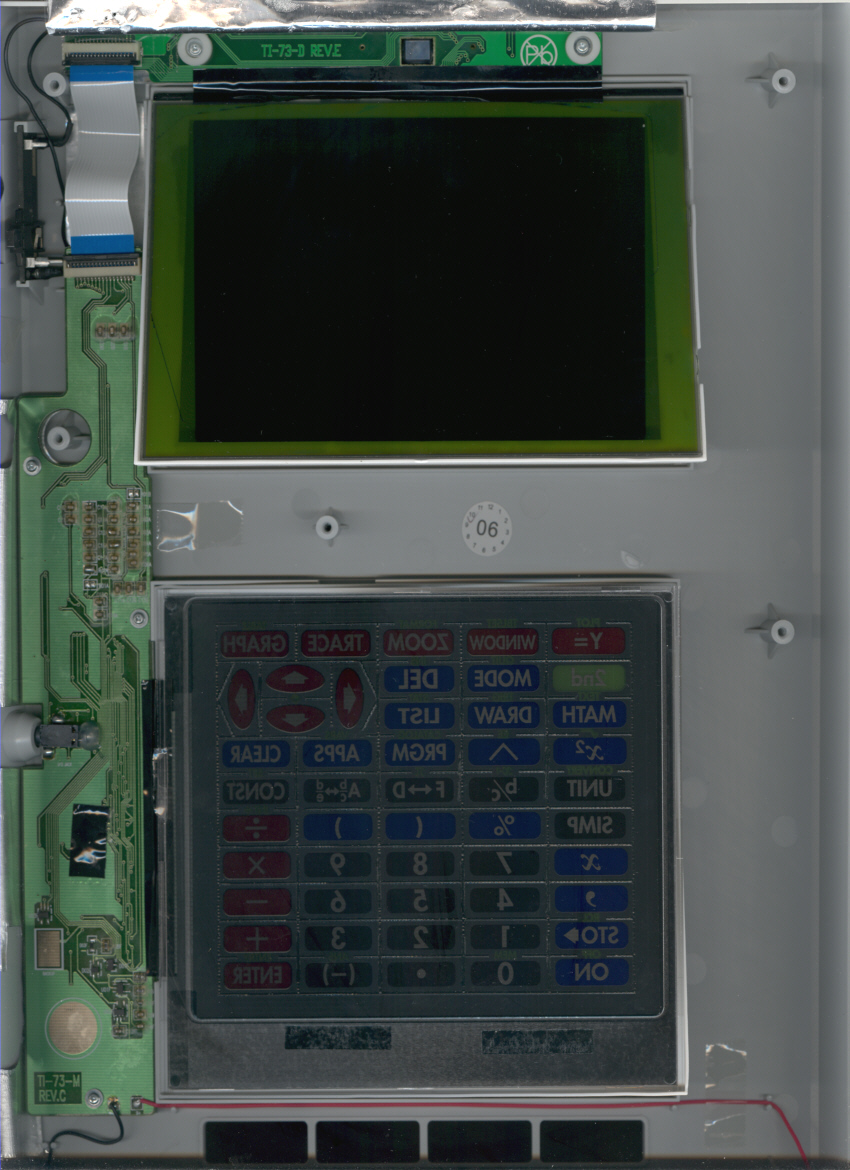

| The internal
construction of the Educator TI-73 Explorer makes use of two connected printed circuit boards (PCB) for the dot-matrix display resp. the keyboard assembly.
|

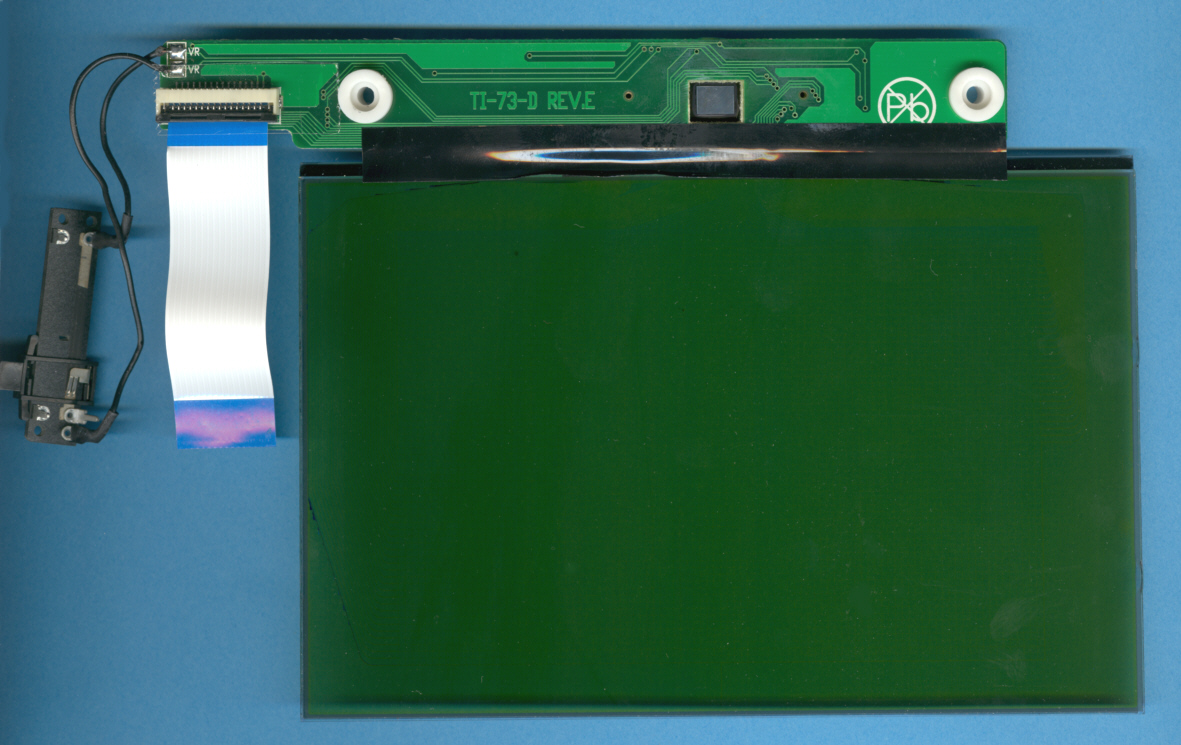

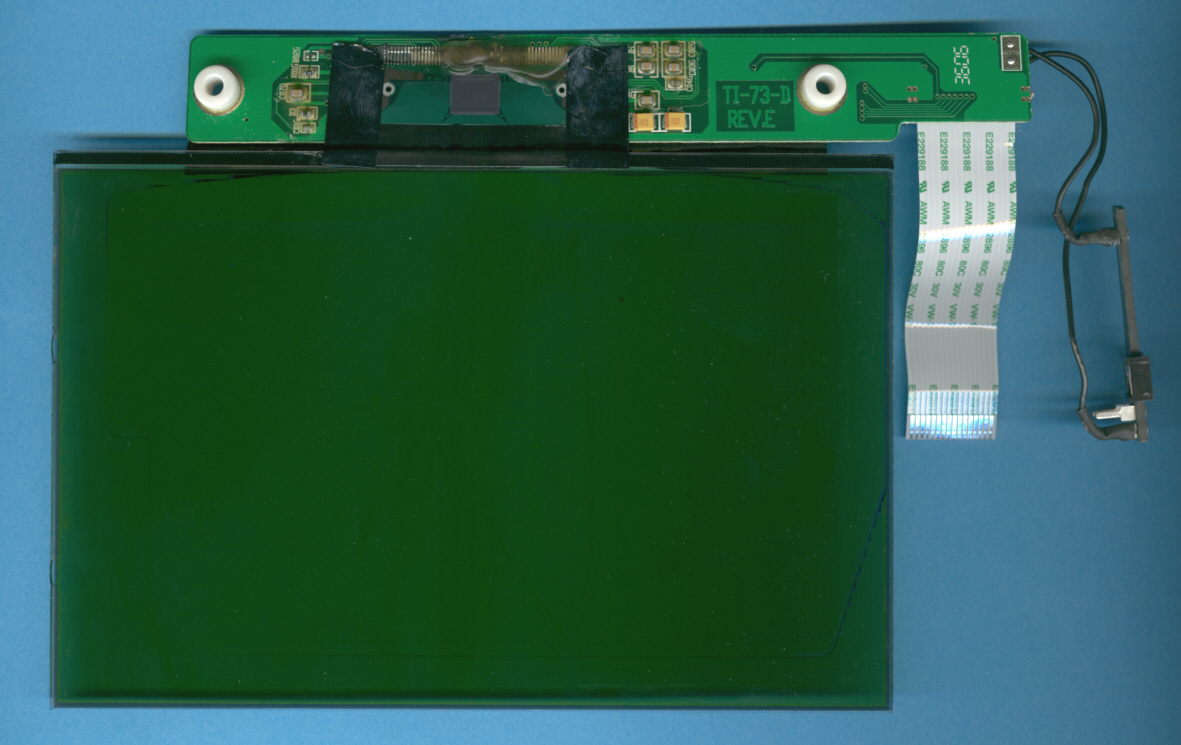

| The PCB connected to the
dot-matrix display makes use of just one display
driver mounted on a small, flexible PCB.
|

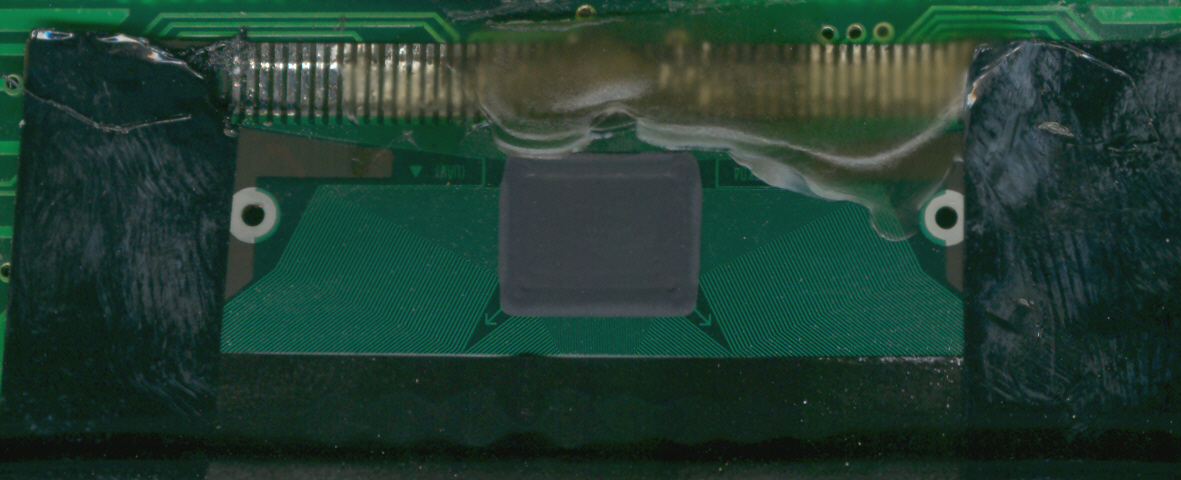

| The close-up image of the
display driver reveals its genes: A Toshiba T6K04
single-chip driver for dot matrix displays with up to 128 columns and 64 rows mounted on a tape carrier package.
|

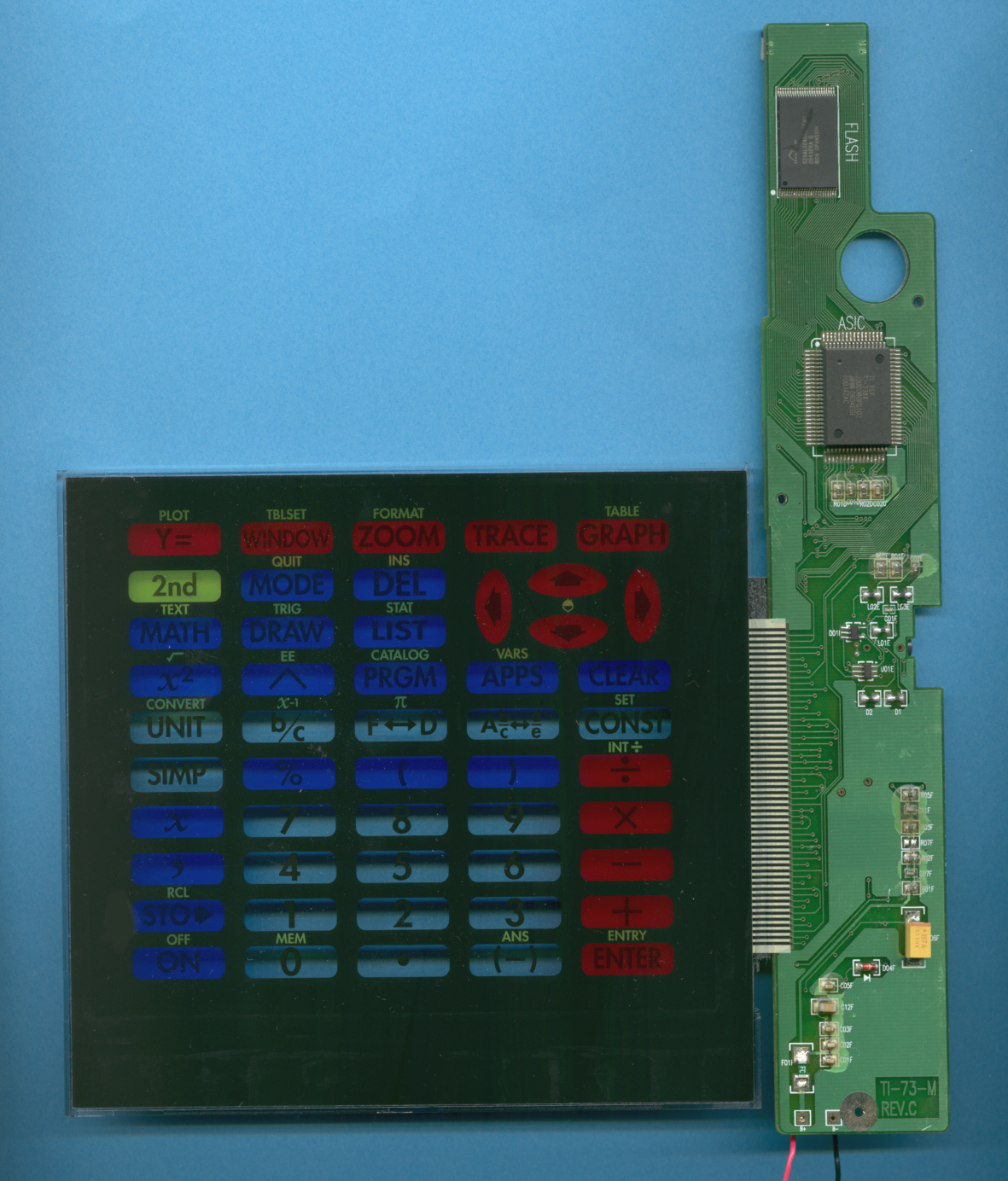

| The PCB connected to the keyboard
sports just an ASIC (Application Specific Integrated Circuit) and the
Flash-ROM.
|

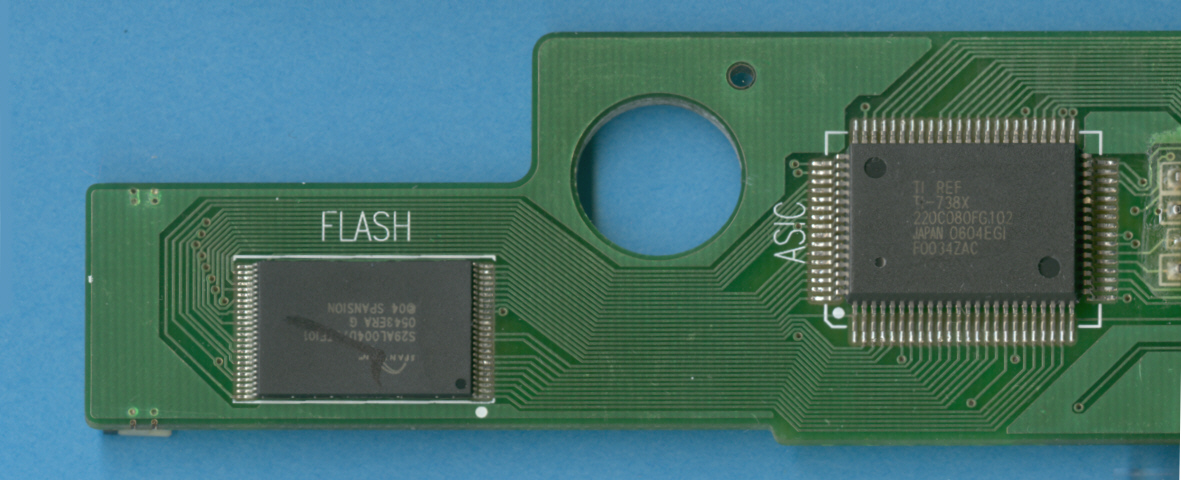

| A close-up image of the
TI-738X ASIC and the Spansion S29AL004 Flash-ROM.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, November 21, 2007. No reprints without written permission.
