Additional Pictures
The
sales box of the Sharp PC1401 sold around 1984 in the US.![]() |
|

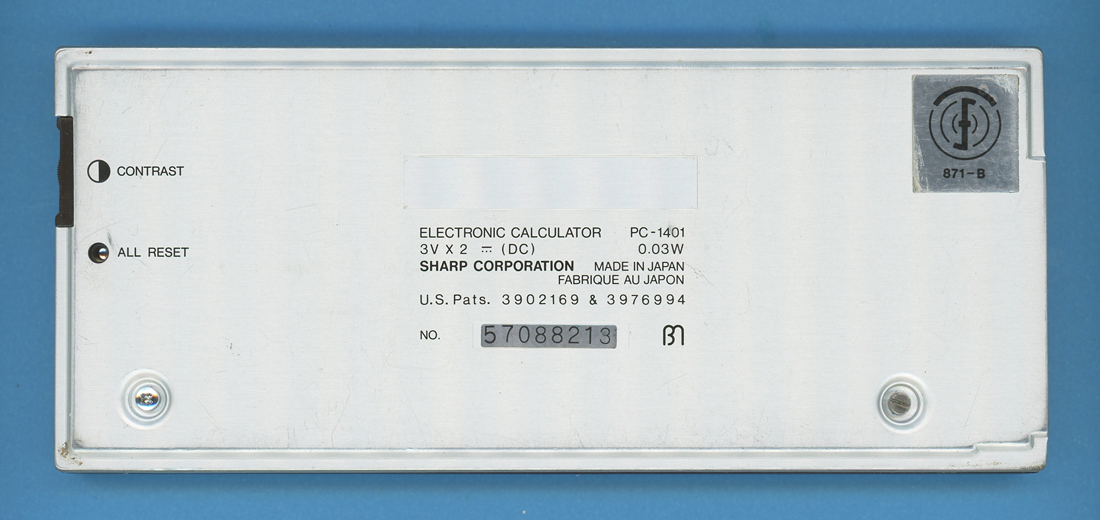

This Sharp PC-1401 Pocket Computer was manufactured in June 1984 by Sharp Corporation in Japan. |
|

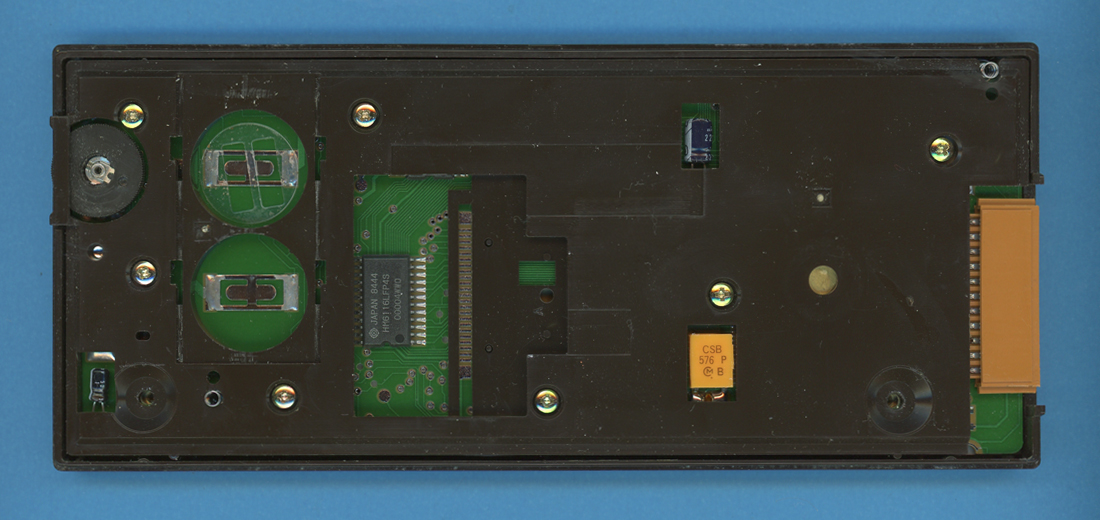

The Sharp PC-1401 Pocket
Computer features an internal expansion slot for additional memory
and is powered by two CR2032 batteries.![]() |
|

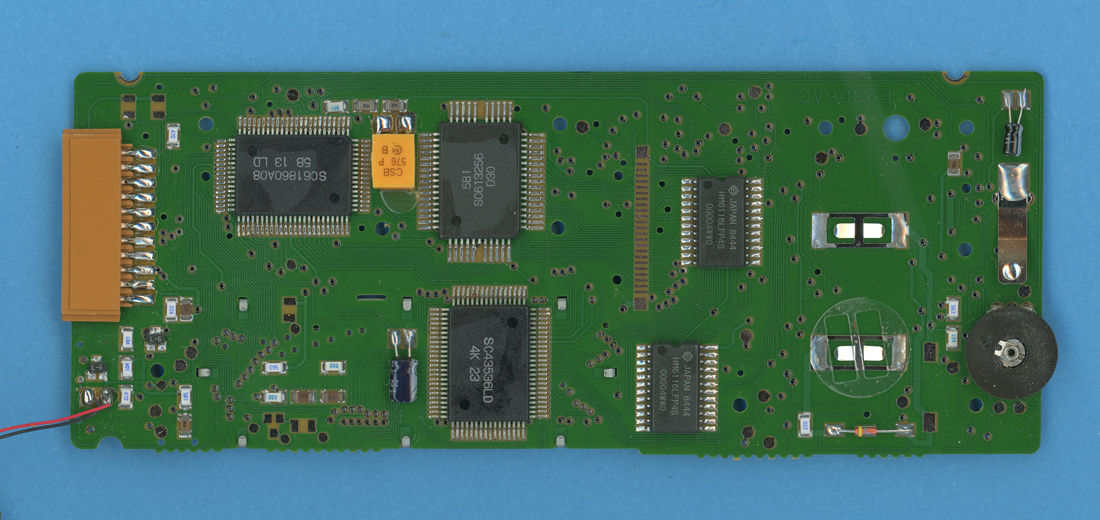

The printed circuit board (PCB) of the Sharp PC-1401 is
centered around a 4-bit SC61860A microcontroller, ROM, two RAM chips and a
display driver.![]() ![]() |
|

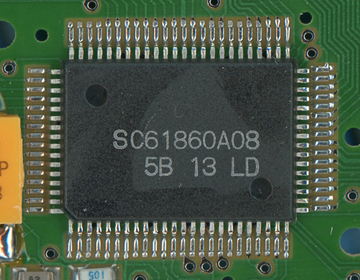

Close-up
view of the SC61860 microcontroller.
|

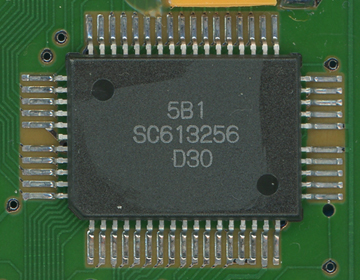

Close-up
view of the.SC613256 ROM.![]() |
Close-up
view of the HM6116LP RAM.
|

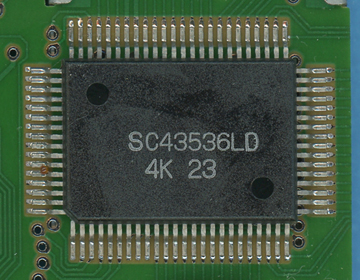

Close-up
view of the SC43536 Display Driver.![]() |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, January 23, 2021. No reprints without written permission.
