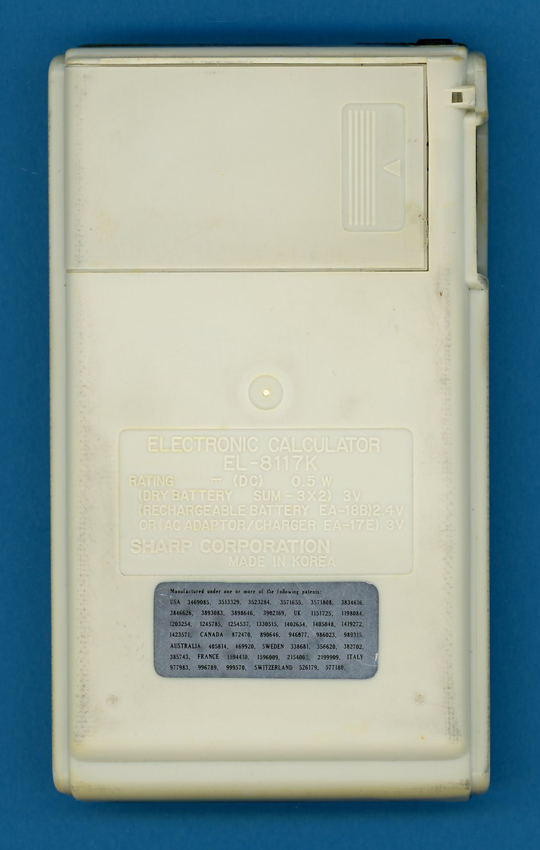

| This Sharp EL-8117K
was
manufactured in February 1977 in Korea.
|

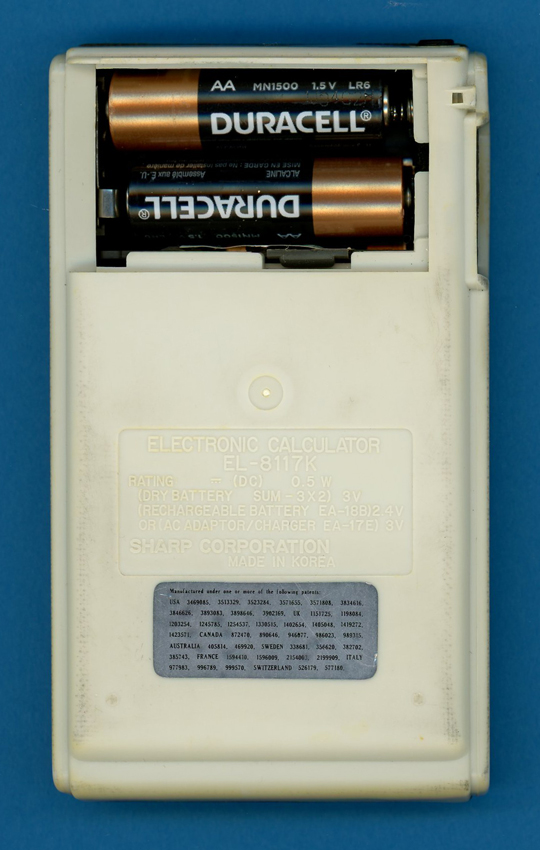

The Sharp EL-8117K calculator
is powered by two AA-size batteries.  |

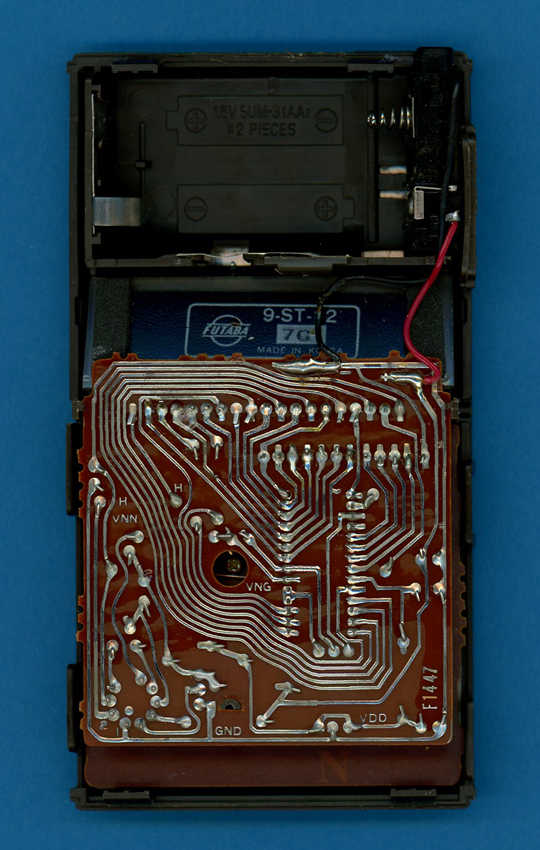

| The Sharp EL-8117K with its
rear cover removed. .
|

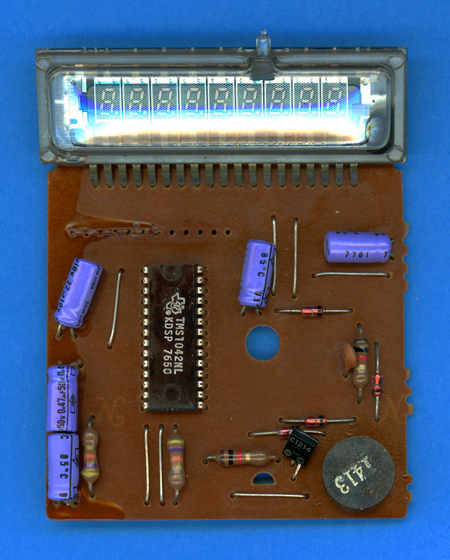

| The printed circuit board (PCB) of the
Sharp EL-8117K calculator is centered around a TMS1042 single-chip calculator circuit.
|

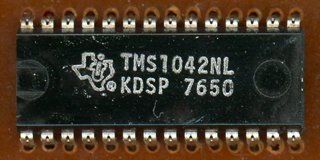

| The
Close-up
view of the TMS1042 single-chip calculator circuit.
|

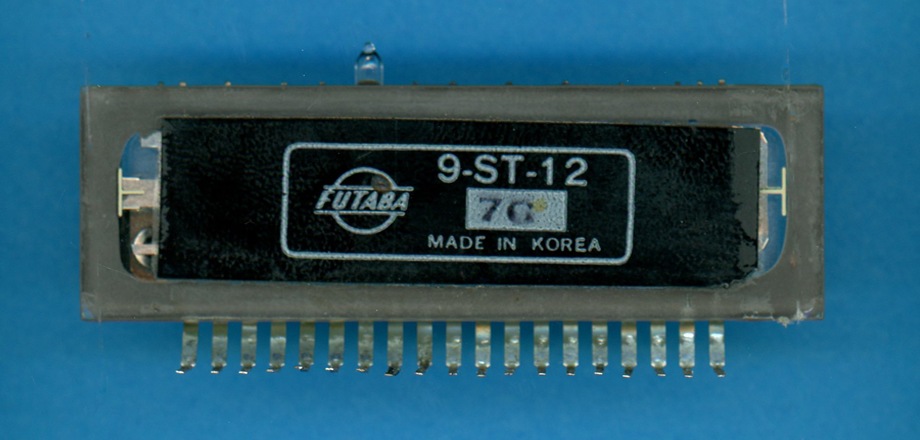

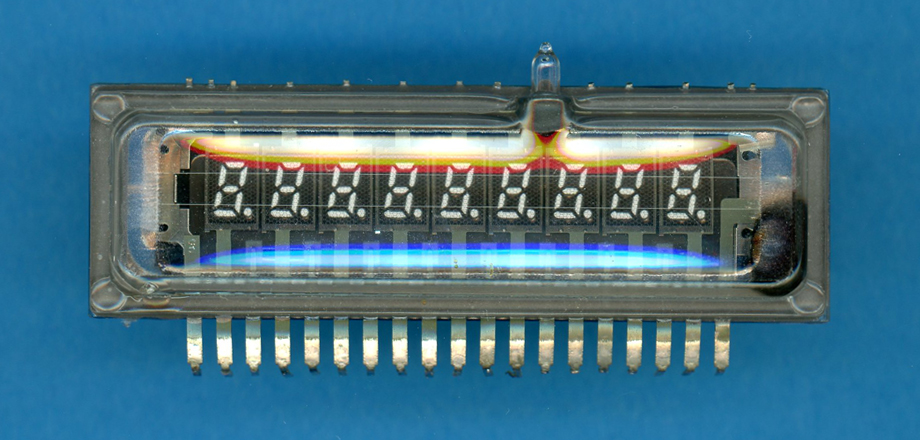

| The
Close-up
view of the FUTABA 9-ST-12 Vacuum Fluorescent Display (VFD).
|
