Additional Pictures

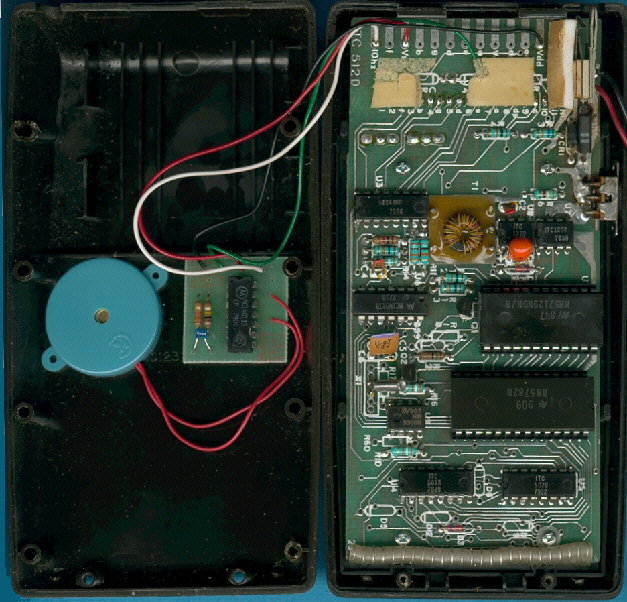

The printed circuit board (PCB) of the navtronic 1701 with six IC's:
National Semiconductor MM5782, MM57129, MM5368 and
(unknown manufacturer) ITC1200, ITC1210, ITC4800, 2*ITC5028.
