Additional Pictures

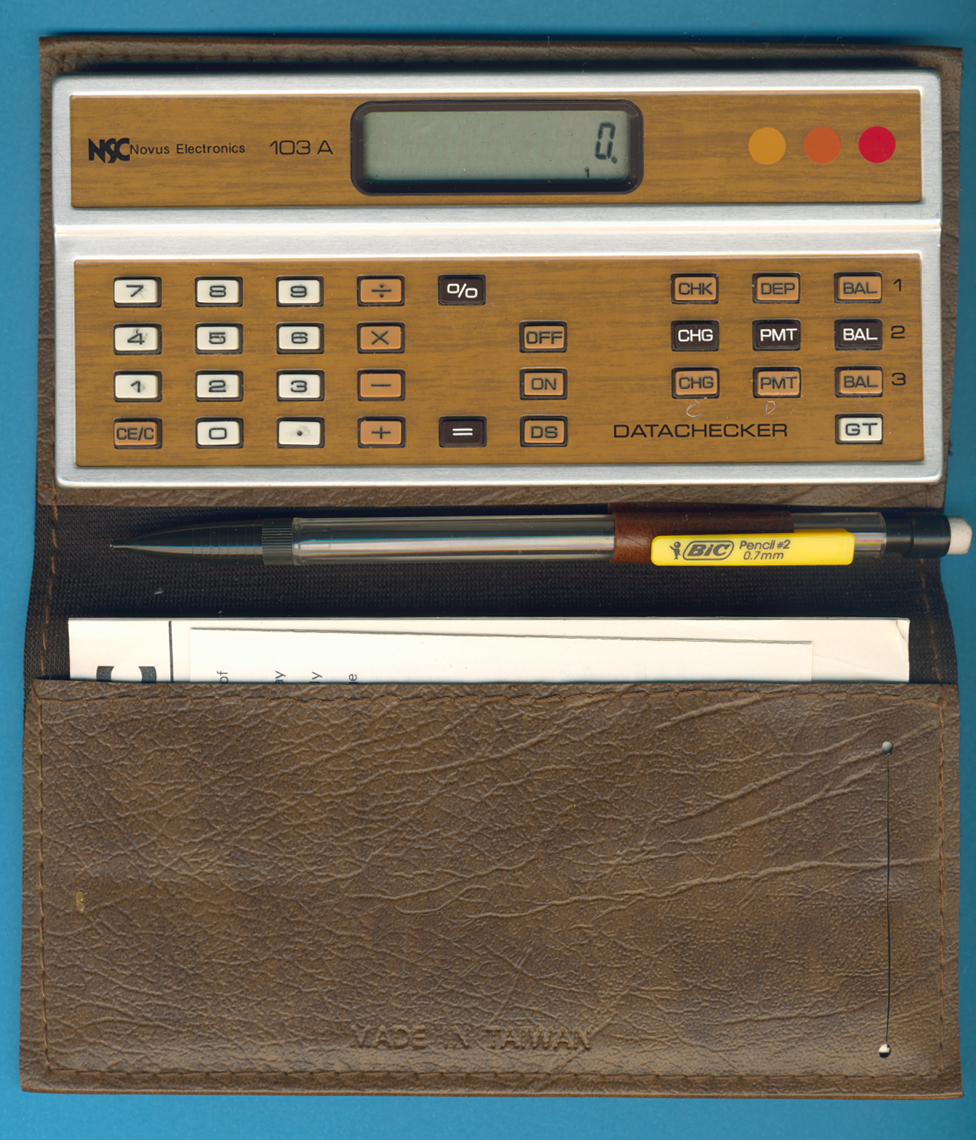

| The NSC Novus Electronics NS103A
Data Checker in its
sleeve with holder for a checkbook and pen.
|
|
| This
NSC Novus Electronics NS103A Data Checker calculator
was
manufactured in February 1982 in Taiwan.
|
|
The NSC Novus Electronics NS103A Data
Checker calculator

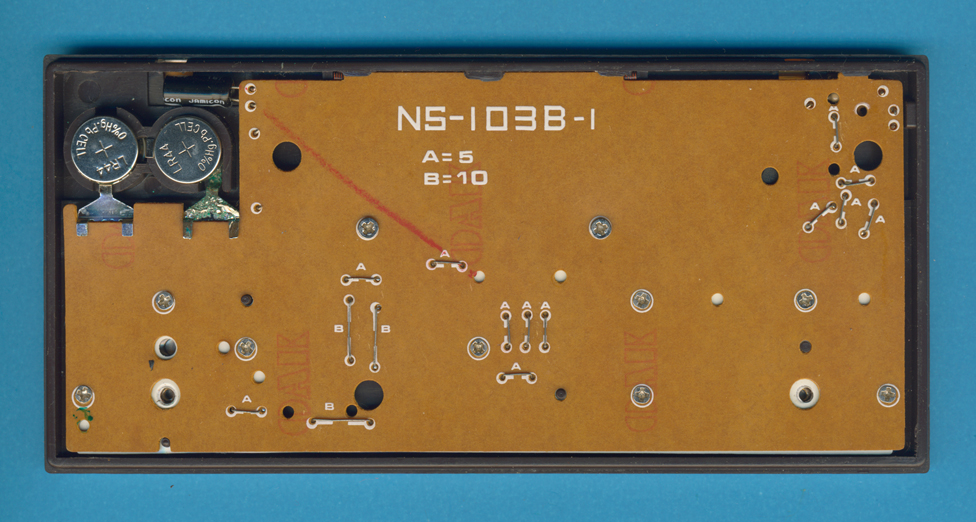

is powered by two LR44 batteries. |
|

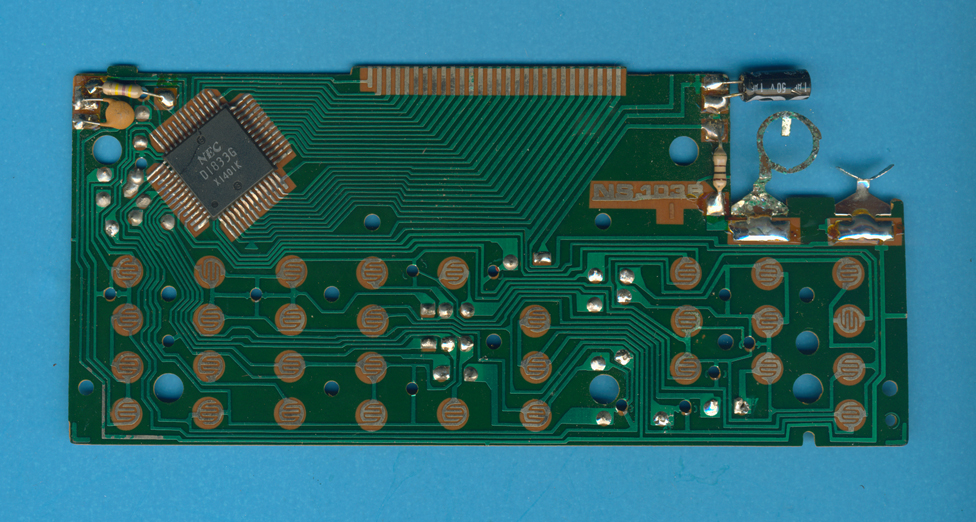

| The printed circuit board
(PCB) of the NSC Novus Electronics NS103A Data Checker calculator is centered around a NEC uPD1833G single-chip calculator circuit.
|
|

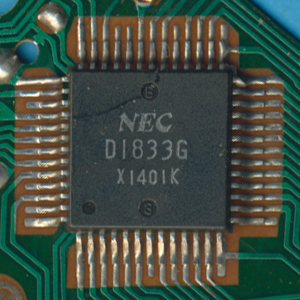

| Close-up
view of the NEC uPD1833G single-chip calculator
circuit.
|

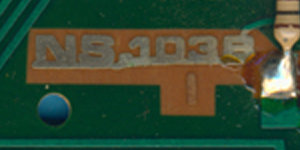

Close-up view of the PCB-Mark of the NS103A. |
