Additional Pictures
The sales
box of the National Semiconductor NS103A Data Checker sold around 1982
in the US. |
|
| The National Semiconductor NS103A
Data Checker in its
sleeve with holder for a checkbook and pen.
|
|

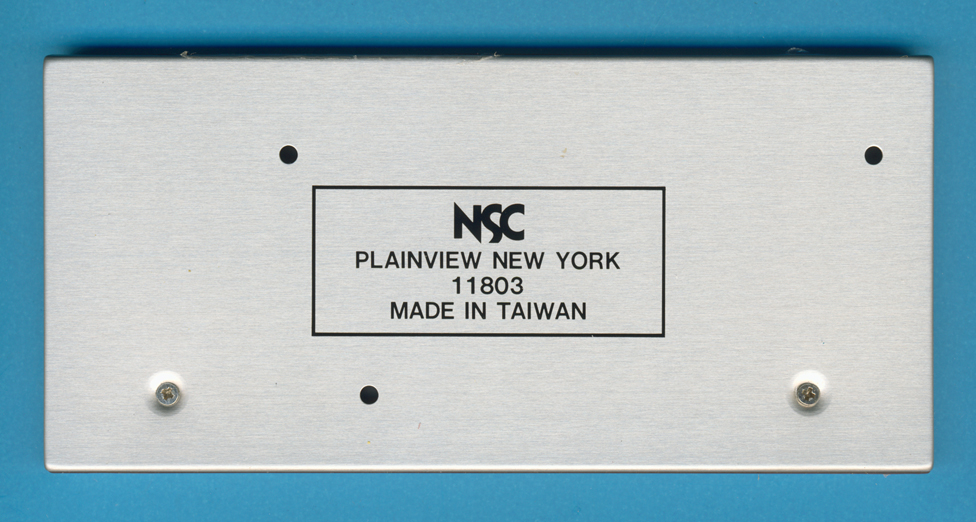

| This
National Semiconductor NS103A Data Checker calculator
was

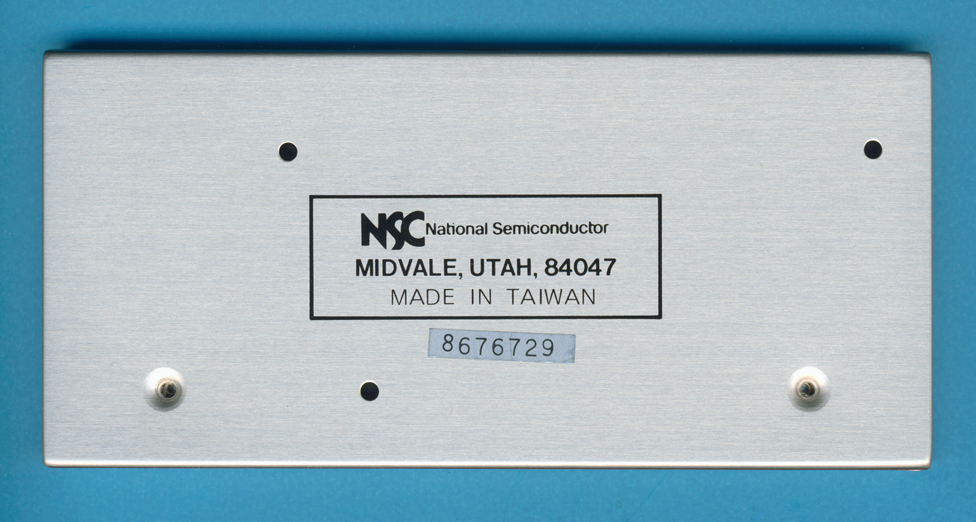

manufactured in November 1981 in Taiwan. The label of a NS103A manufactured earlier is pictured below.
|
|

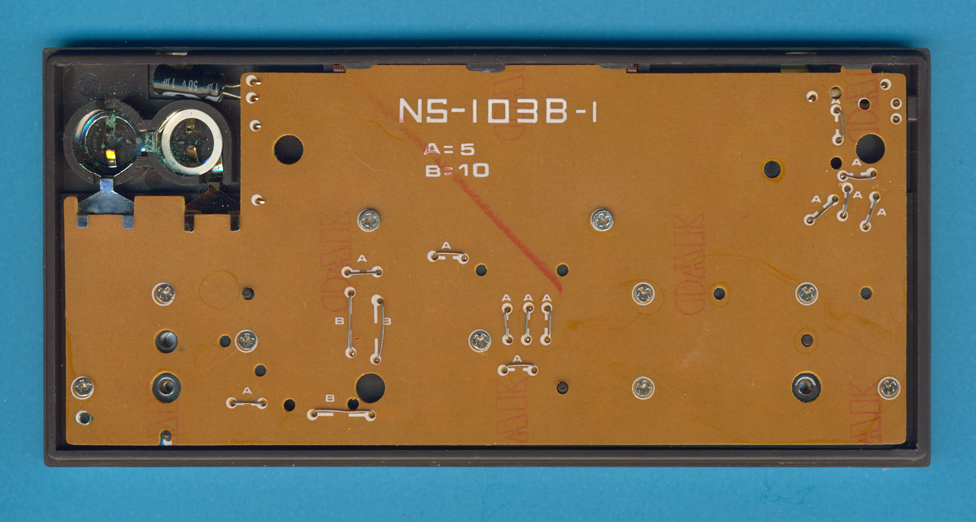

The National Semiconductor NS103A Data
Checker calculator
is powered by two LR44 batteries. |
|

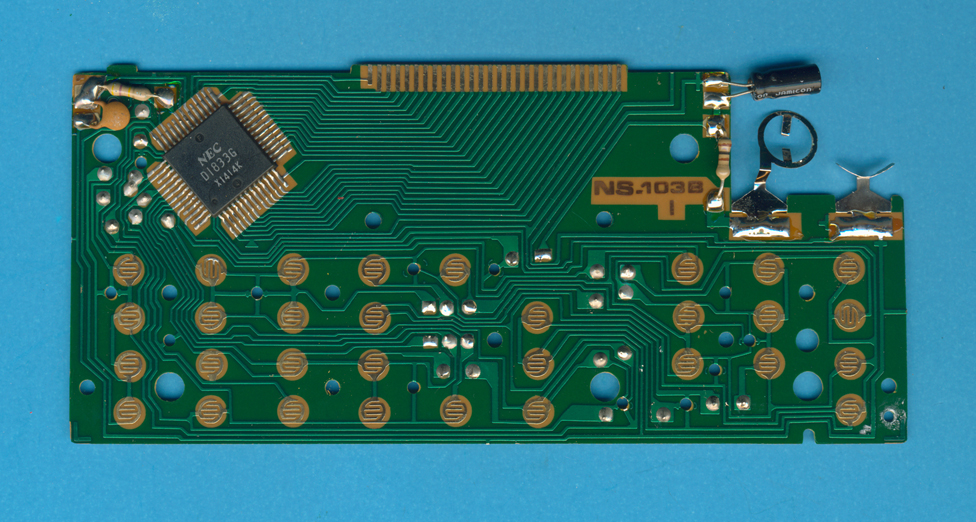

| The printed circuit board
(PCB) of the National Semiconductor NS103A Data Checker calculator is centered around a NEC uPD1833G single-chip calculator circuit.
|
|

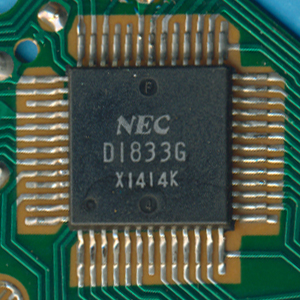

| Close-up
view of the NEC uPD1833G single-chip calculator
circuit.
|

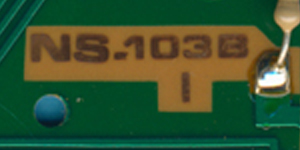

Close-up view of the PCB-Mark of the NS103A. |
