Additional Pictures

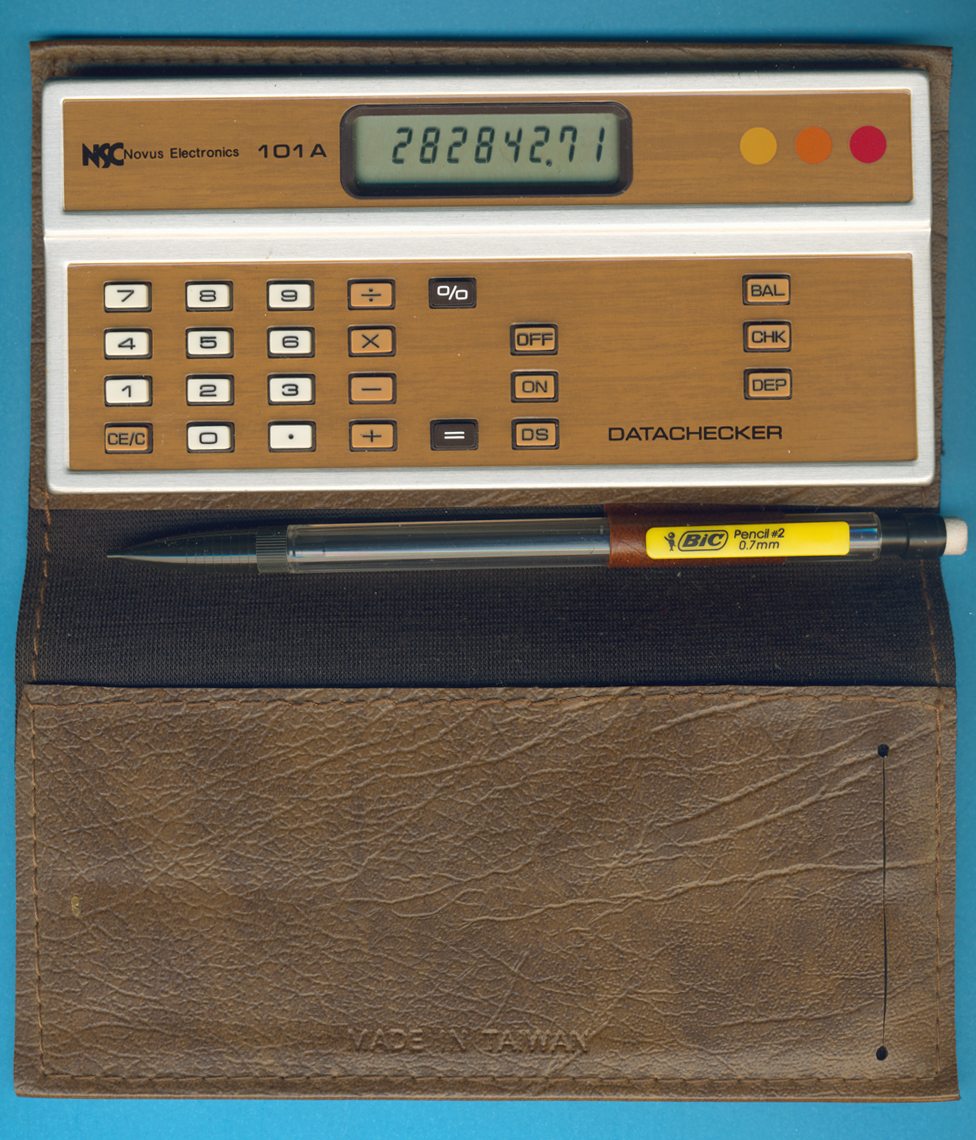

| The NSC Novus Electronics NS101A Data
Checker in its
sleeve with holder for a checkbook, credit cards and pen.
|
|
| This
NSC Novus Electronics NS101A Data Checker calculator
was
manufactured in 1981 in Taiwan.
|
|

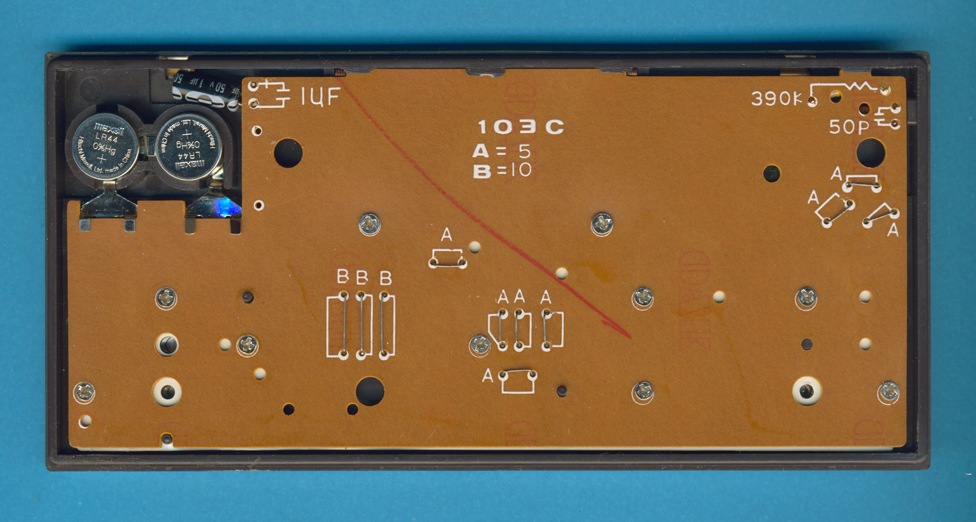

The NSC Novus Electronics NS101A
Data Checker calculator is powered by two LR44 batteries. |
|

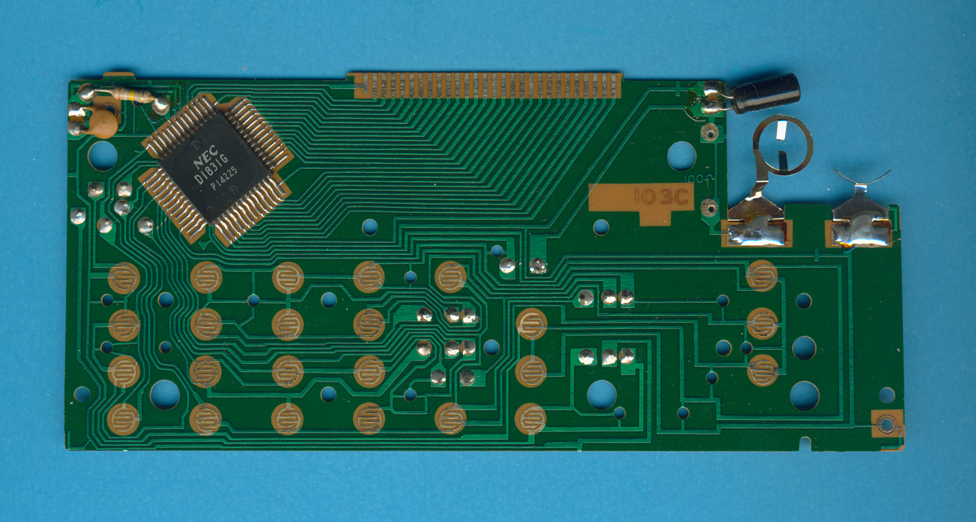

| The printed circuit board
(PCB) of the NSC Novus Electronics NS101A Data Checker calculator is centered around a NEC uPD1831G single-chip calculator circuit.
|
|

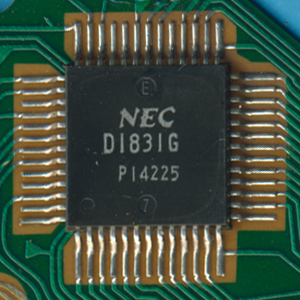

| Close-up
view of the NEC uPD1831G single-chip calculator
circuit.
|

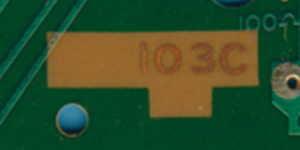

Close-up view of the PCB-Mark of the NS101. |
