Additional Pictures
| The sleek
shape of the original Checkmate.
|

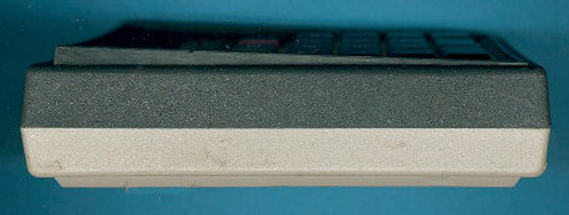

The sleek
shape of the Checkmate 1002.
|
| The dismantled
Checkmate with the Litronix display modules, discrete display drivers and an early Litronix LIT-019 calculator circuit.
|

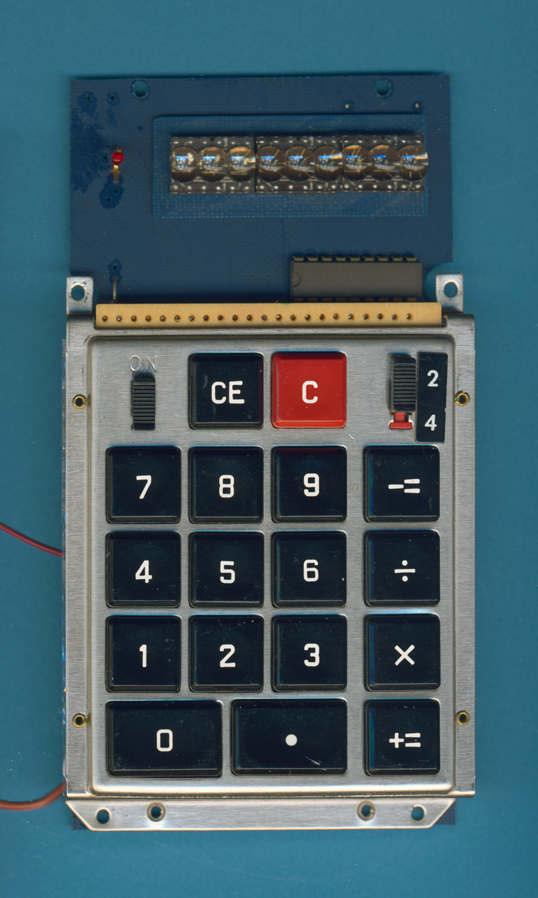

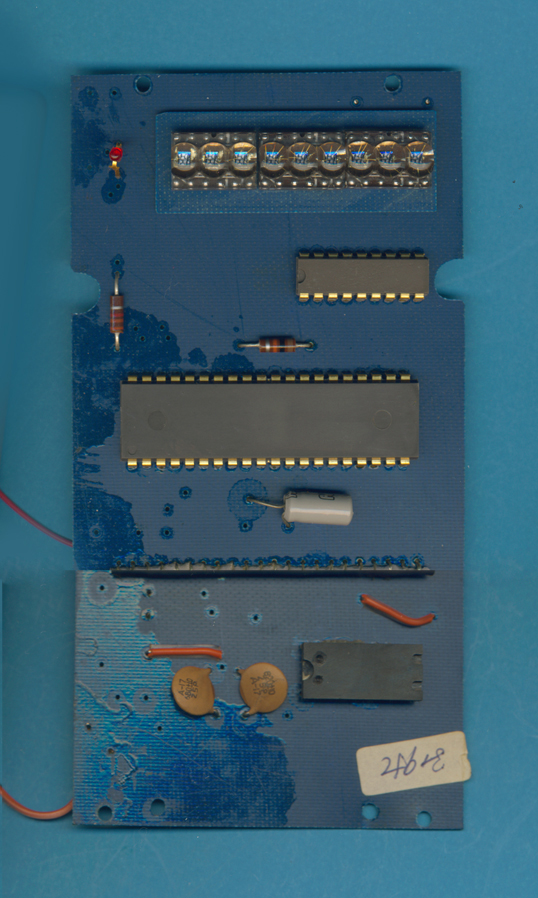

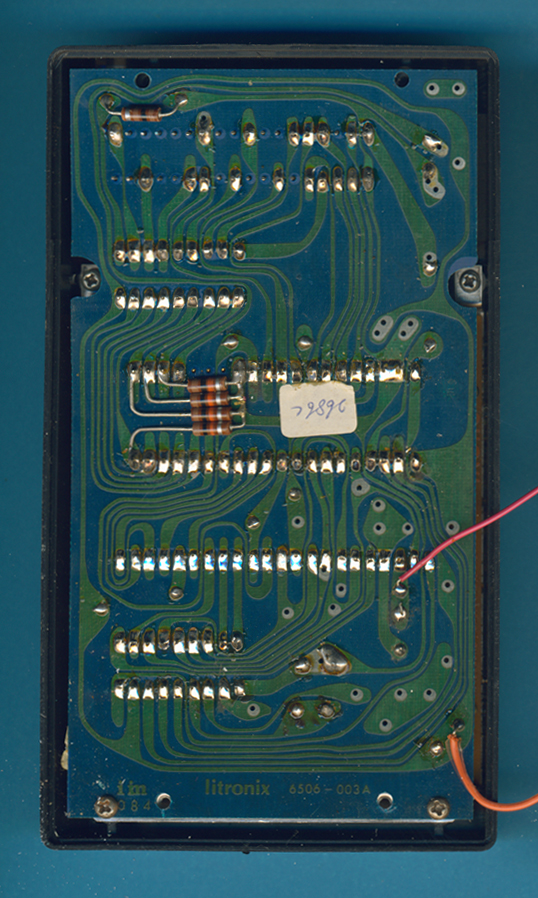

The dismantled
Checkmate 1002 with the Litronix display modules, an unusual display-driver and a unknown calculator circuit.
|

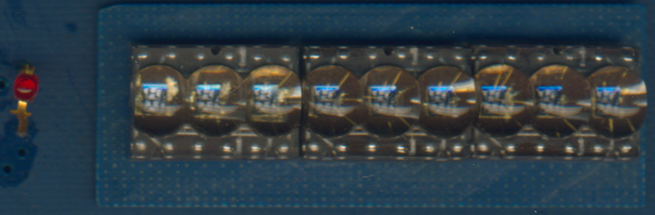

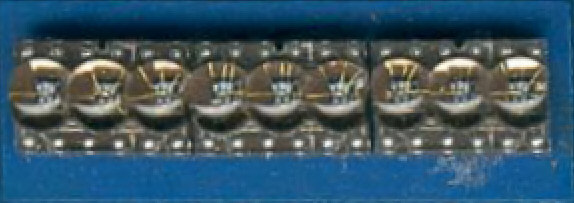

| Three display
modules with the 7-segment LED displays and small plastic magnification lenses manufactured by Litronix.
|
|
| The label
on the backside of the Checkmate explains the 12 digits calculating capacity.
|
|
