| This Heathkit IC-2100 was
sold in March 1975 as a kit to a hobbyist in the US and serviced by the Heath Company on January 19, 1976.
|

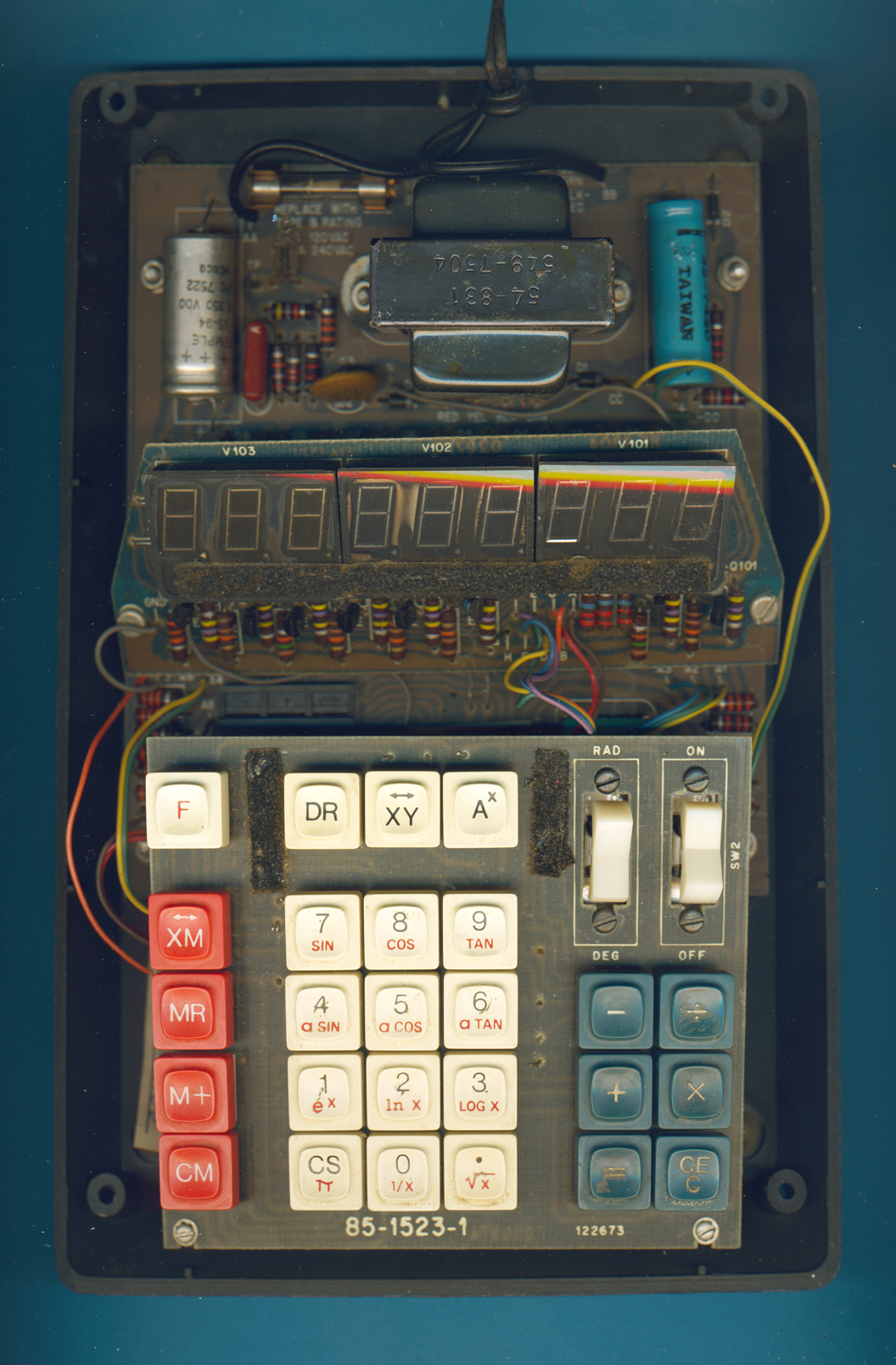

| The printed circuit board
(PCB) of the Heathkit IC-2100 is centered around the Rockwell A4001PC single-chip calculator circuit hiding under the keyboard.
|

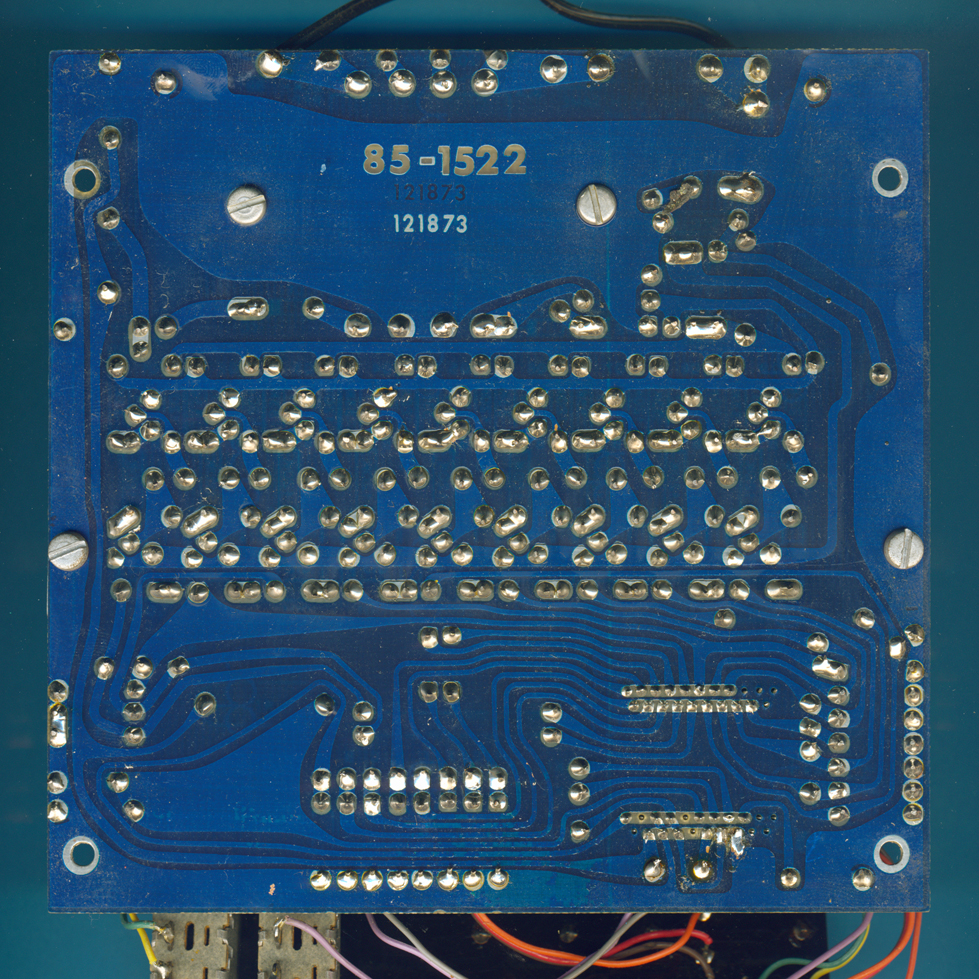

| The
backside of the PCB reveals the 42-pin quad in-line package (QIP)
of the Rockwell A4001PC chip.
|
|

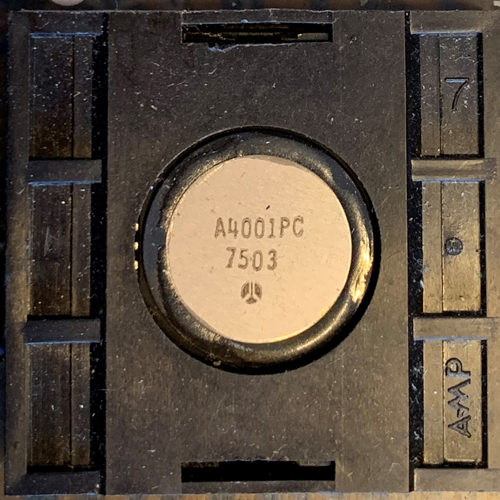

Close-up
view of the Rockwell A4001PC single-chip calculator circuit in its socket.
|
