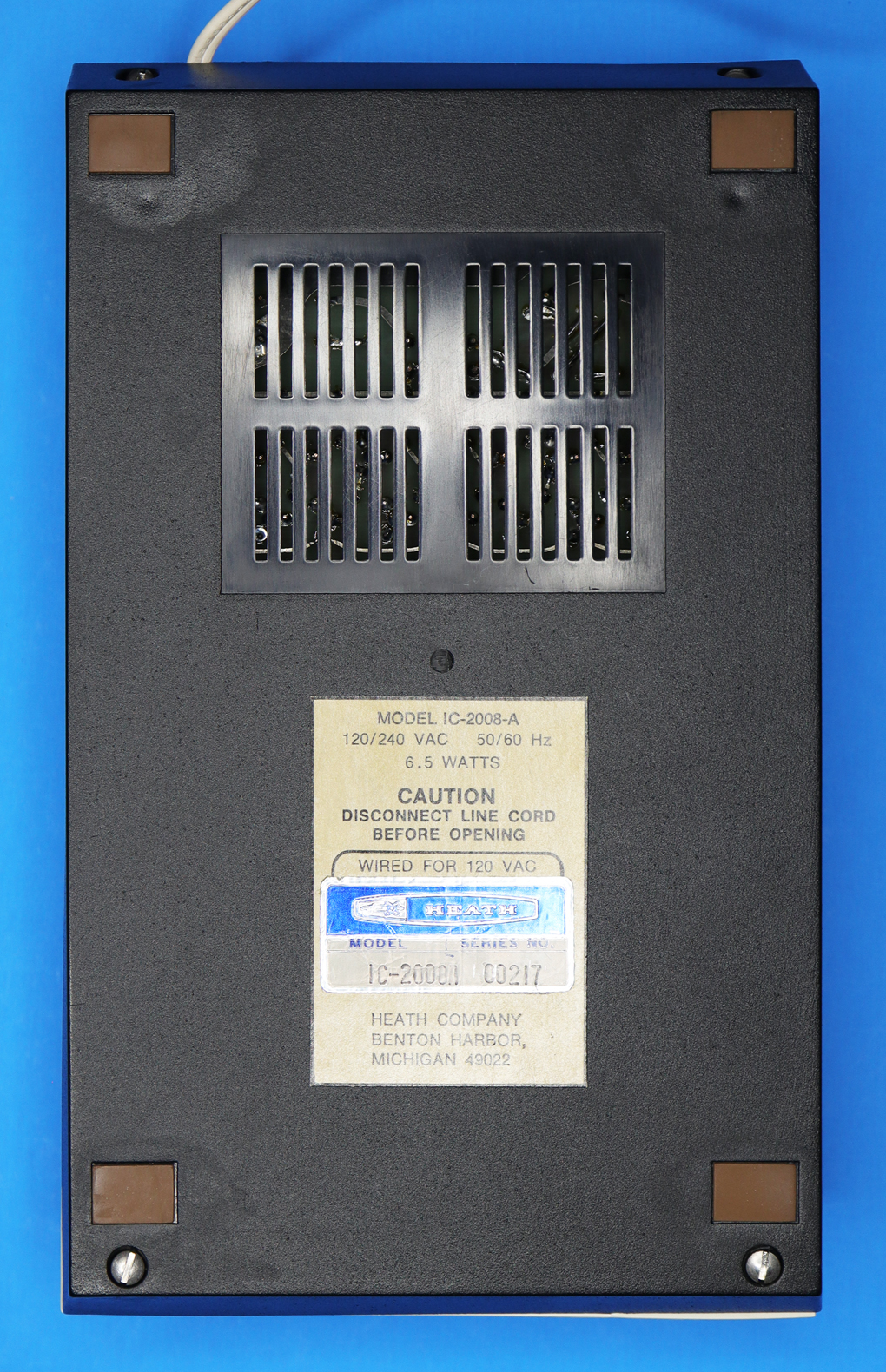

| This Heathkit IC-2008A was
sold in May 1972 as a kit to a hobbyist in the US.
|

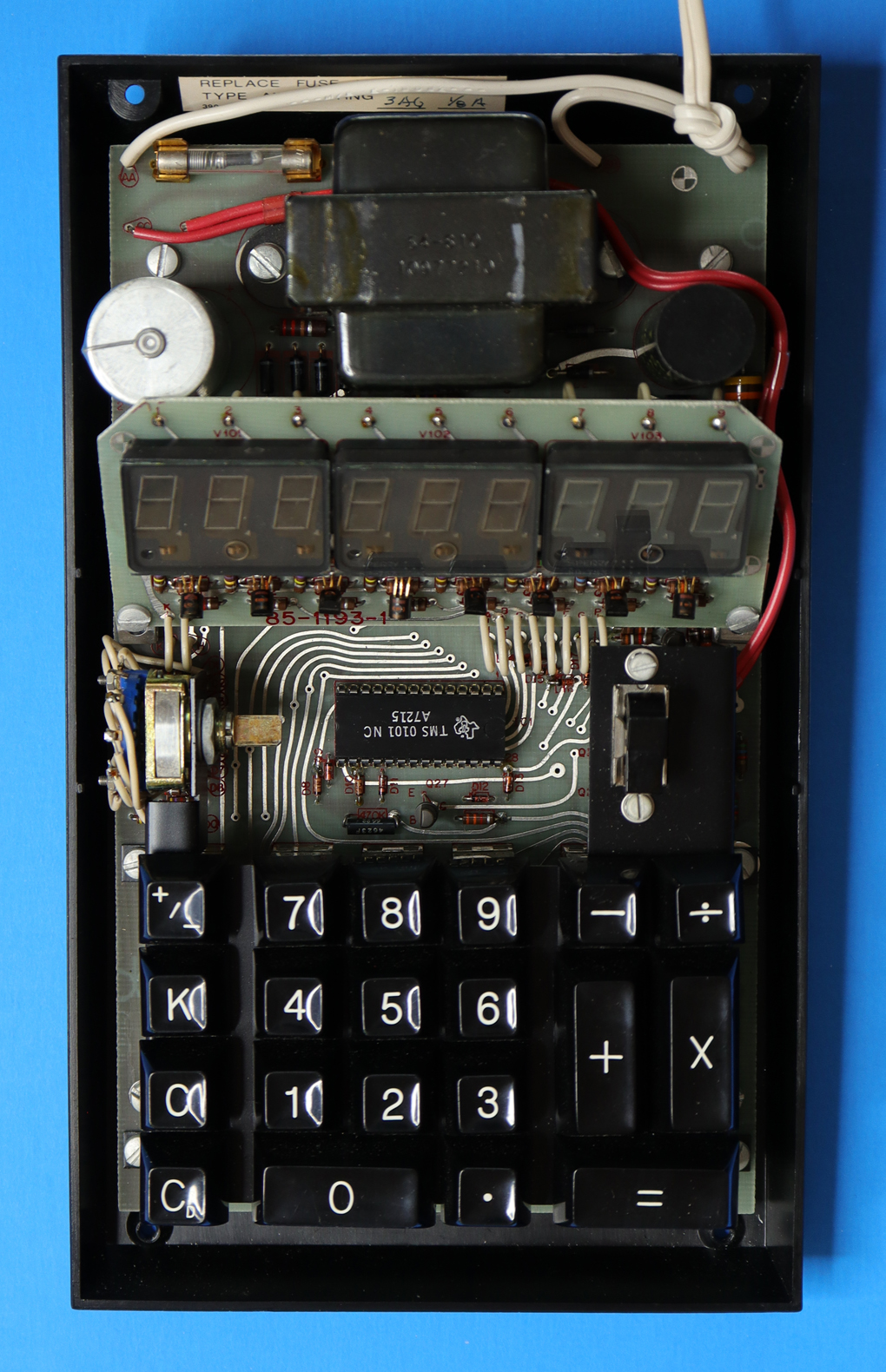

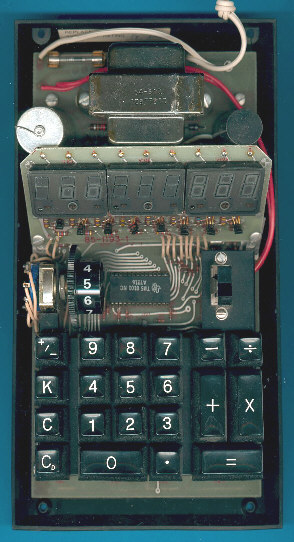

| The printed circuit board
(PCB) of the Heathkit IC-2008A is centered around the TMS0101 single-chip calculator circuit.
|

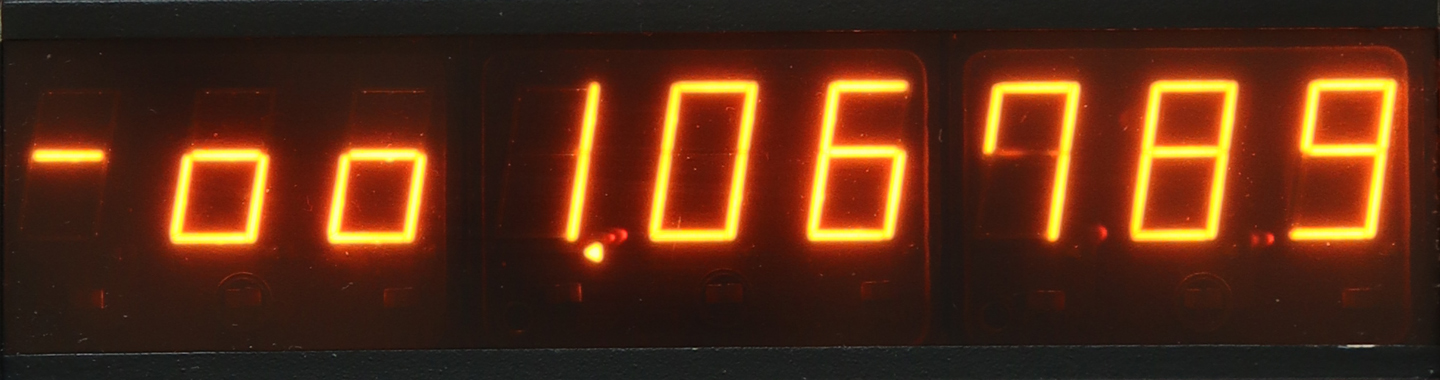

| The IC-2008A
outputting "-1.06789" with leading "half-zeros".
|
|

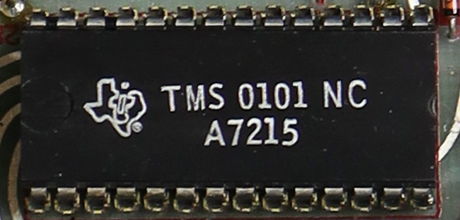

Close-up
view of the TMS0101 single-chip calculator circuit.
|
| Close-up
view of the Sperry SP-753 planar neon gas discharge display module (Panaplex
II).
|
