Additional Pictures

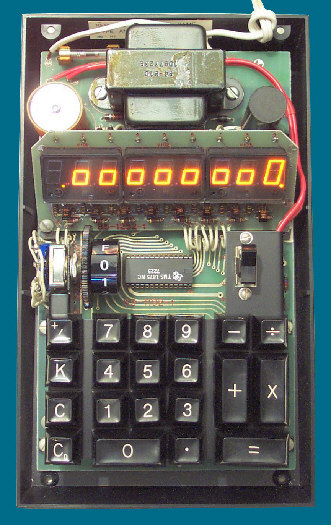

This Heathkit IC-2008 was sold in March 1972 as a kit to a hobbyist in the US.

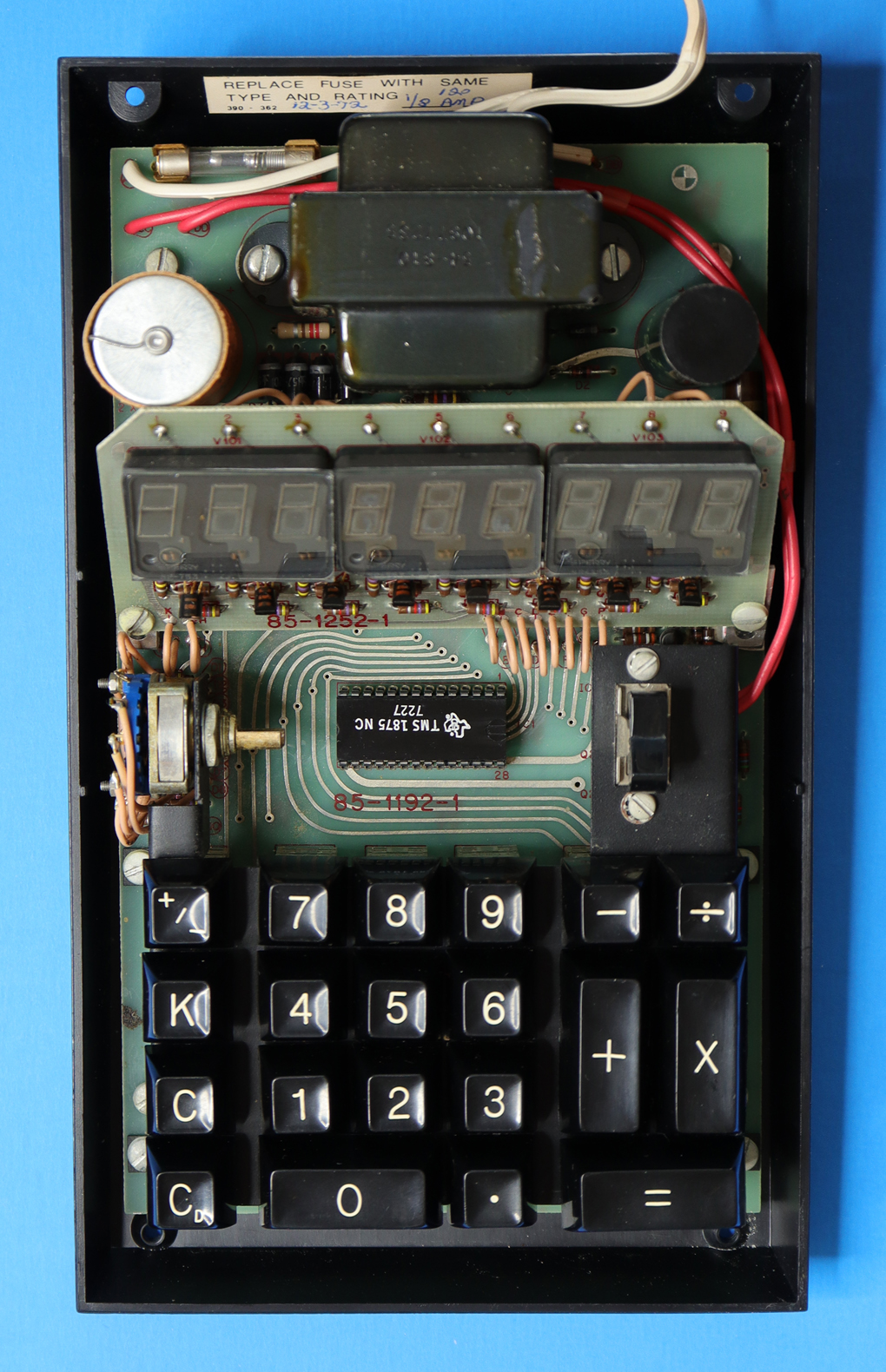

The printed circuit board (PCB) of the Heathkit IC-2008 is centered
around the TMS1875 single-chip calculator circuit.

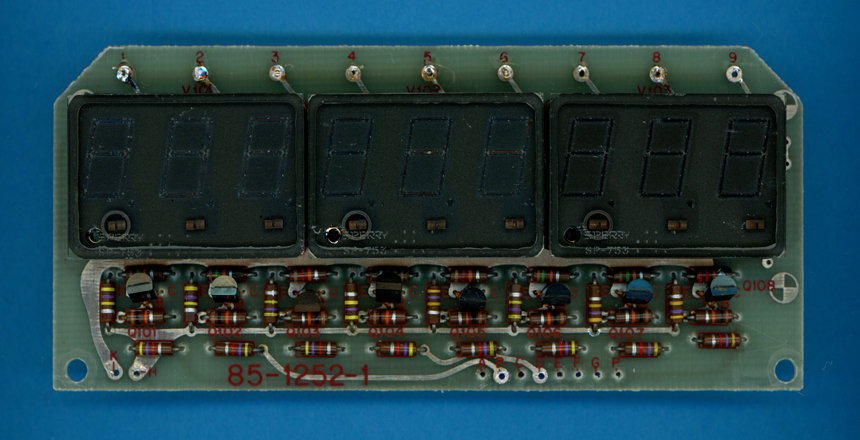

The display board with three SP-753 planar neon gas discharge "Panaplex II" display modules.

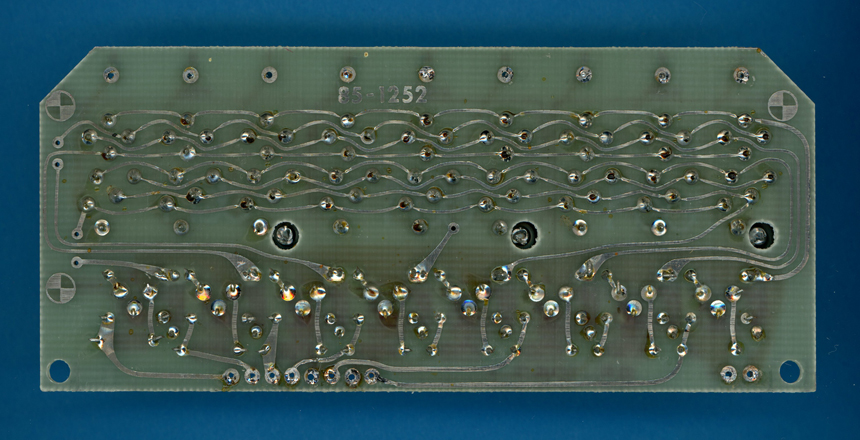

This IC-2008 a uses a replacement board with Heathkit PN# 85-1252-1 instead the original 85-1193-1 release.

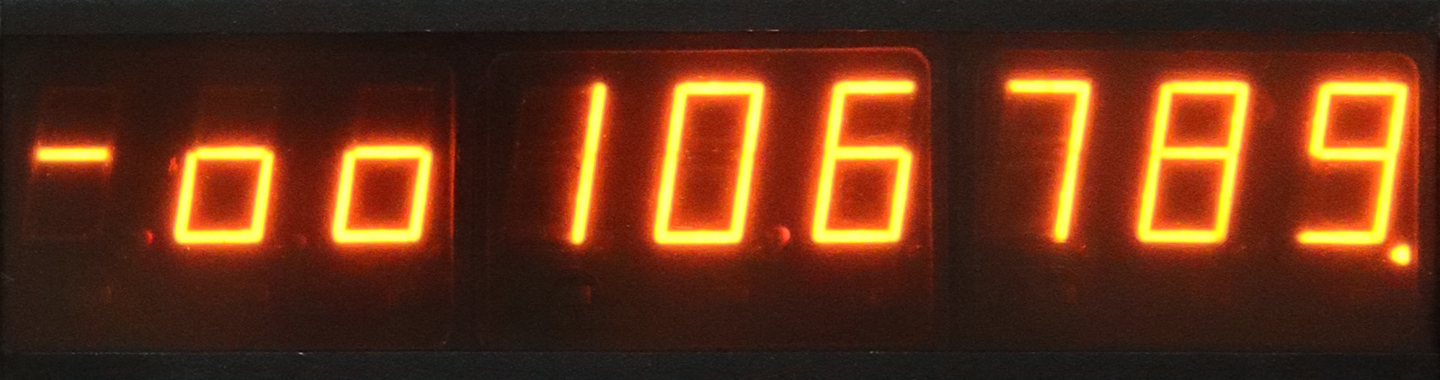

The IC-2008 outputting "-106789" with leading "half-zeros".

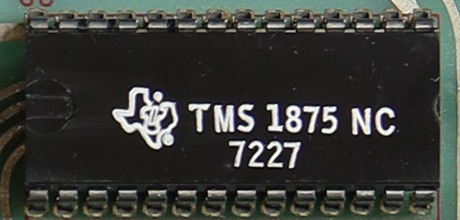

Close-up view of the TMS1875 single-chip calculator circuit.

Close-up view of the Sperry SP-753 planar neon gas discharge display module (Panaplex II).
