| This
Heathkit IC-2006
was
manufactured in November 1973 in the United
States as a kit for assembly by the purchaser.
|

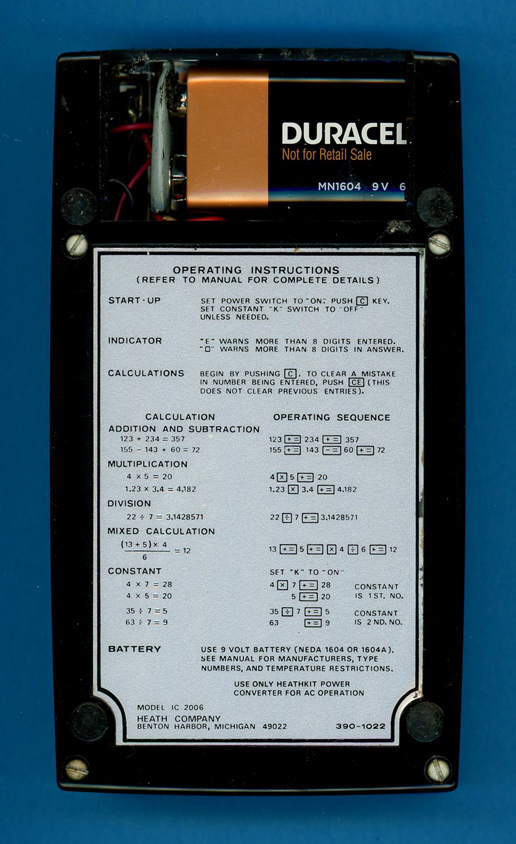

| The Heathkit IC-2006 is powered
calculator is powered by a 9V battery.
|
| The Heathkit IC-2006 with its
rear cover removed.
|

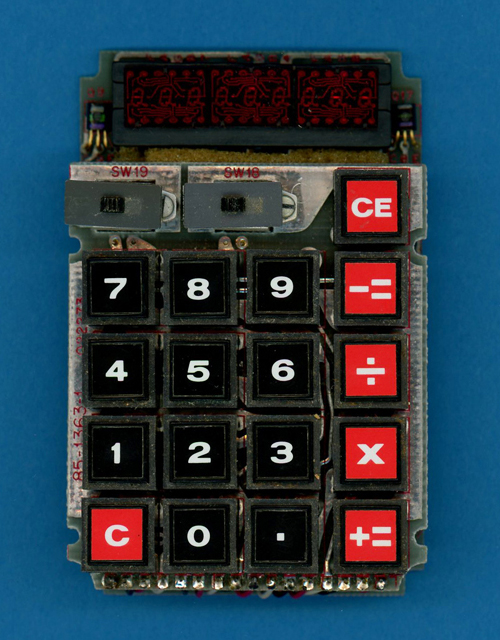

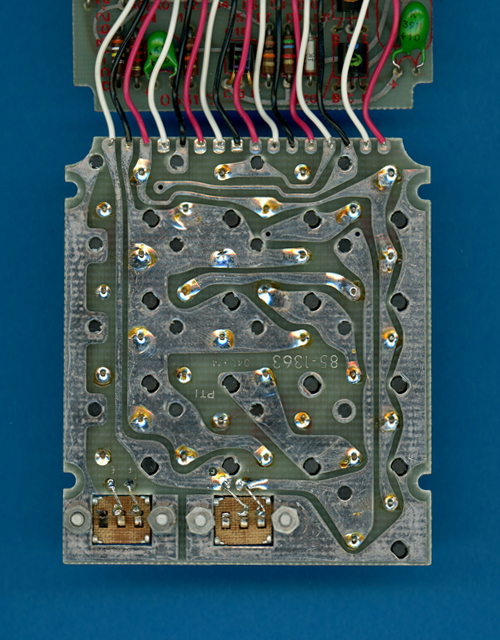

| The main assembly
of the Heathkit IC-2006 calculator with keyboard and display module
visible.
|

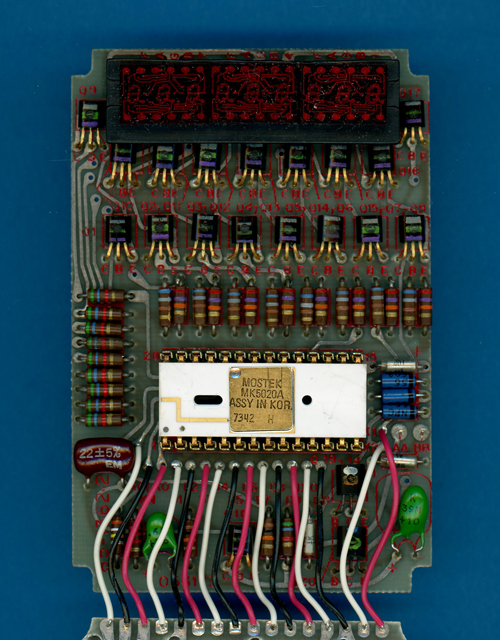

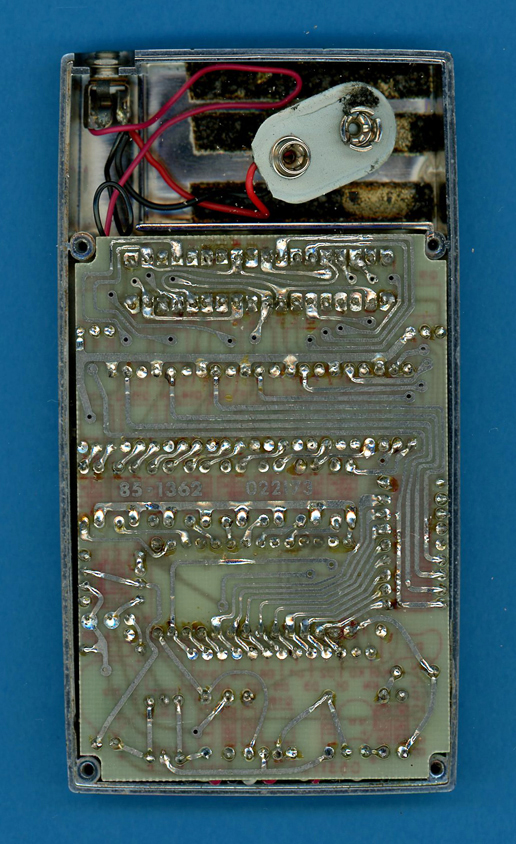

| The printed circuit board
(PCB) of the Heathkit IC-2006 calculator is centered around a Mostek MK5020A single-chip calculator circuit.
|
| The

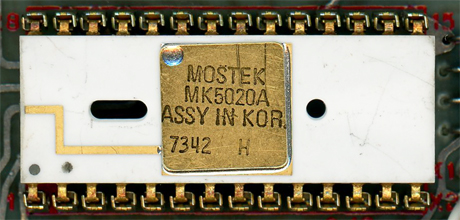

Close-up
view of the MK5020A single-chip calculator circuit.
|
| The Close-up
view of the LED display with three National Semiconductor NSN33 modules.
|
