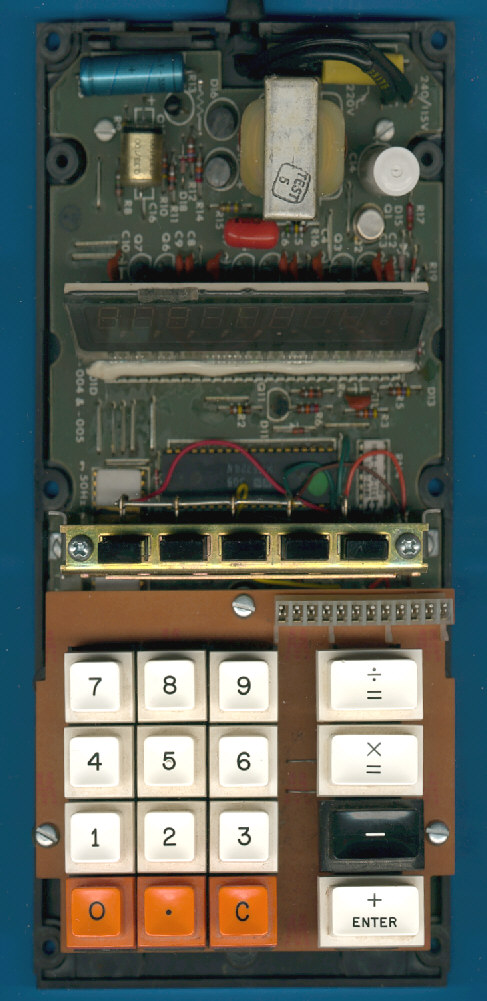

The printed circuit board (PCB) of the Garrett 2002 is partly hidden by the
keyboard assembly. You'll notice already the two-chip architecture.

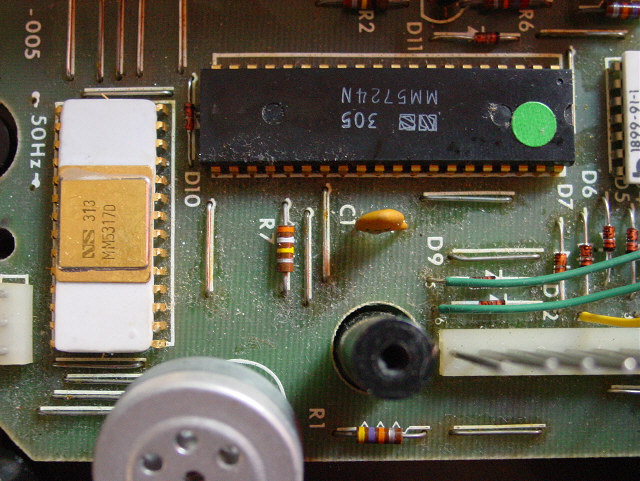

The clock function inside the Garrett 2002 is realized with the well known
National Semiconductor MM5317, the single-chip calculator circuit a MM5714.

Setting the Time, Date, Alarm, and Timer is a snap using the keyboard instead the
two push-buttons found on competitive calculator-clock combos.

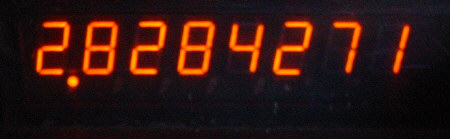

The 8-digit Panaplex II display in calculator mode.

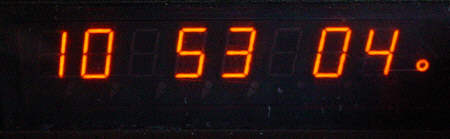

The 8-digit Panaplex II display in clock mode with hh:mm:ss format.

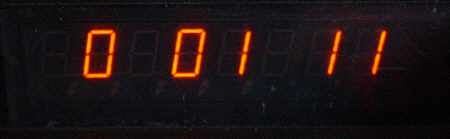

The 8-digit Panaplex II display in timer mode with mm:dd format.
