DATAMATH CALCULATOR MUSEUM |
Additional Pictures

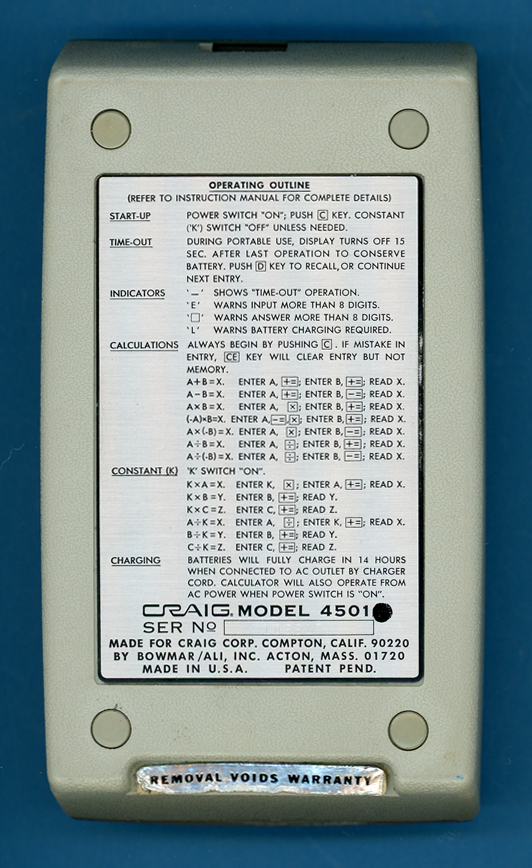

This Craig Model 4501 was obviously manufactured
in March 1972 |

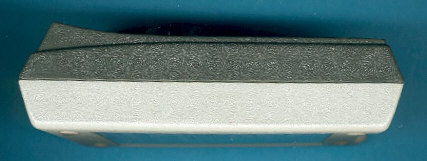

The sleek
shape of the Craig 4501 shows the display under a convenient reading angle.
|

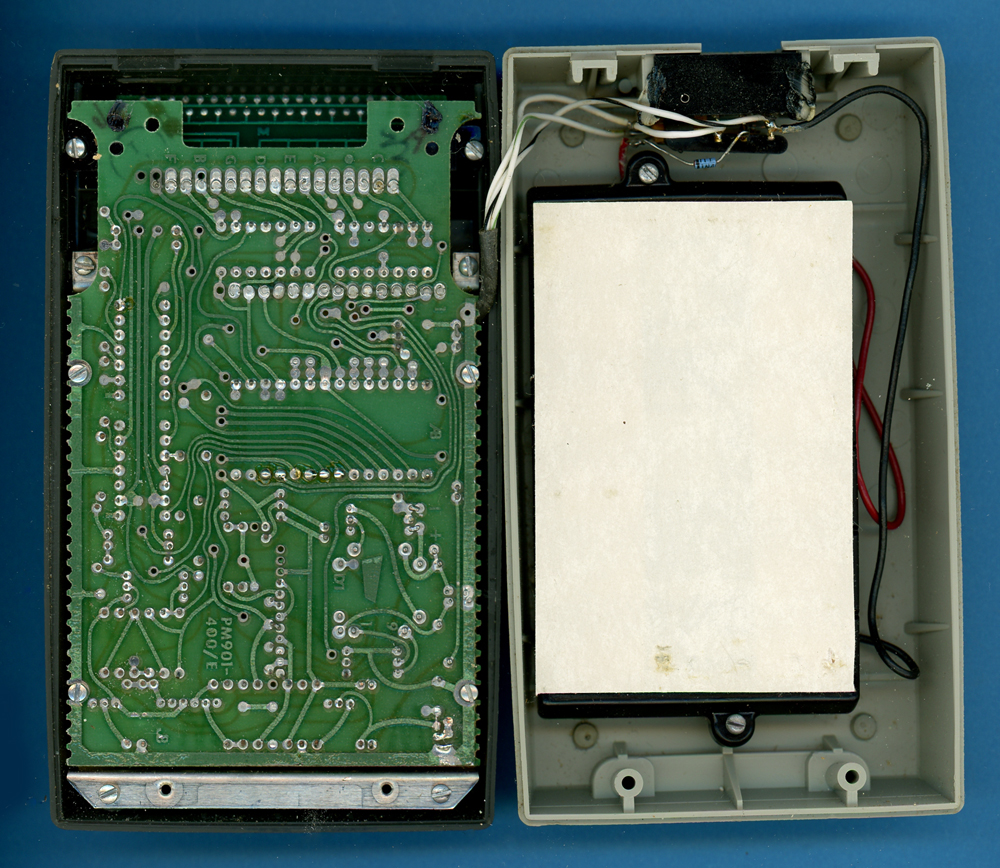

The
inside view of the Craig Model 4501 manufactured in March 1972 with
the PM901-400/E PCB-Mark. |
The Klixon keyboard is
hiding most of the printed circuit board (PCB) of the
Craig Model 4501 and only two Display Drivers and the LED Display are visible. |

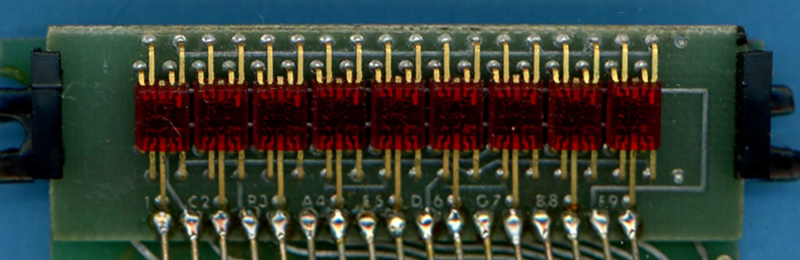

Close-up view of the
Display Module of a Craig Model 4501
manufactured in March 1972. |

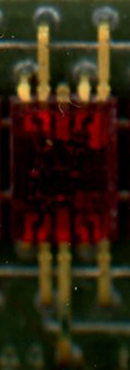

Close-up view of the
Monsanto MAN-3A 7-Segment LED Module showing the 4
small light bars per segment. |
