Additional Pictures

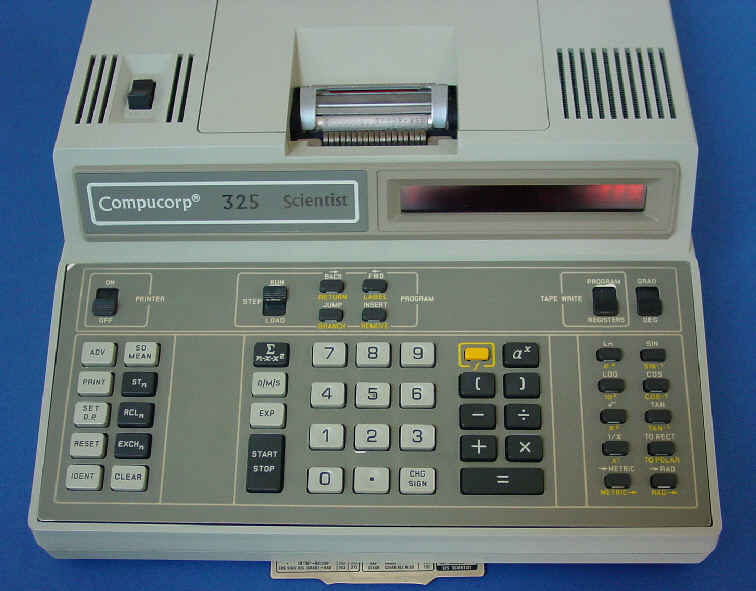

| The user interface of the Compucorp
325 Scientist with a well designed
keyboard, a 16-digit Panaplex display and the big drum printer.
|
|

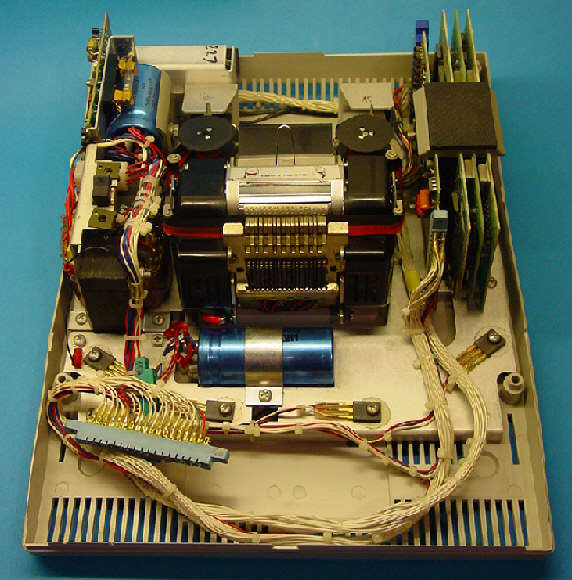

| Dismantling
the Compucorp 325 Scientist reveals a lot of electronics built around
the printer. The power supply is located left hand and the "brain" right hand. The keyboard is already removed.
|
|

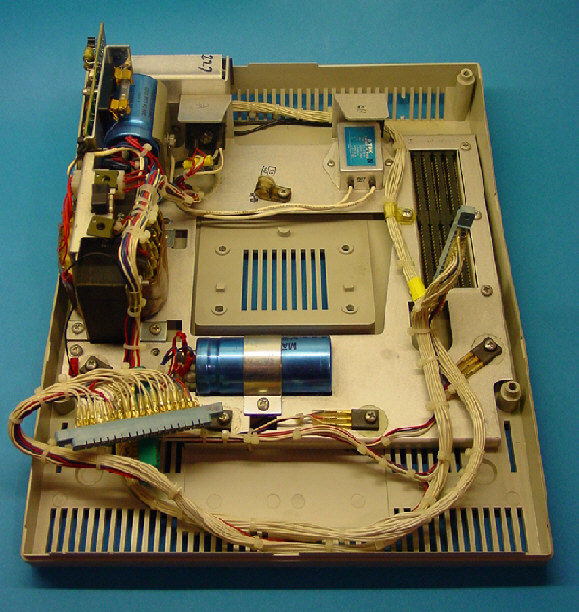

| Further disassembly
the Compucorp 325 Scientist.
|
|

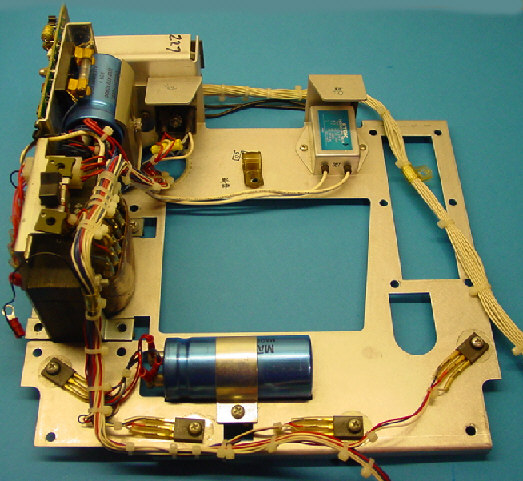

| Assembly
of the Compucorp 325 Scientist starts with a metal frame, power filter
and the power supply. Both the bus-connectors for the printed circuit boards (PCB's) and the drum printer attach to the plastic housing.
|
|

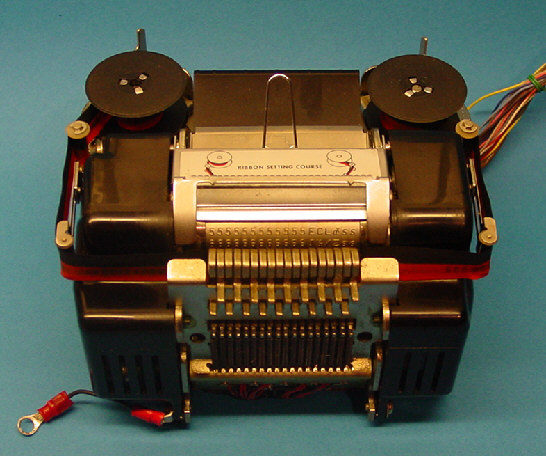

| The large drum printer
of the Compucorp 325 Scientist.
|

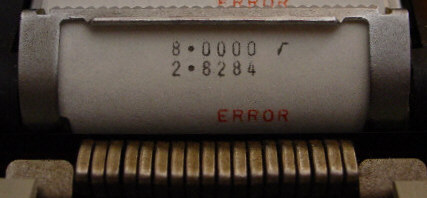

The printer
in action.
|
| The printer Model-102
manufactured in Japan.
|
|

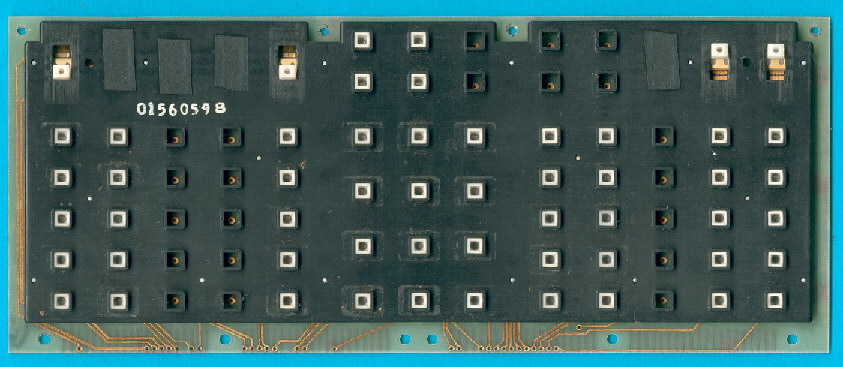

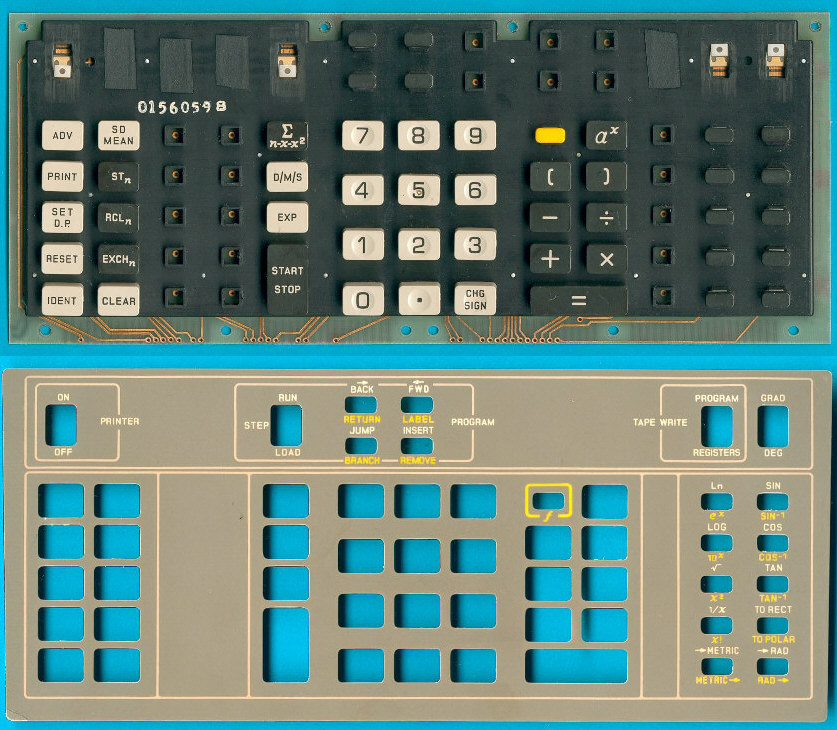

| The keyboard
of the Compucorp 325 Scientist.
|
|
| There a lot of options
for additional contacts and switches provided.
|
|

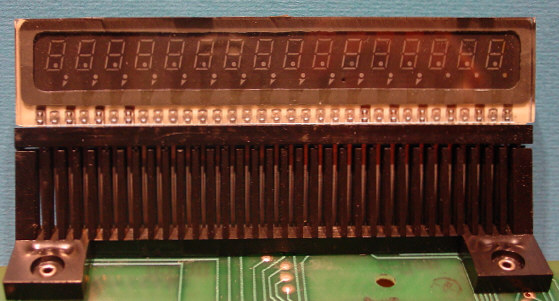

| The PanaplexTM display
of the Compucorp 325 Scientist.
|
|

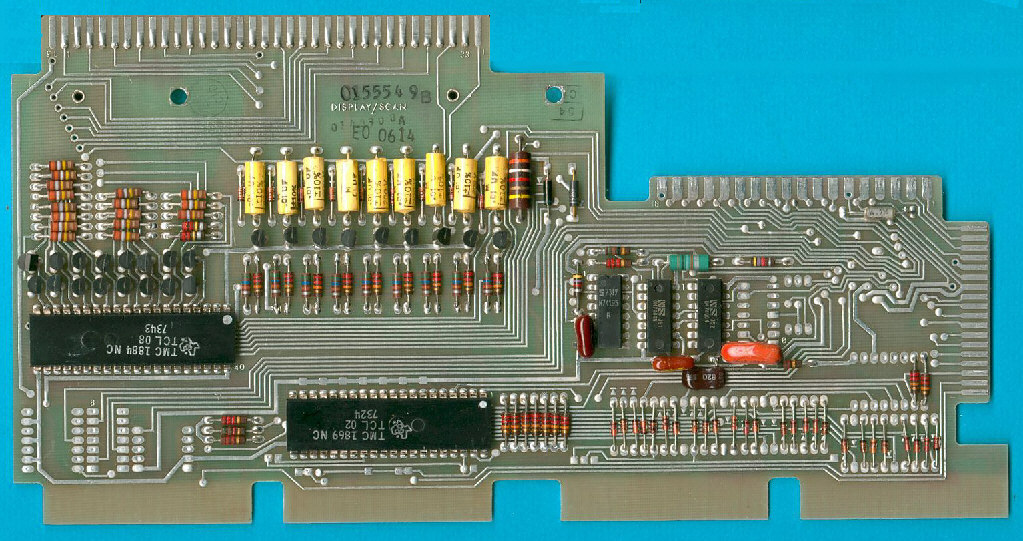

| The largest PCB performing keyboard and
display scanning. This PCB is mounted below
the keyboard.
|
|

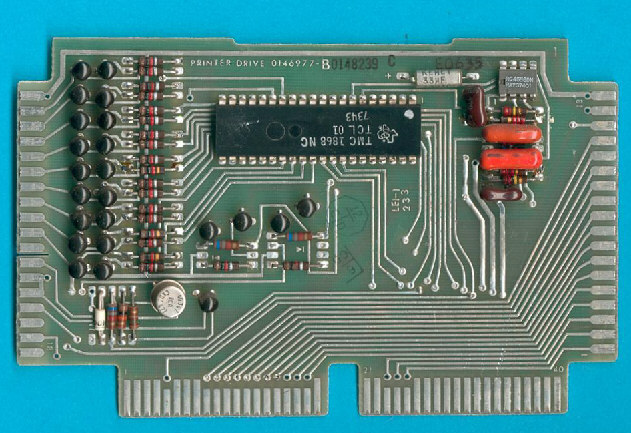

| The first PCB
in the stack drives
the drum printer.
|
|

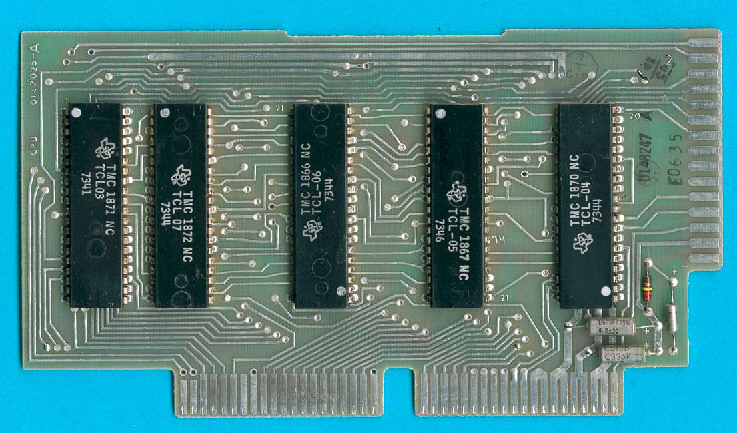

| The second PCB
in the stack assembles the
calculator brain.
|
|

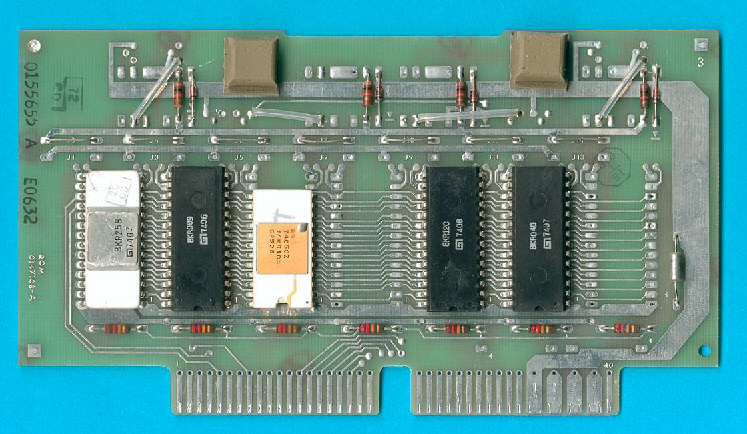

| The third PCB
in the stack with the Program ROM.
|
|

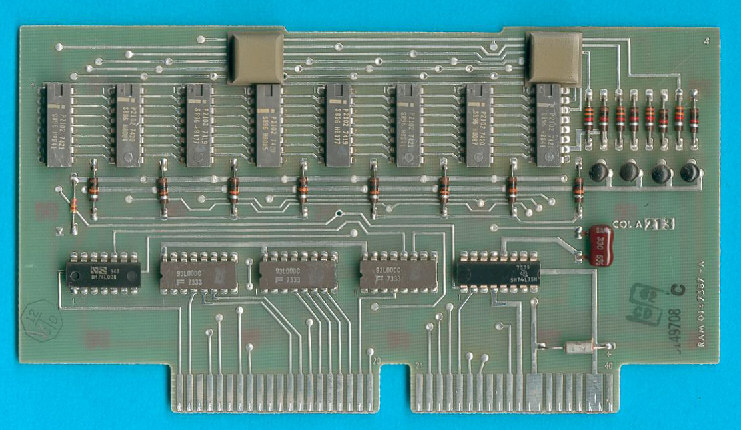

| The fourth PCB
in the stack with the Data
RAM.
|
|

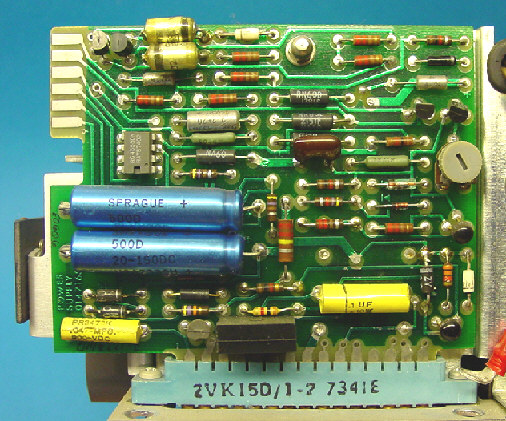

| An
additional PCB holds the power
supply of the Compucorp 325 Scientist.
|
|
