Additional Pictures

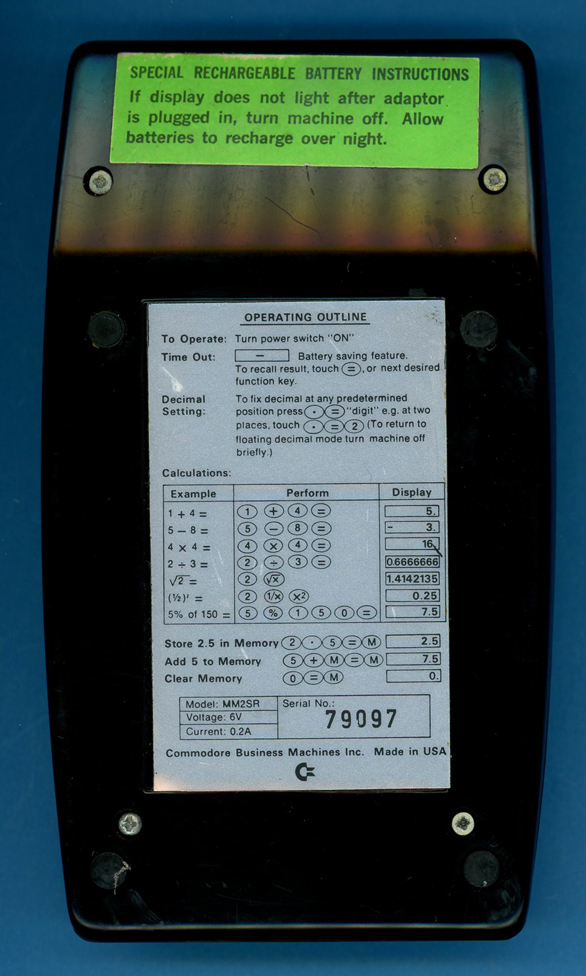

This Commodore Minuteman
2SR
(MM.2SR) with Serial Number 79097 was manufactured
in March 1974. |
|

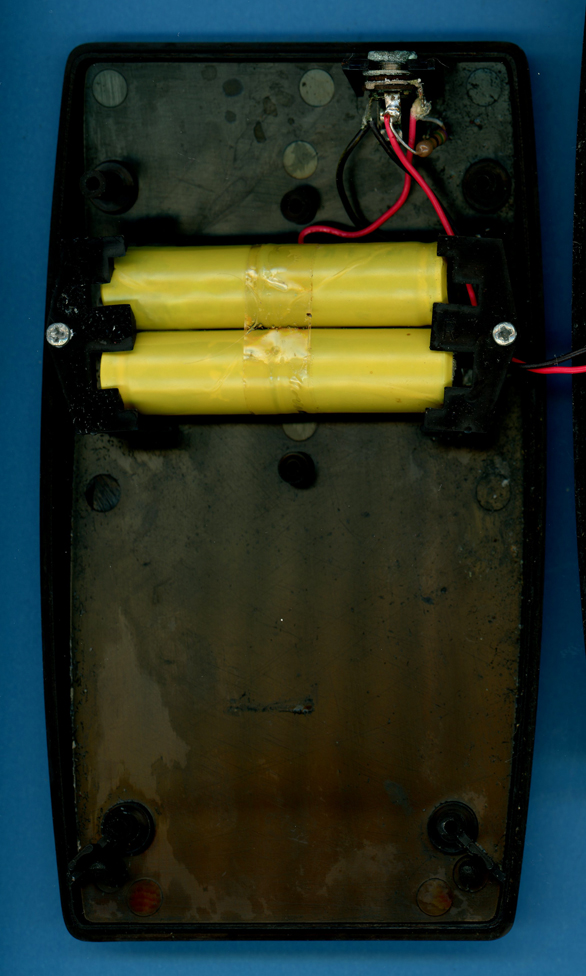

The Commodore Minuteman
2SR is powered by 4 N-size rechargeable batteries. |
|

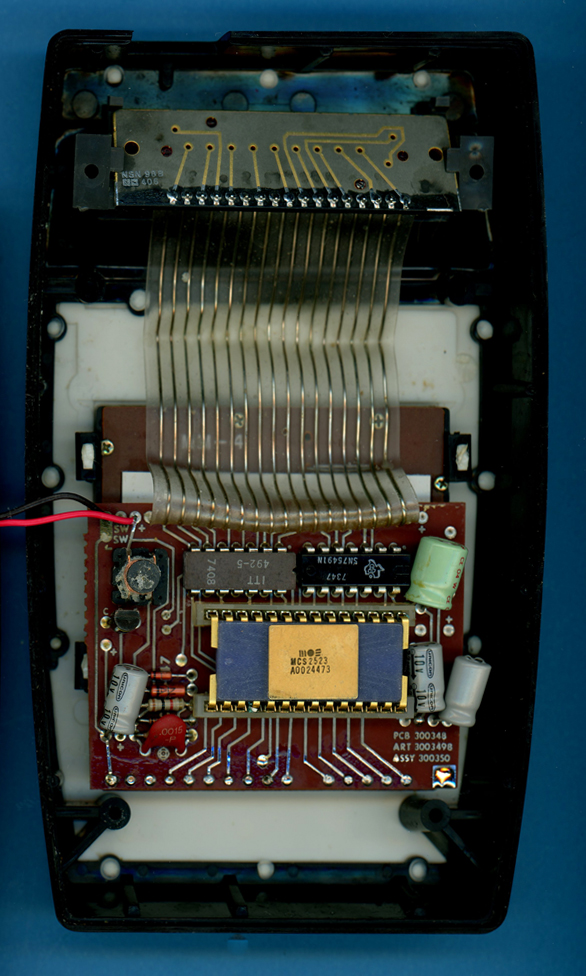

The printed
circuit board (PCB) of the Commodore MM.2SR is centered
around a MOS Technologies MCS2523 single-chip calculator circuit and supported by a pair of SN75491 and ITT 492 display drivers. |
|

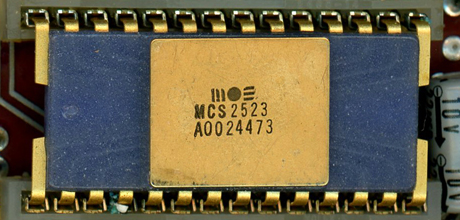

Close-up view
of the MCS2523 single-chip calculator circuit. |
|
Close-up view of the SN75491 Segment Driver. |
Close-up view of the ITT 492-5 Digit Driver. |

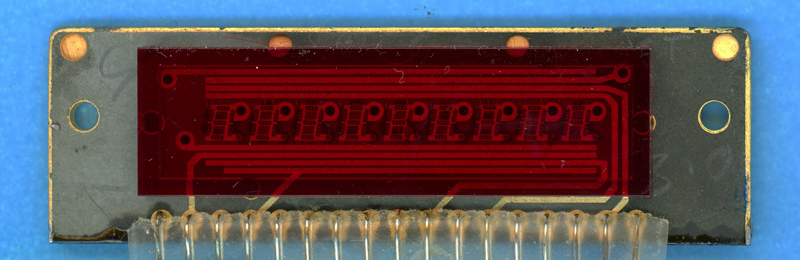

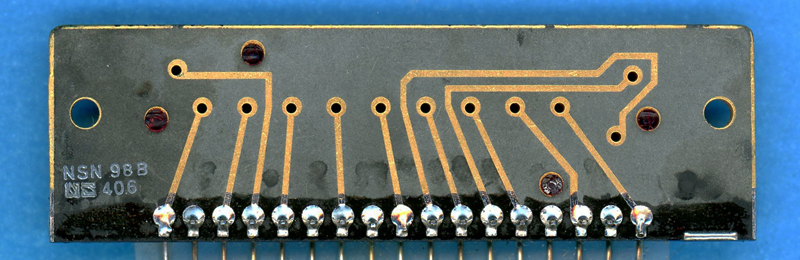

Close-up view of the
National Semiconductor NSN 98B Display Module of a Commodore MM.2SR
manufactured in March 1974. |
|

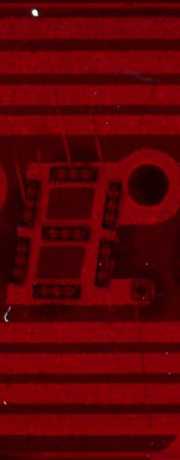

Close-up view
of one Digit of the National Semiconductor NSN 98B 7-Segment LED Module showing the
3
small light bars per segment. |
|

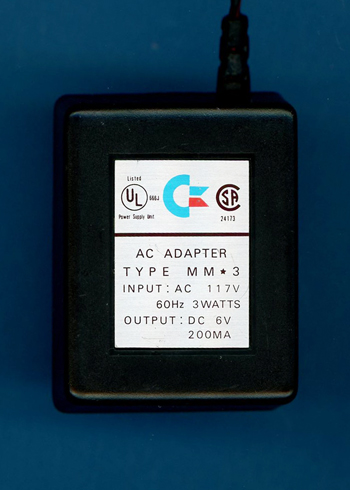

The Type MM 3
Charger Power Supply used with the Commodore MM.2SR. |
