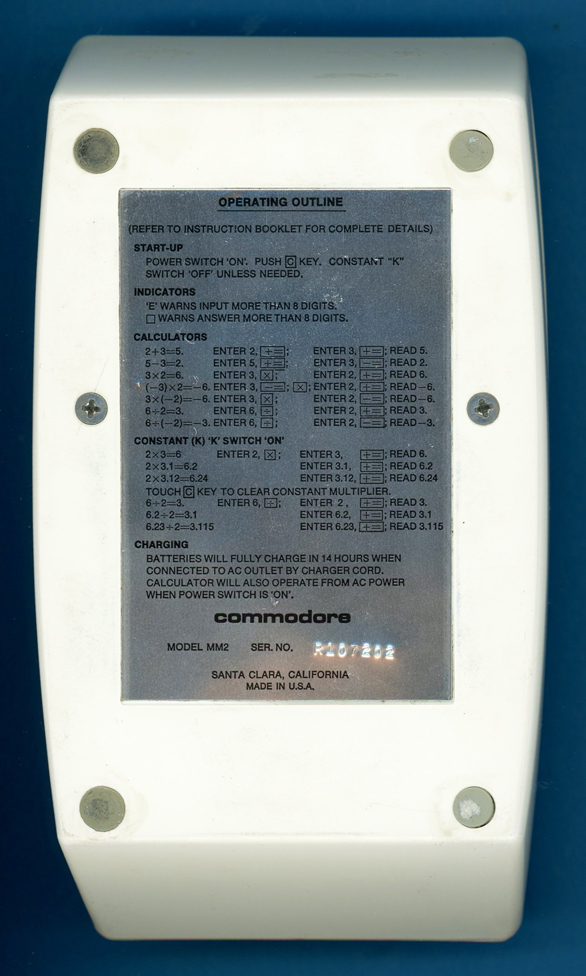

This Commodore Minuteman
2
(MM.2 Version 1) with Serial Number R107202 was manufactured
in June 1972. |

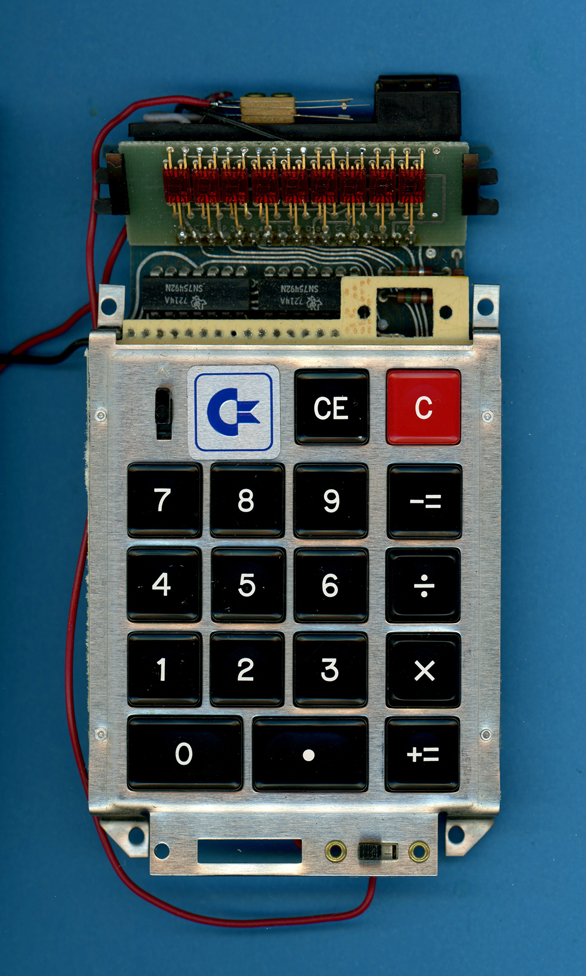

The
inside view of a Commodore MM.2 Version 1. |

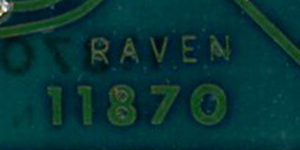

Close-up view of the
RAVEN 11870 PCB-Mark. |

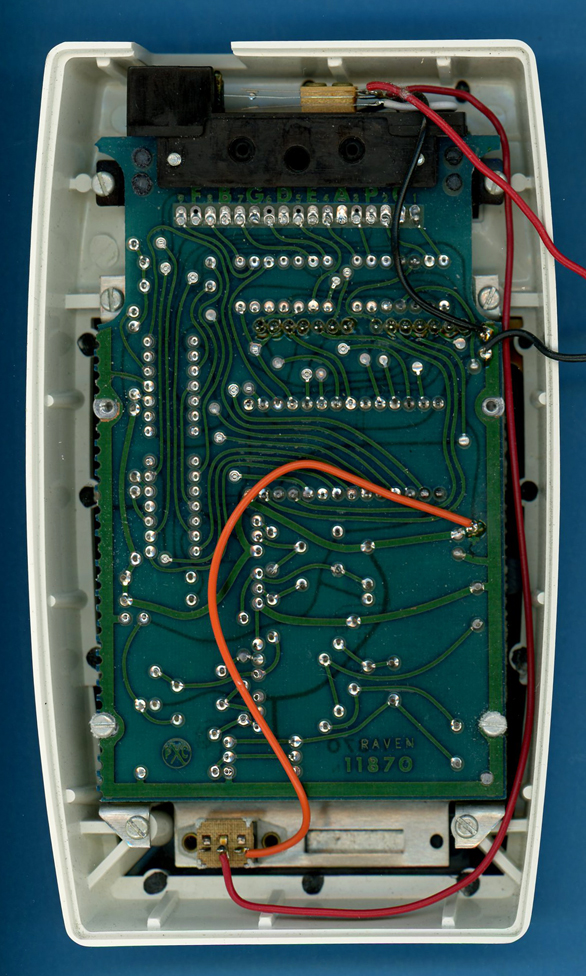

The printed circuit board
(PCB) of a Commodore MM.2 Version 1 manufactured in
June 1972. |

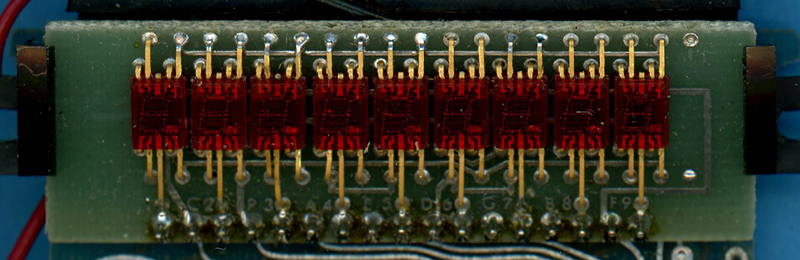

Close-up view of the
Display Module of a Commodore MM.2 Version 1
manufactured in June 1972. |

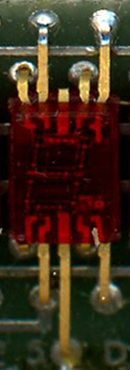

Close-up view of the
Monsanto MAN-3A 7-Segment LED Module showing the 4
small light bars per segment. |

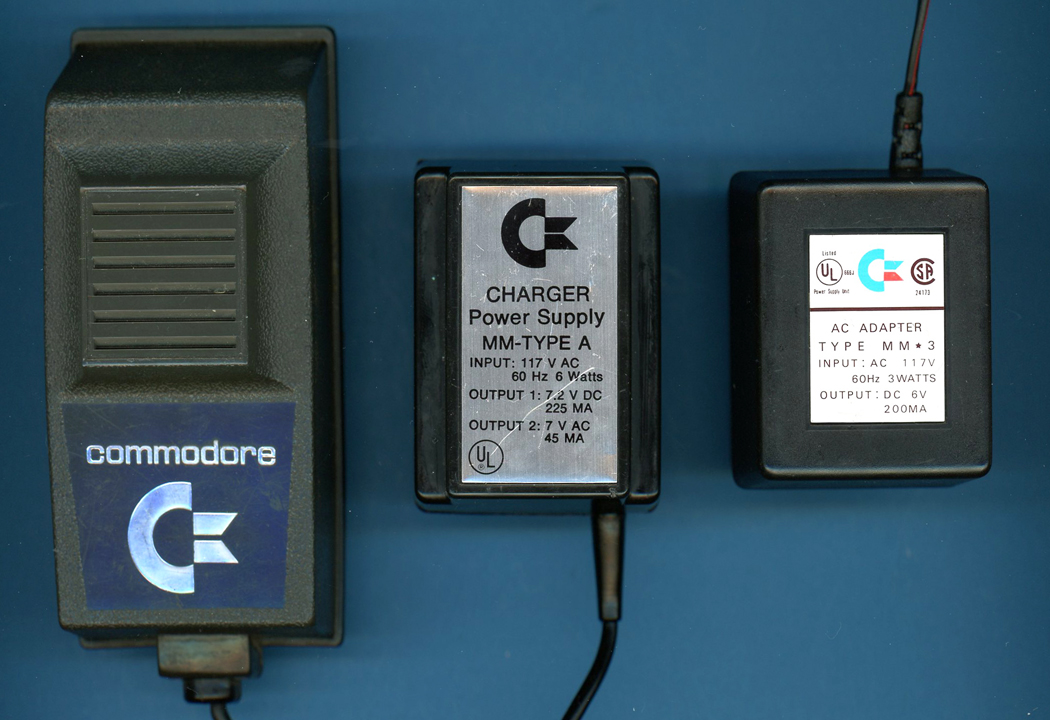

The MM-Type A
Charger Power Supply of the Commodore MM.2 centered between MM.1 and MM.3 power
supplies. |
