Additional Pictures

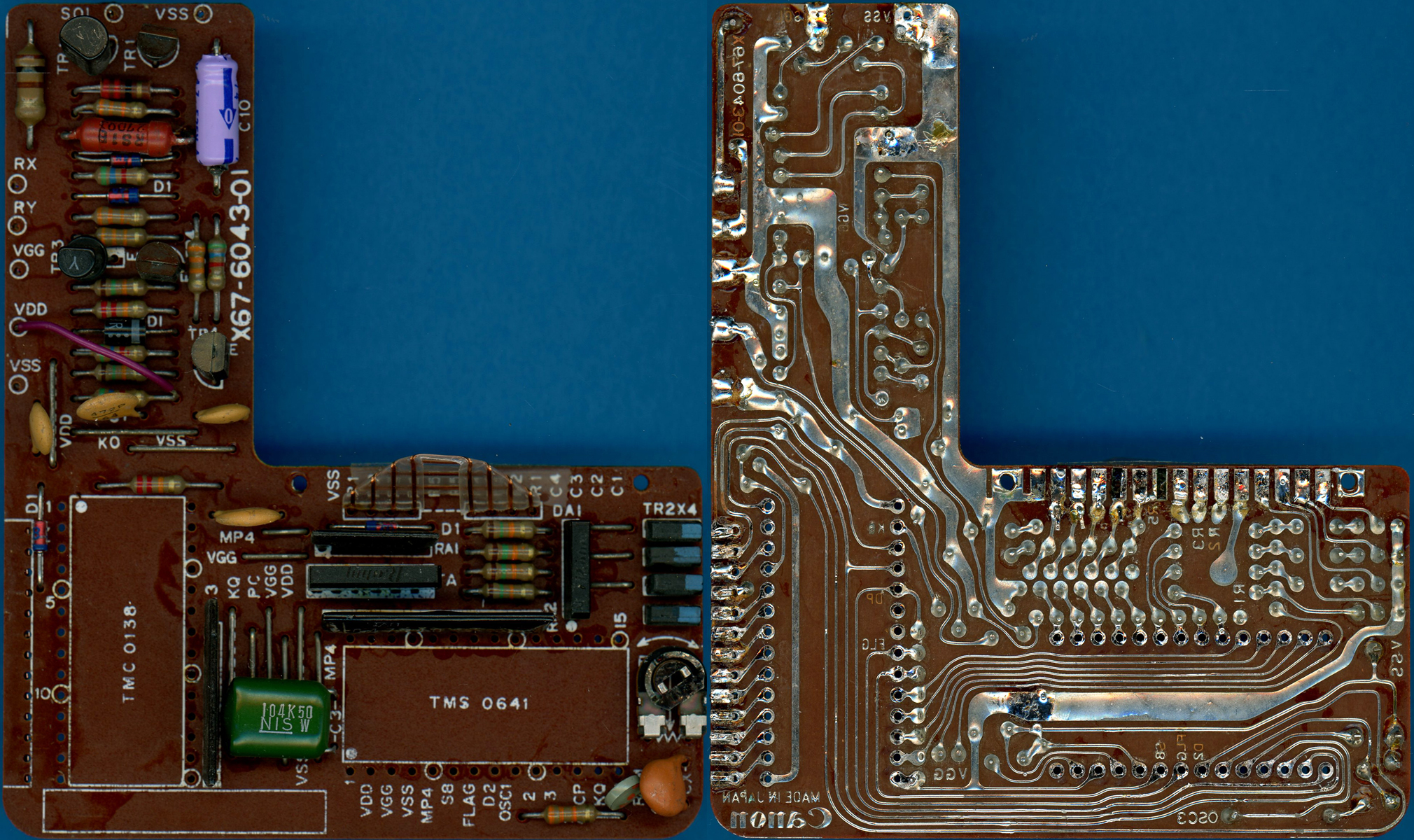

The printed circuit board (PCB) of a Canon Pocketronic II calculator manufactured in August 1974 with its (mirrored) backside.

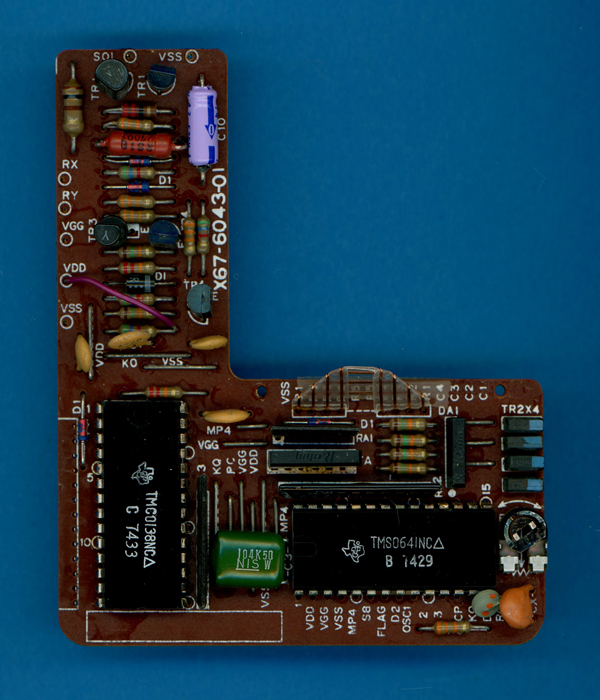

The PCB with the TMC0138 single-chip calculator circuit and TMS0641 Printer Chip still populated.
