Additional Pictures
| The
sales box of the Canon Palmtronic MD-8 aka MULTI 8 sold
around 1980 in the US.
|
| This
Canon Palmtronic MD-8
was
manufactured in December 1977 in Japan.
|

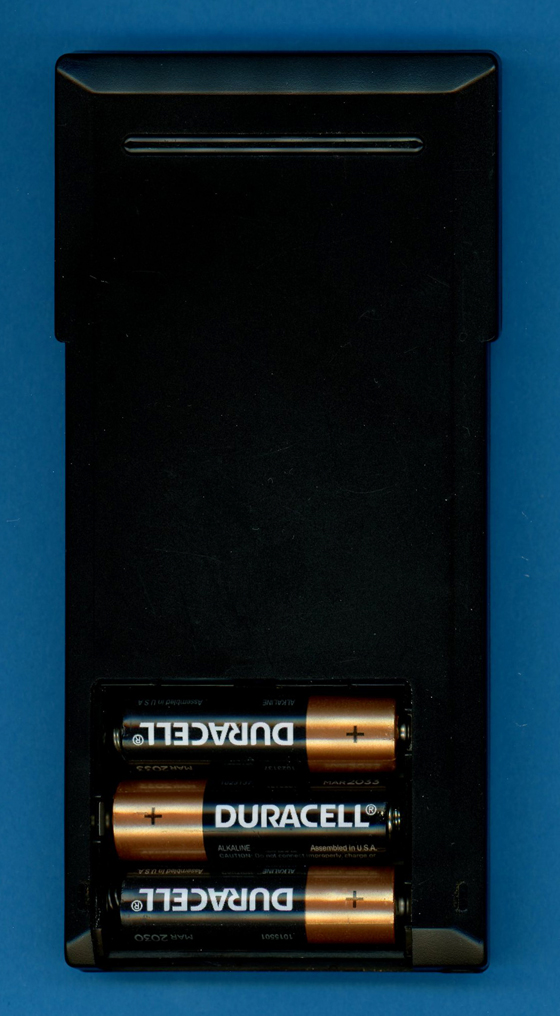

| The Canon Palmtronic MD-8 is powered by
three
AA-sized
Alkaline batteries.
|

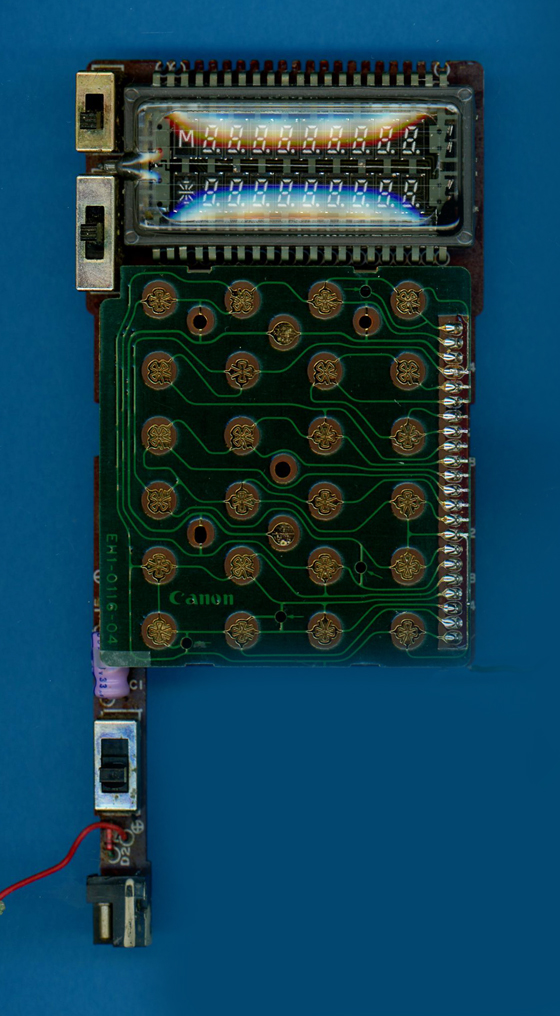

| The Palmtronic MD-8 with its
housing removed shows the innovative two-line
display.
|

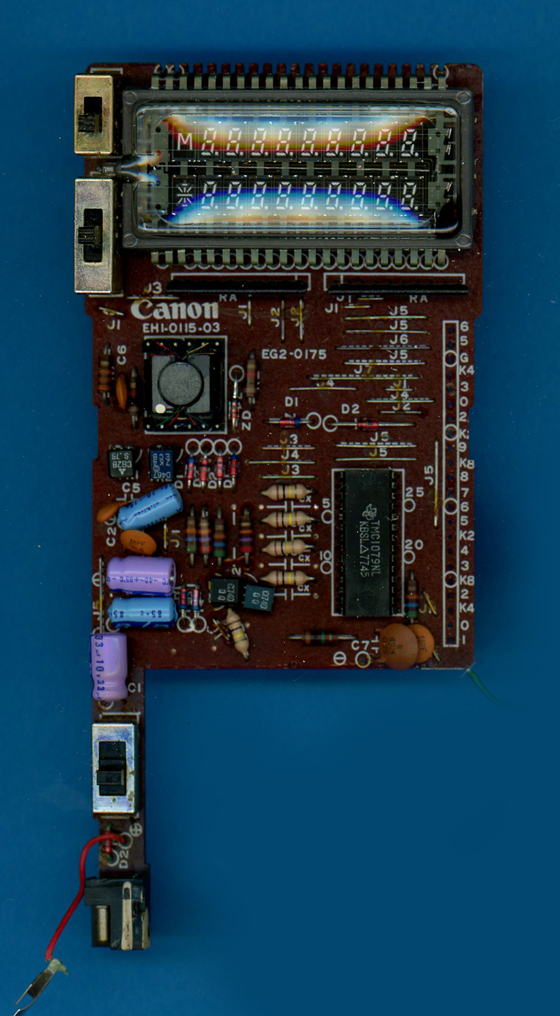

| The printed circuit board (PCB)
of the Palmtronic MD-8 is centered around a TMC1079 single-chip calculator circuit of the TMS1000 Family.
|

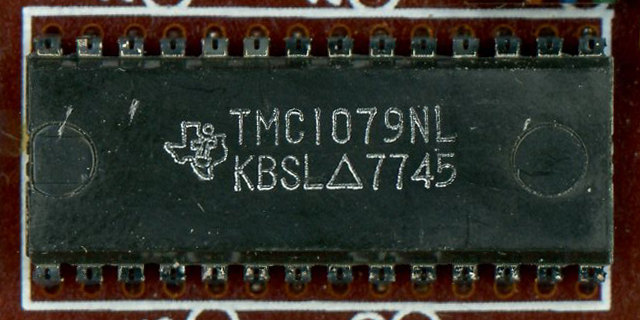

| The
Close-up
view of the TMC1079 single-chip calculator circuit.
|

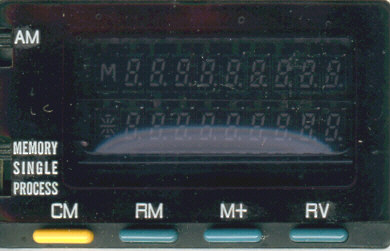

| The
Close-up
view of the FUTABA 20-ST-22 Vacuum Fluorescent Display (VFD).
|
If you have additions to the above article please email: joerg@datamath.org.
