Additional Pictures
This Canon LE-84
(Version 3) was manufactured
in November 1974 in Japan. |
|

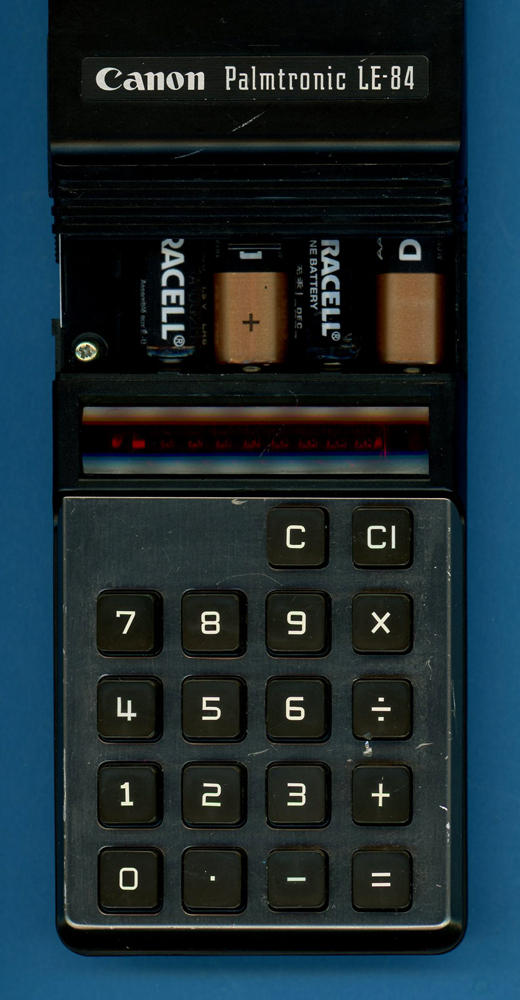

The Canon LE-84 is powered by a
four disposable 1.5 Volt batteries. |
|

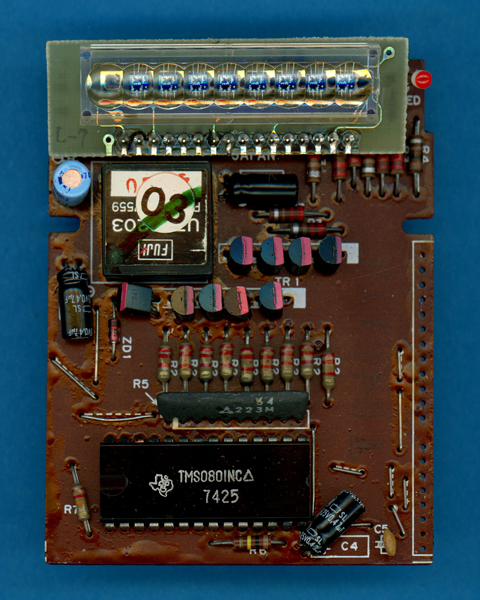

| The printed circuit board
(PCB) of the Canon LE-84 is centered around a
TMS0801 single-chip calculator circuit and supported by two display drivers hybrid circuits.  |
|

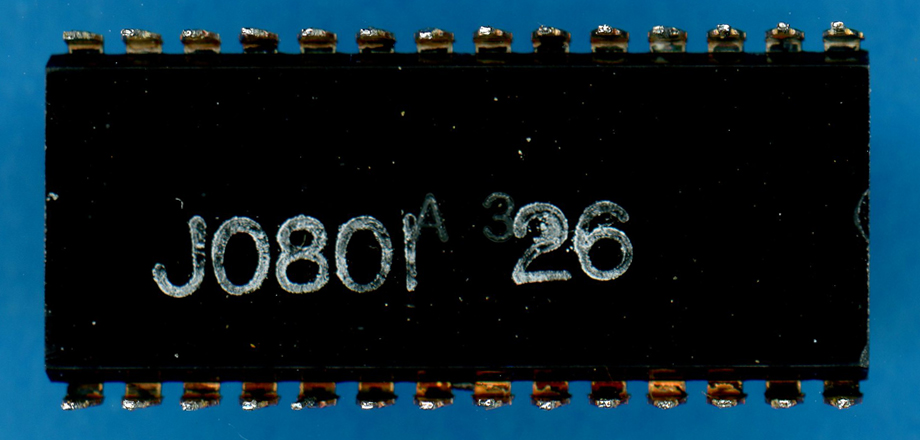

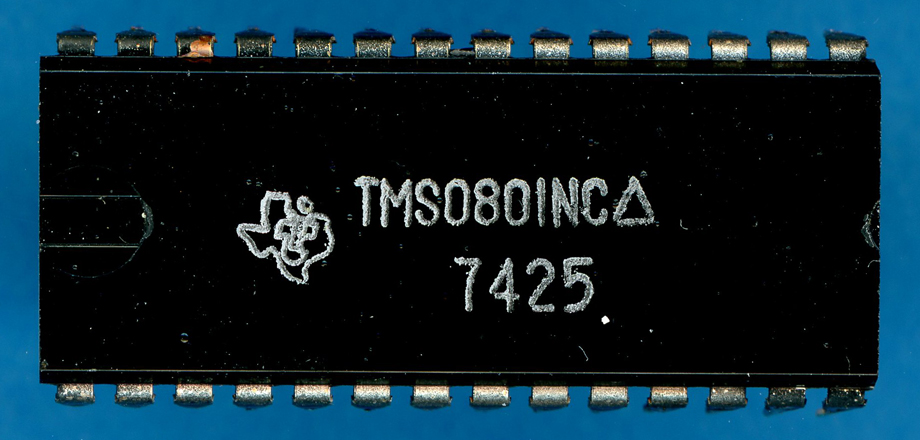

Close-up view
of the TMS0801 single-chip calculator circuit.  |
|

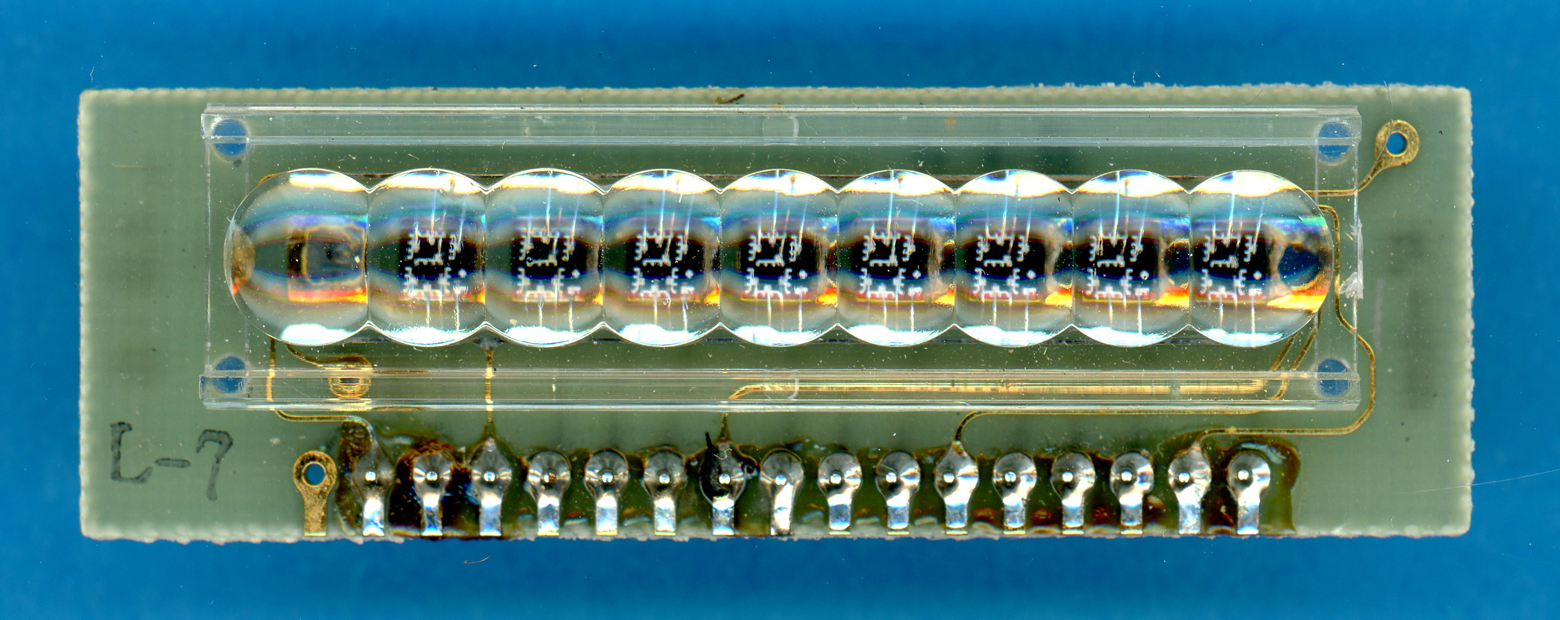

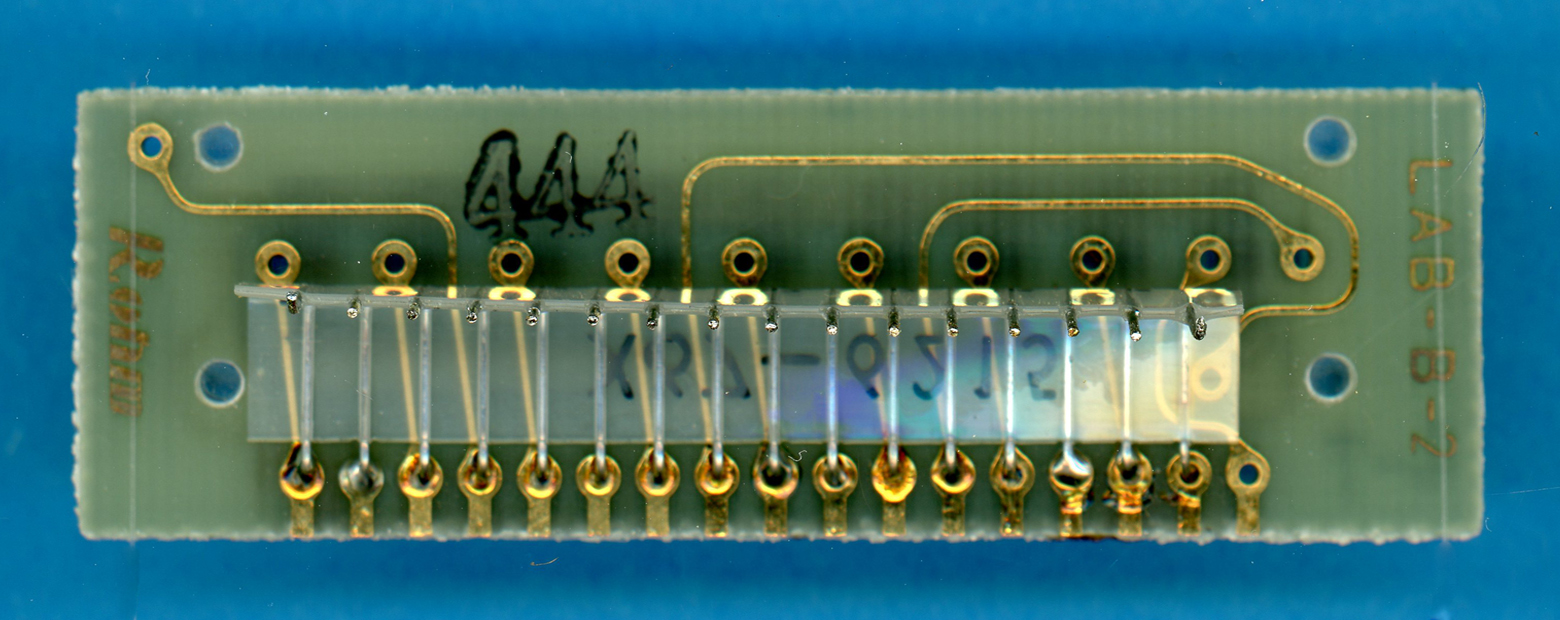

Close-up view of the
ROHM LAB-B-2 LED display module.  |
|

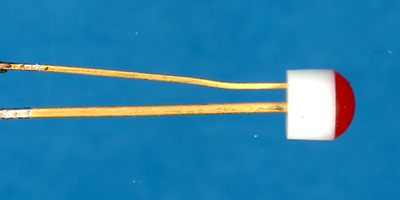

Close-up view of the minus "dot" LED. |

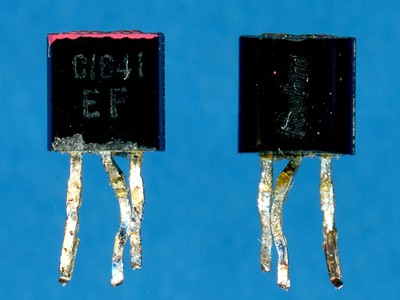

Close-up view of the 2SC1641 Digit transistor. |
