Additional Pictures

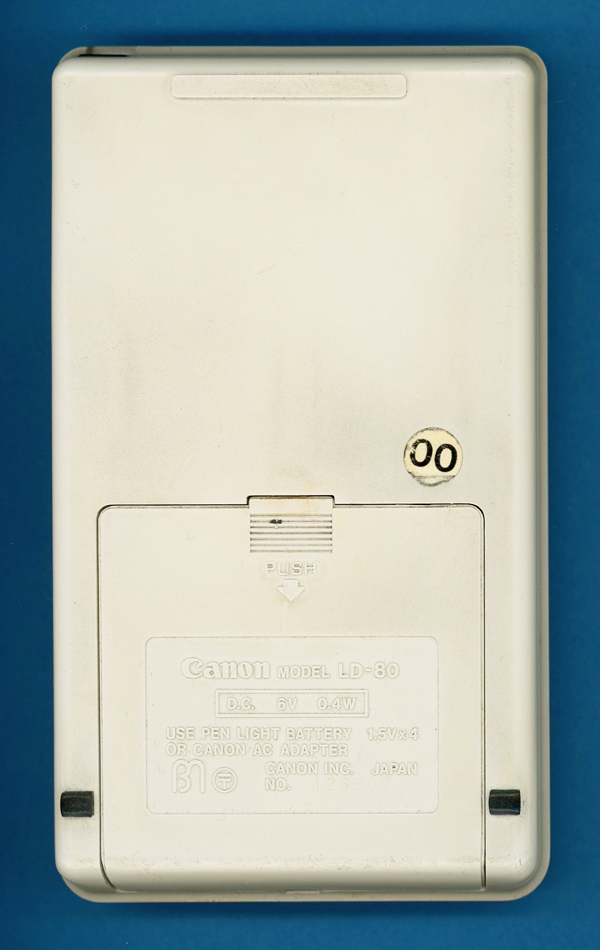

This Canon LD-80 Panther
D was manufactured
in November 1974 in Japan. |

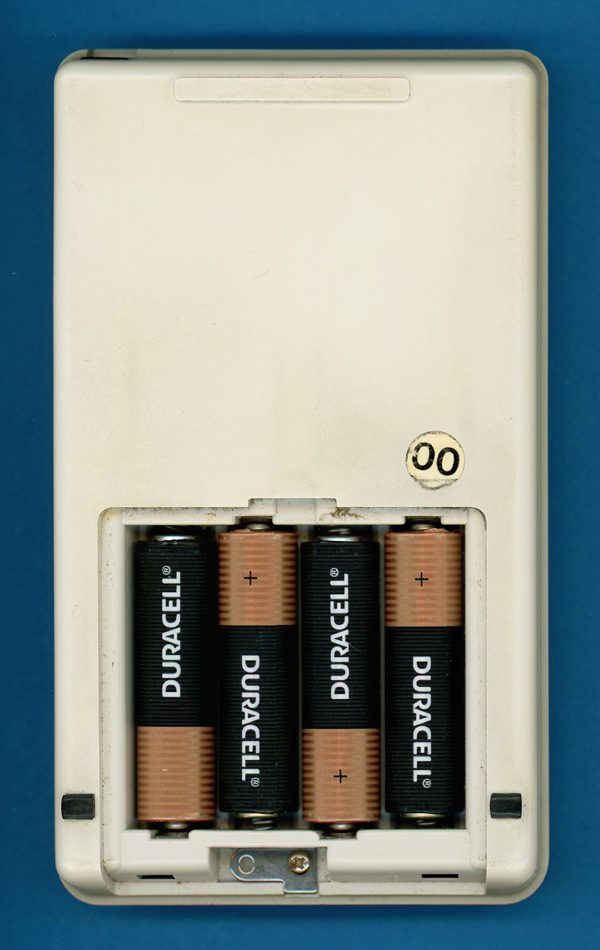

The Canon LD-80 Panther D is powered
by four disposable AA-sized batteries. |

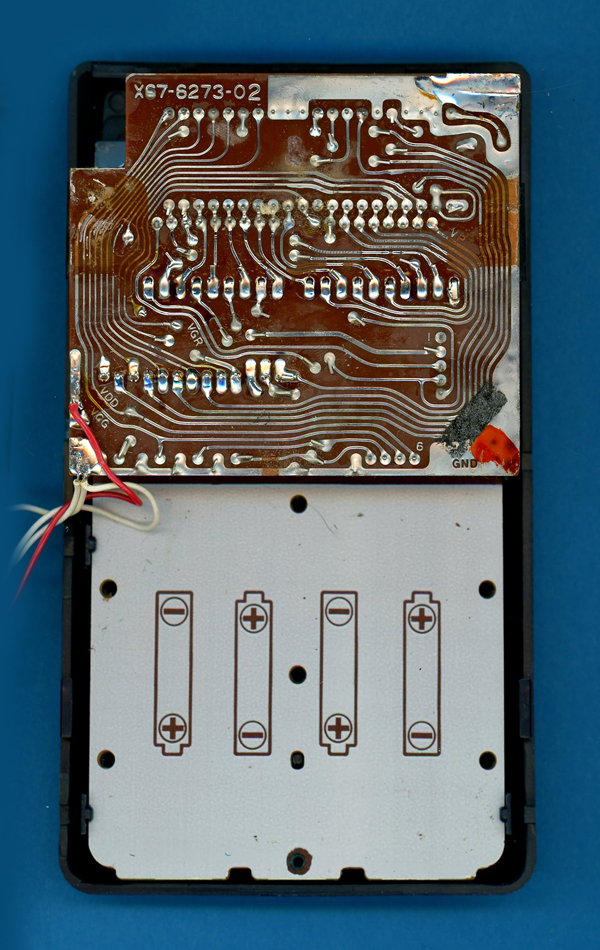

The Canon LD-80 Panther D
calculator with the backside of its housing removed. |

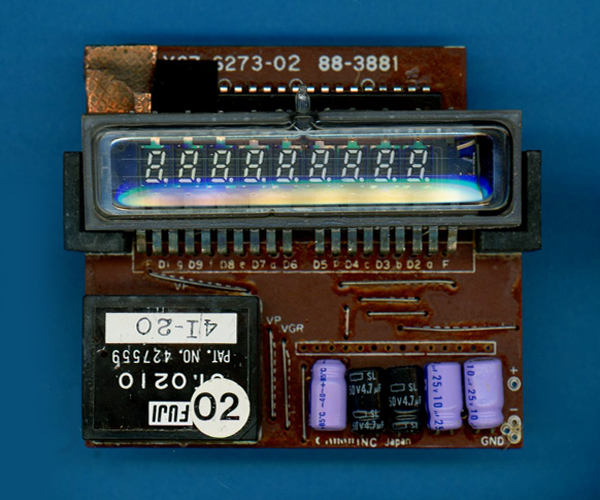

| The single-sided printed
circuit board (PCB) of the Canon LD-80 Panther D is centered around a Hitachi HD3633 single-chip calculator circuit hiding under the VF-Display.  |

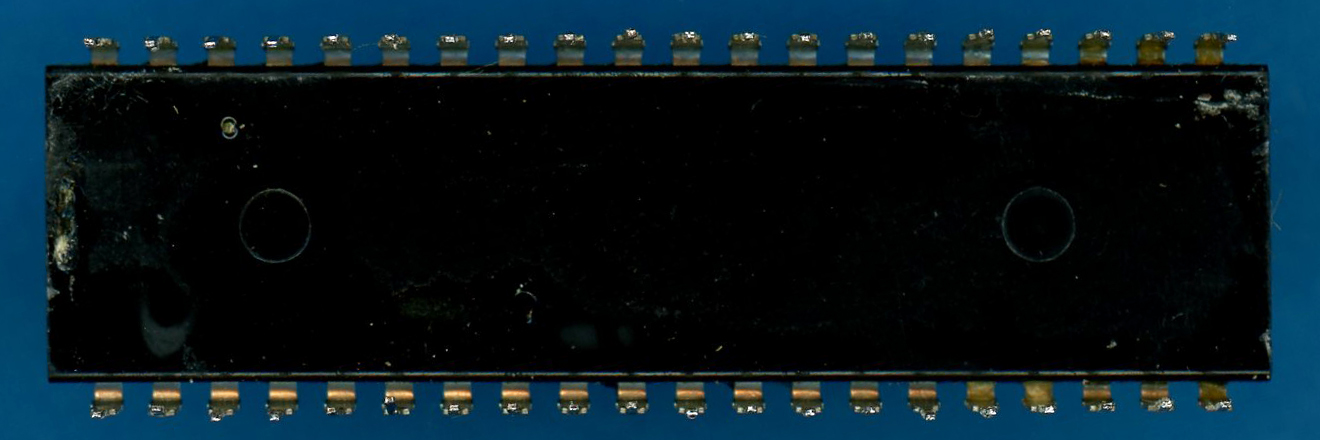

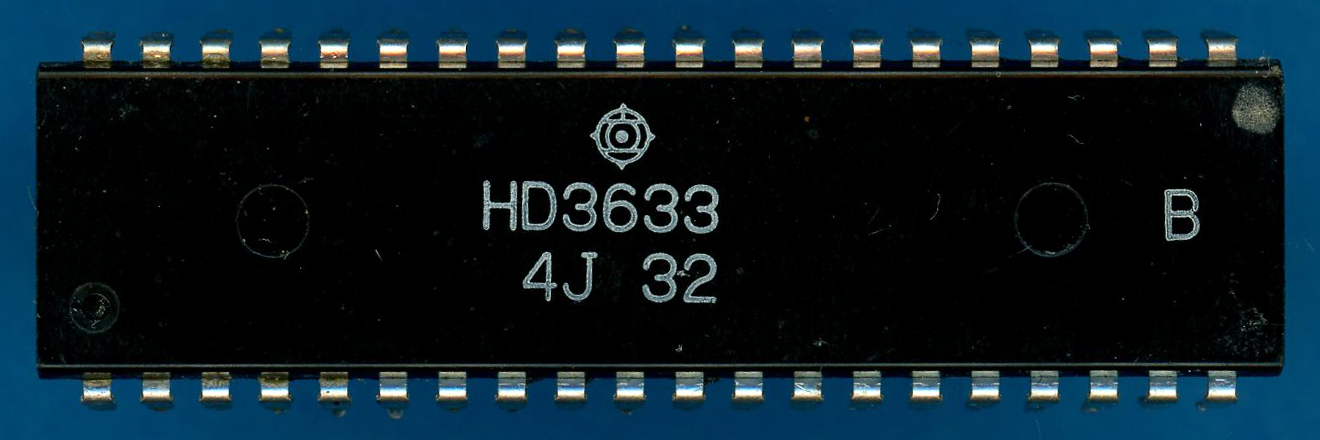

Close-up view
of the HD3633 single-chip calculator circuit.  |

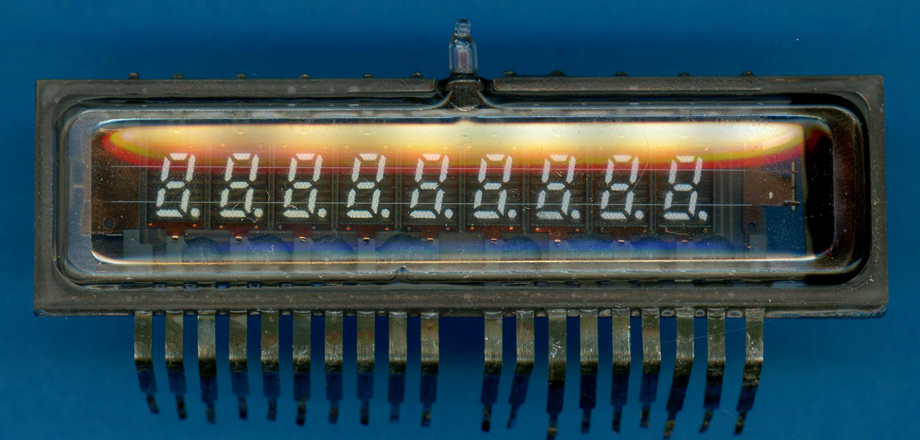

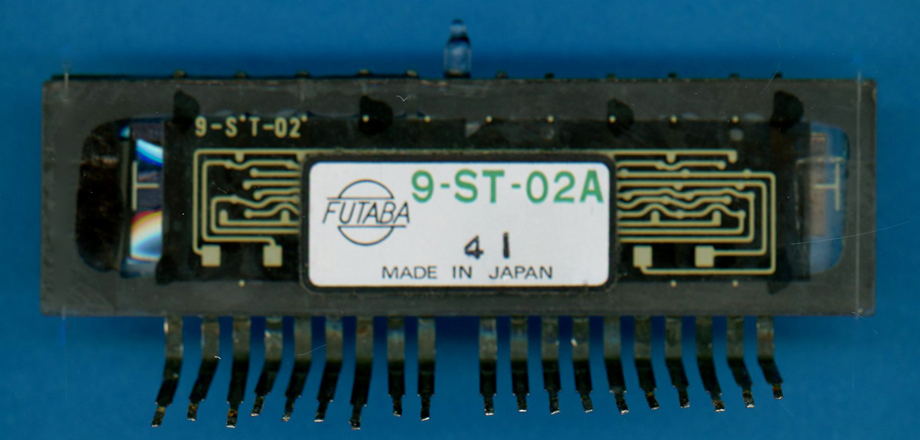

Close-up view of the
FUTABA 9-ST-02A Vacuum Fluorescent Display (VFD).  |
