Additional Pictures

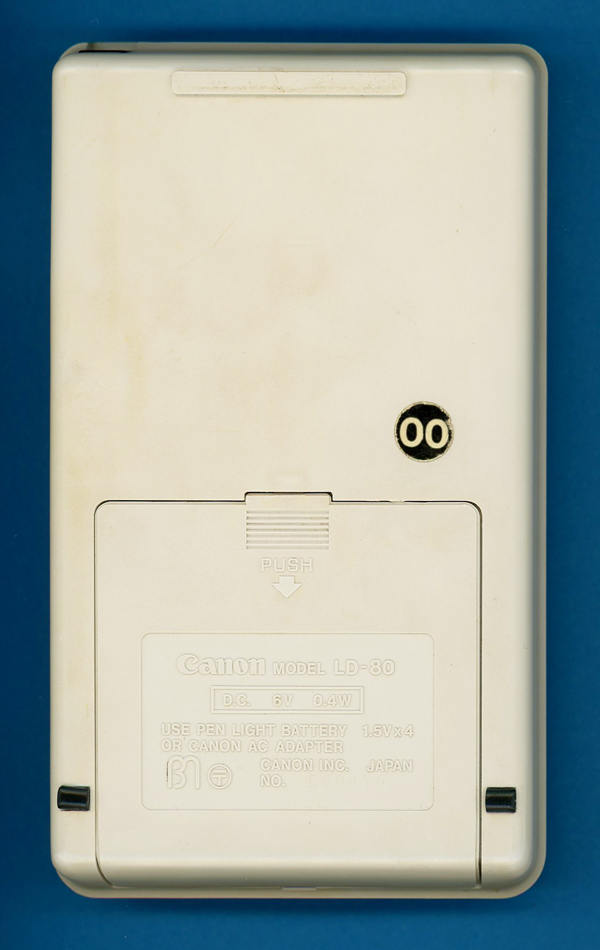

This Canon LD-80 was manufactured
in December 1974 in Japan. |

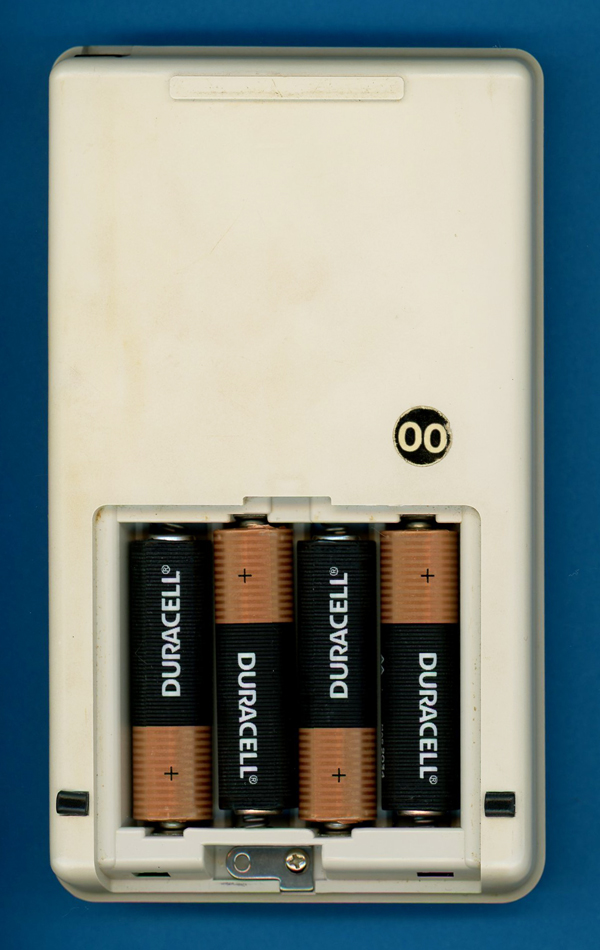

The Canon LD-80 is powered
by four disposable AA-sized batteries. |

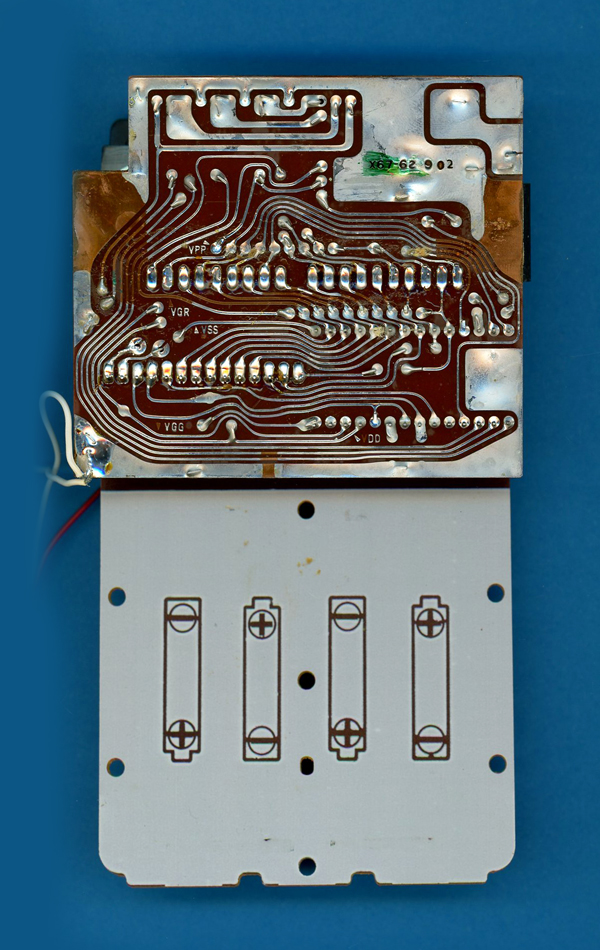

The Canon LD-80
calculator with the backside of its housing removed. |

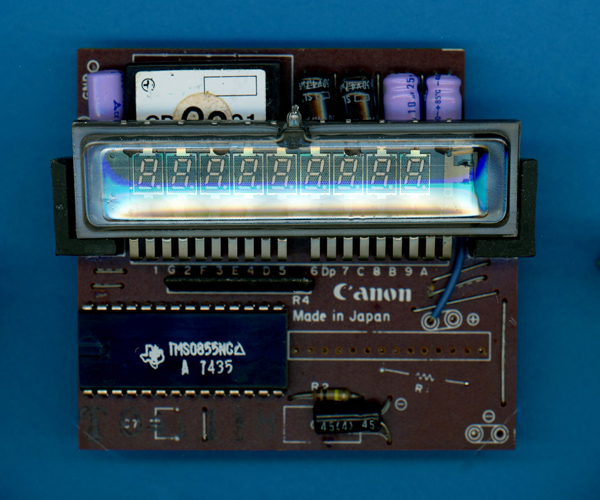

| The single-sided printed
circuit board (PCB) of the Canon LD-80 is centered around a TMS0855 single-chip calculator circuit.  |
Close-up view
of the TMS0855 single-chip calculator circuit. |
Close-up view of the
FUTABA 9-ST-02A Vacuum Fluorescent Display (VFD).  |
