Additional Pictures
| This
Canon Canola L813 II
was
manufactured in August 1984 in Japan.
|

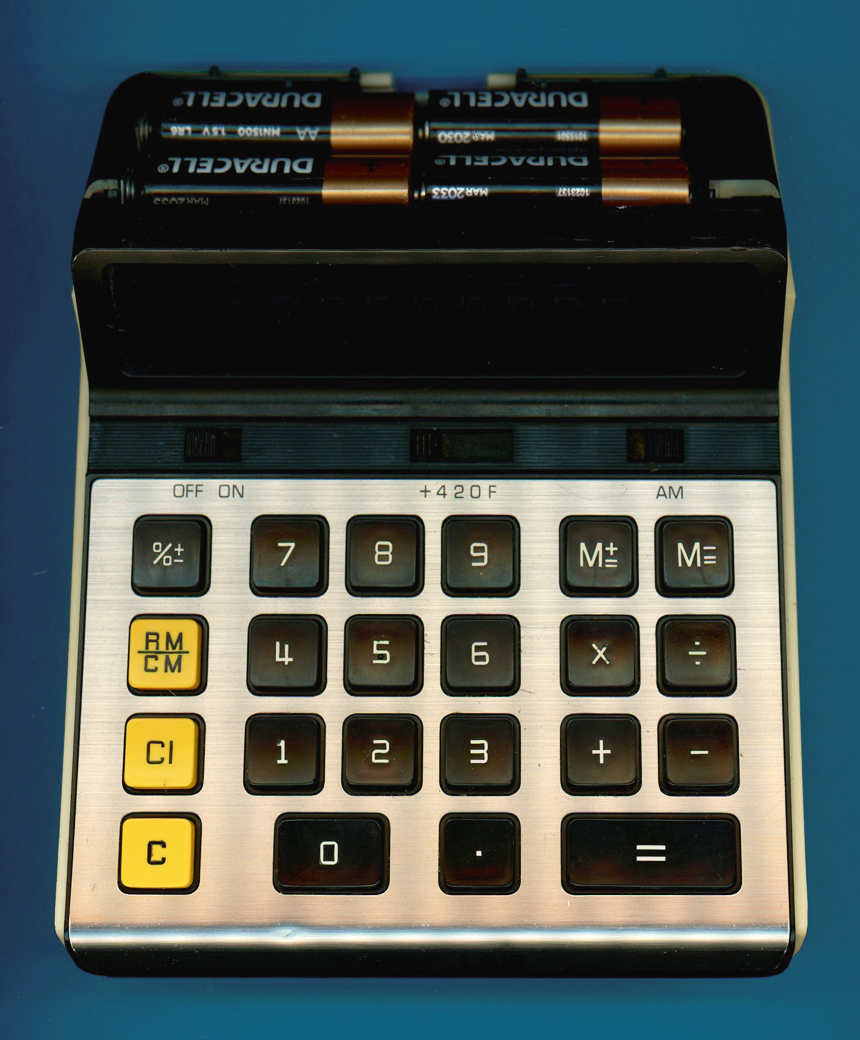

The Canon Canola L813 II calculator
is powered by four AA-size batteries. |

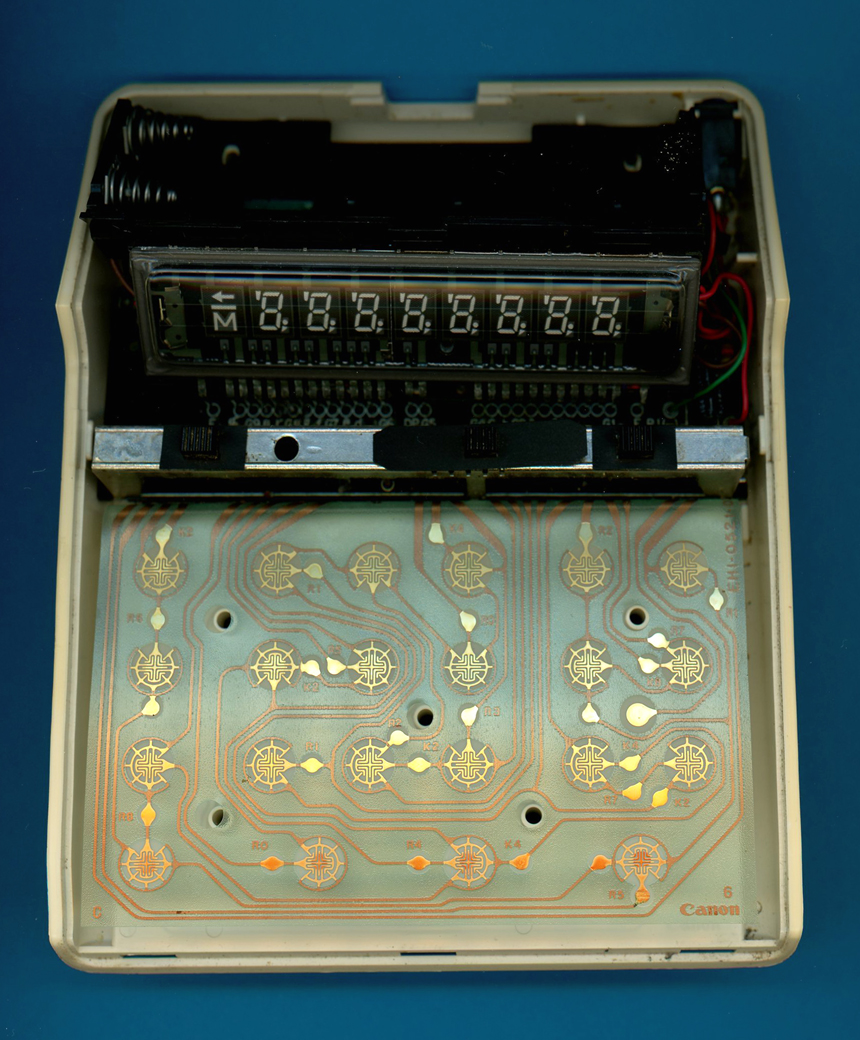

| The Canon Canola L813 II with its
front cover removed.
|

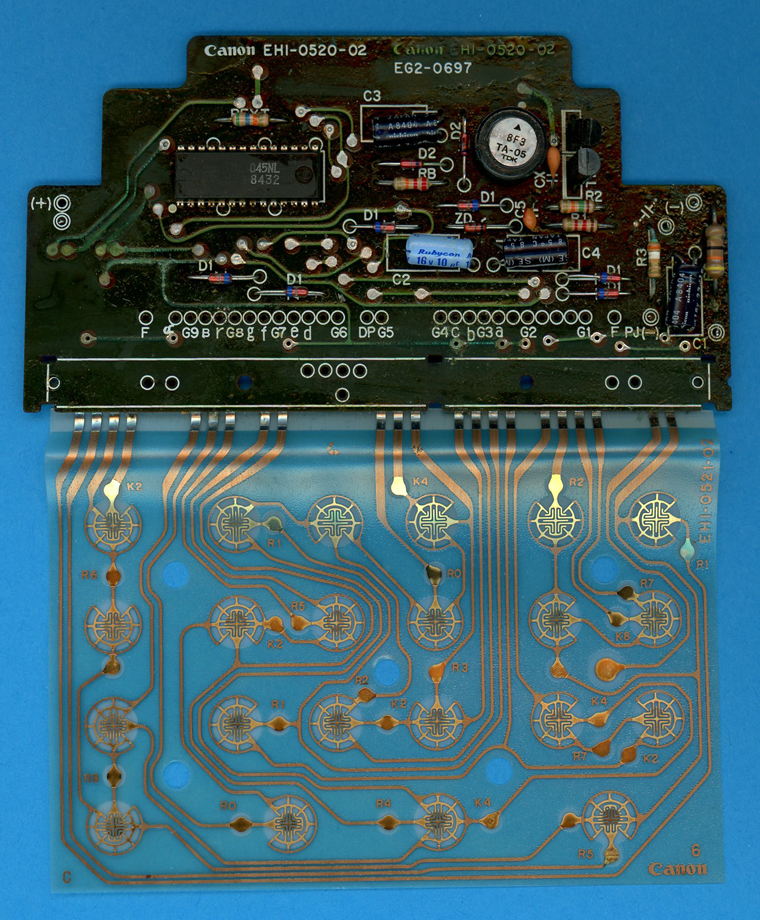

| The printed circuit board
(PCB) of the Canon Canola L813 II calculator is centered around a TMS1045 single-chip calculator circuit.
|

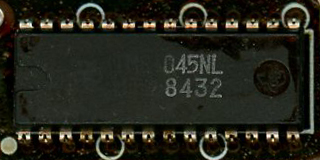

| The
Close-up
view of the TMS1045 single-chip calculator circuit.
|
| The
Close-up
view of the FUTABA 9-BT-18A Vacuum Fluorescent Display (VFD).
|
If you have additions to the above article please email: joerg@datamath.org.
