Additional Pictures
This Caltronic 912 was manufactured
in February 1973 in Hong Kong. |

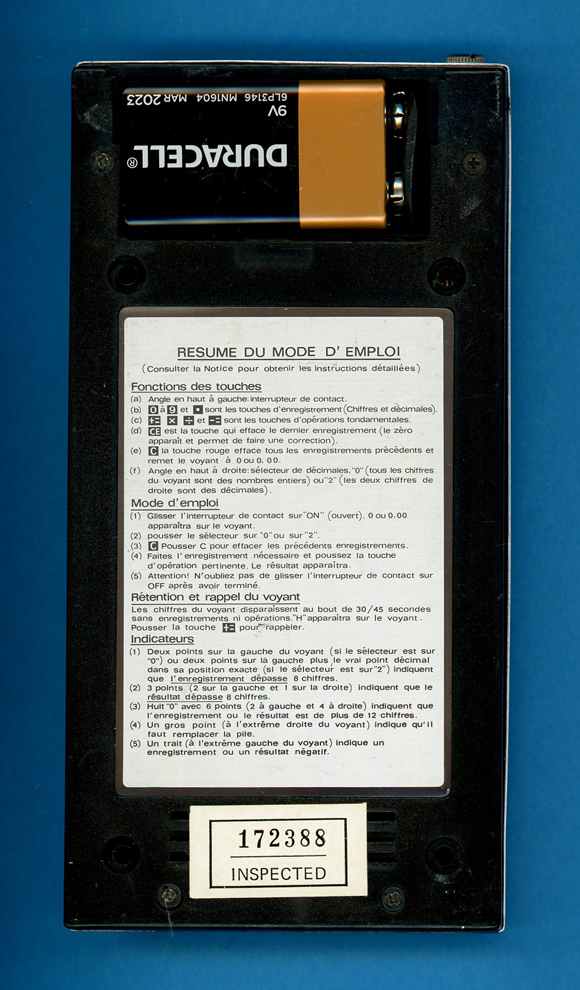

The Caltronic 912 is
powered by a disposable 9V battery. |

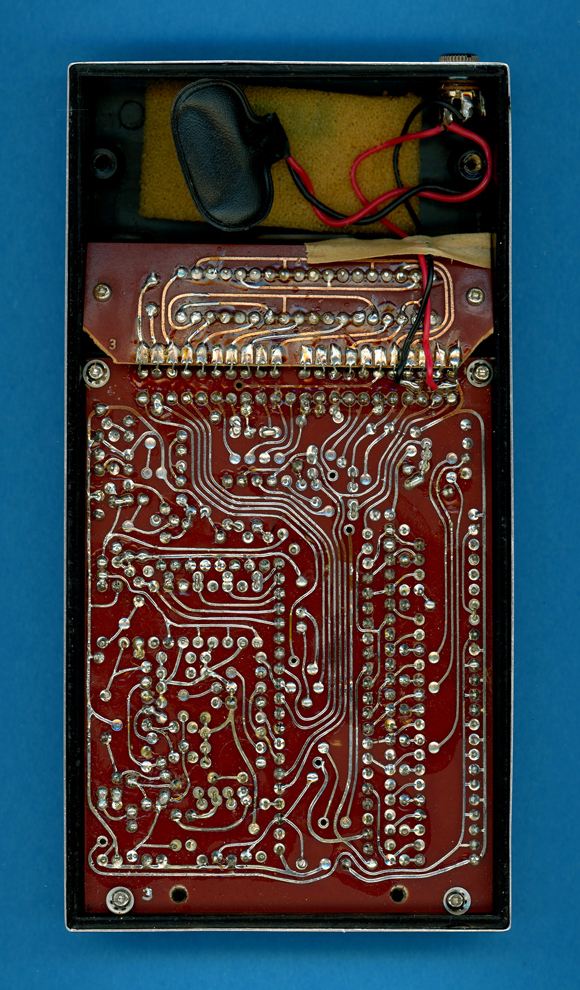

The
Caltronic 912 calculator with the rearside of its housing removed. |

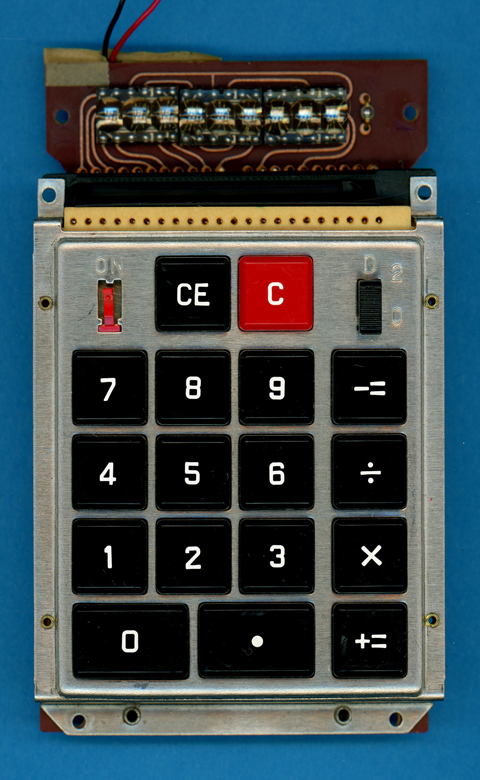

The
Caltronic 912 calculator with its housing completely
removed. |

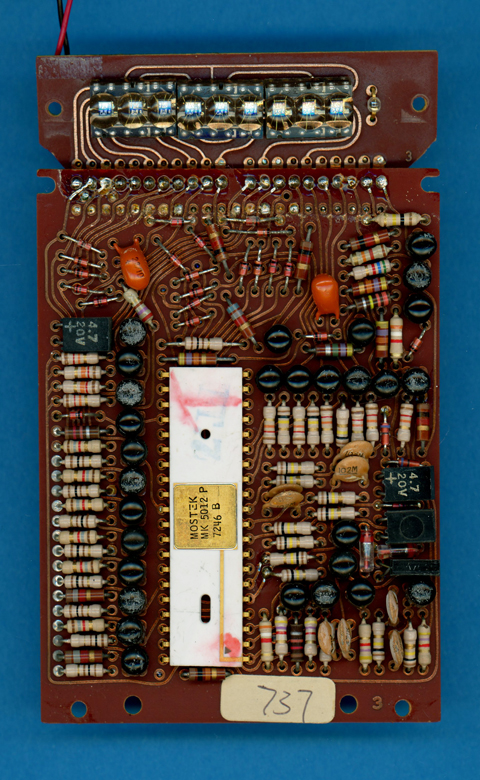

| The Main printed circuit
board (PCB) of the Caltronic 912 is centered around a Mostek MK5012P single-chip calculator circuit.  |

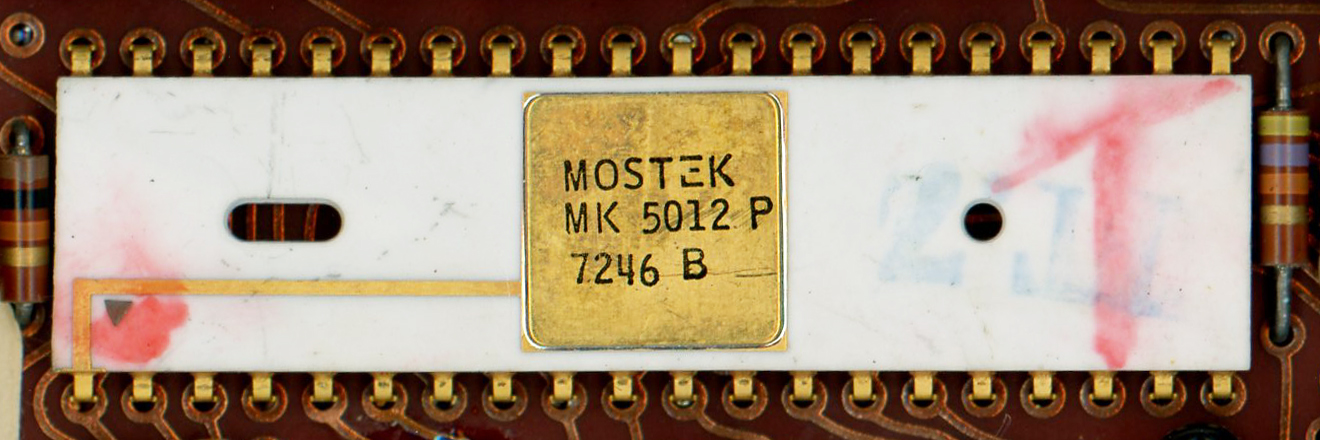

Close-up view of the Mostek MK5012P
single-chip calculator circuit. |

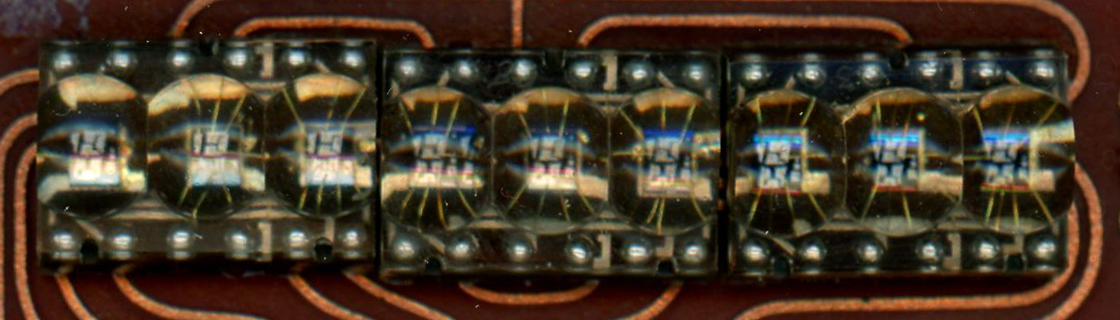

Close-up view of the 3
Litronix DL-33 Seven-Segment LED Displays. |
