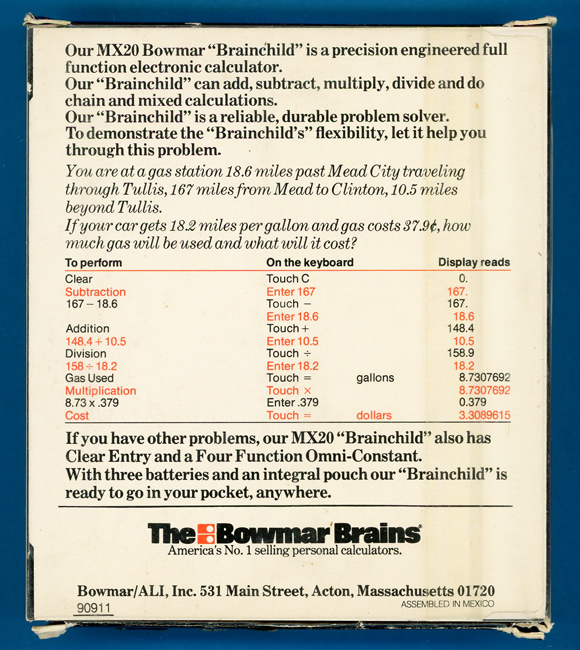

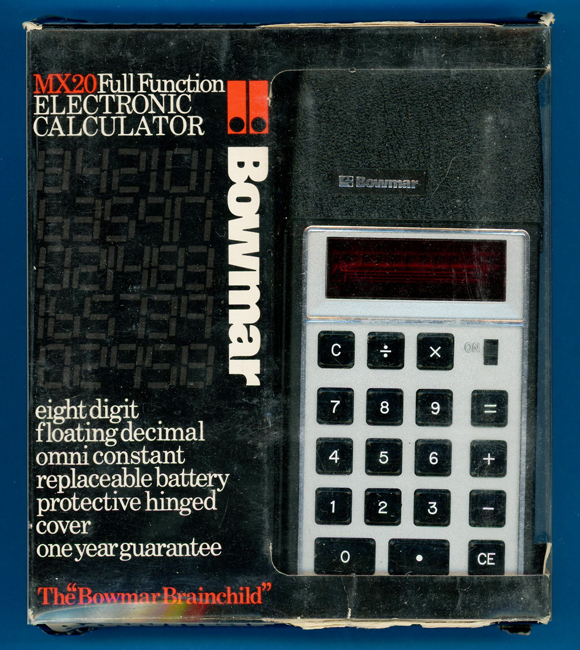

The
sales box of the Bowmar Brainchild MX20 sold
around 1974 in the US.
  |

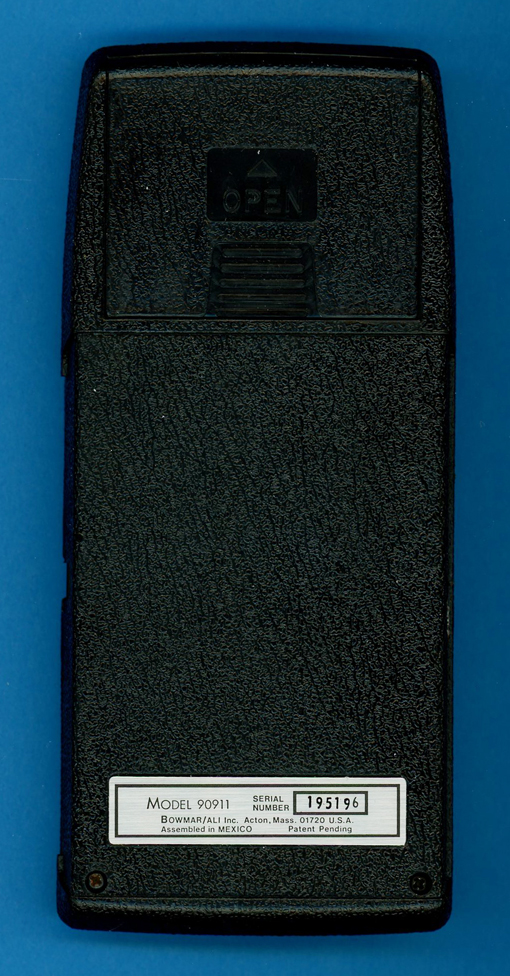

This Bowmar MX20
(90911) with Serial Number 195197 was manufactured
in March 1974 in Mexico.  |

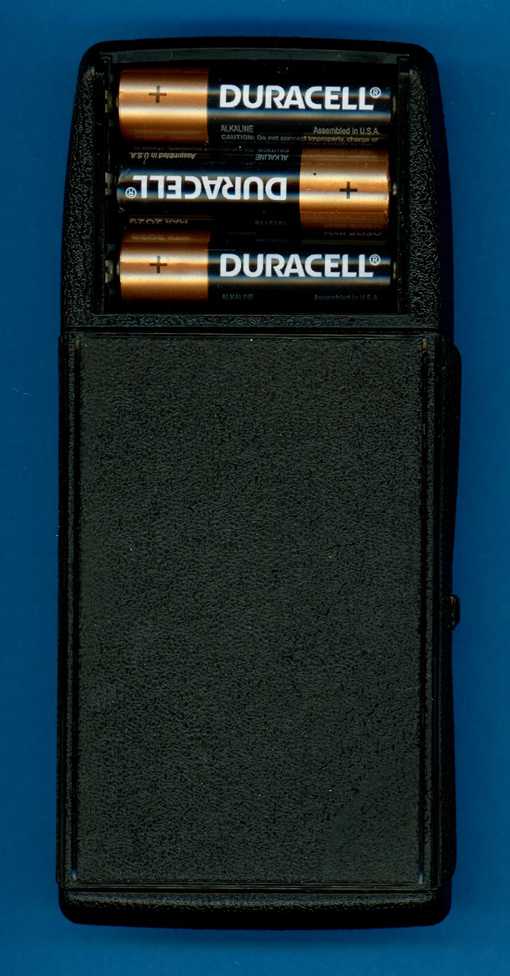

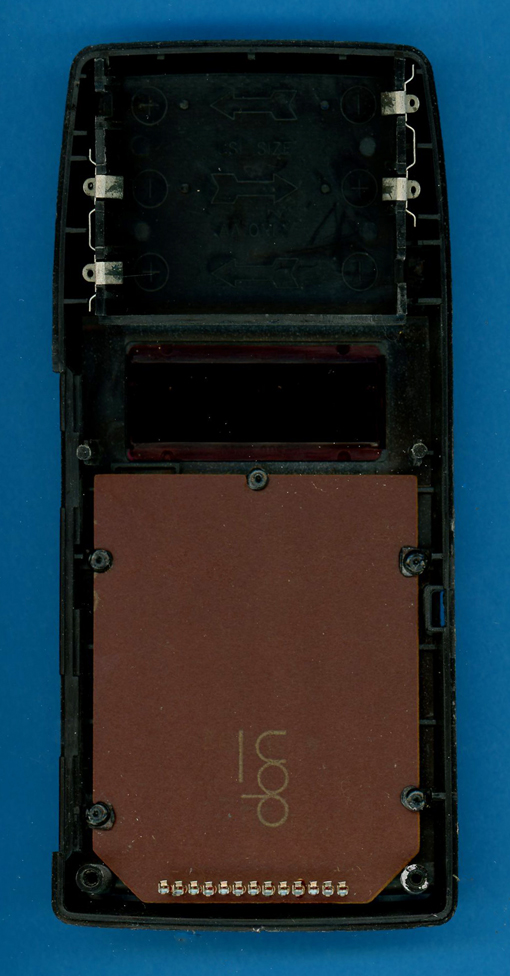

The Bowmar MX20 is powered by
three disposable AA-sozed Volts batteries. |

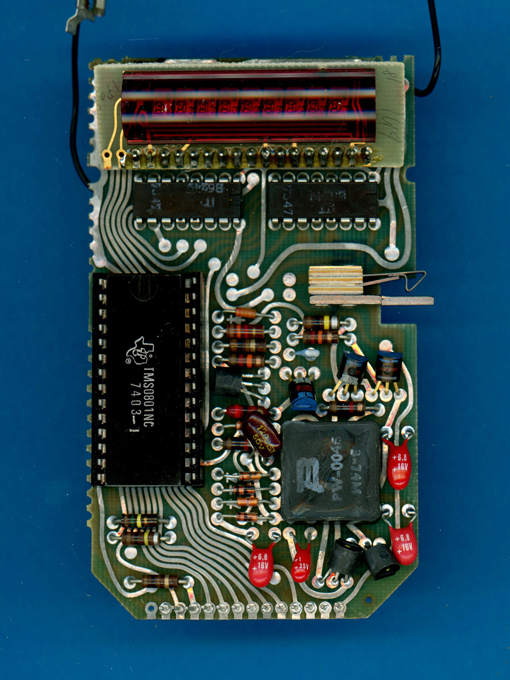

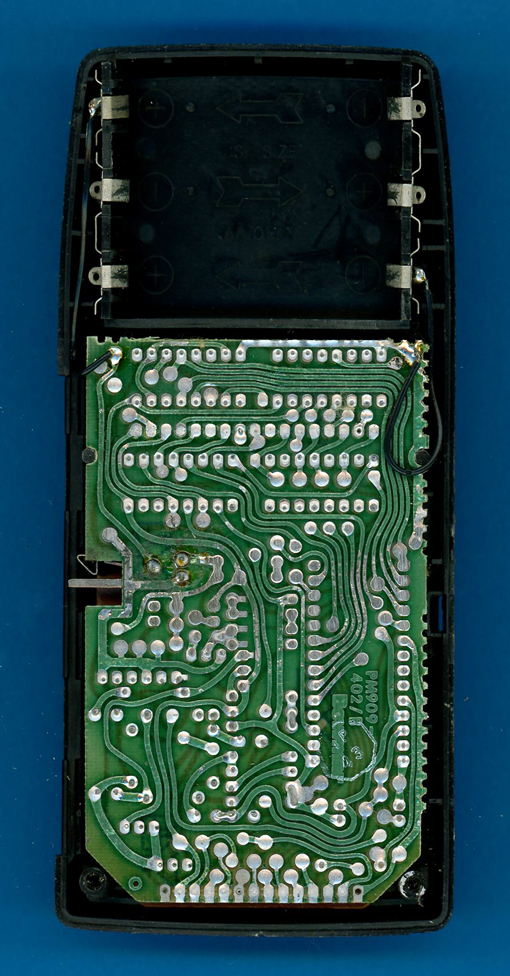

| The printed
circuit board (PCB) of the Bowmar MX20 is centered
around a TMS0801 single-chip calculator circuit and supported by four display driver chips.    |

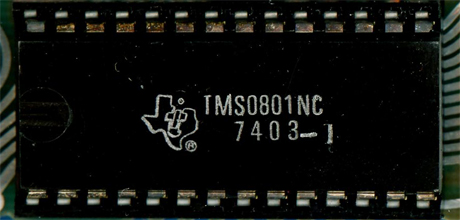

Close-up view
of the TMS0801 single-chip calculator circuit.  |
Close-up view of the ITT B 6248 Digit Driver. |

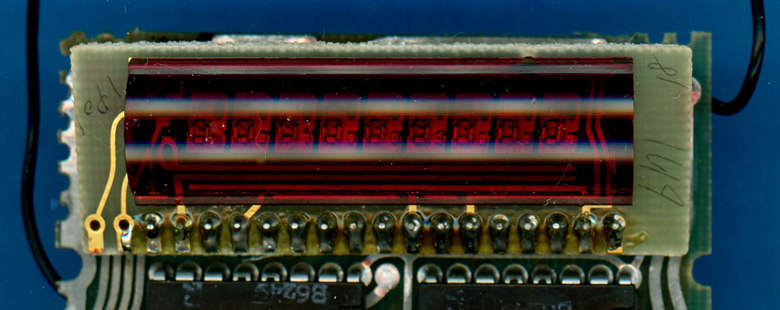

Close-up view of the
Bowmar Optostic R7H-112-9A Module of a MX20
manufactured in March 1974. |
