Additional Pictures



This Bohsei Model 1000 was manufactured in September 1977 in Hong Kong.

The Bohsei Model 1000 calculator is powered by two AA-size batteries.

The Bohsei Model 1000 with its rear cover removed. .

The keyboard and VF-Display of the Bohsei Model 1000.

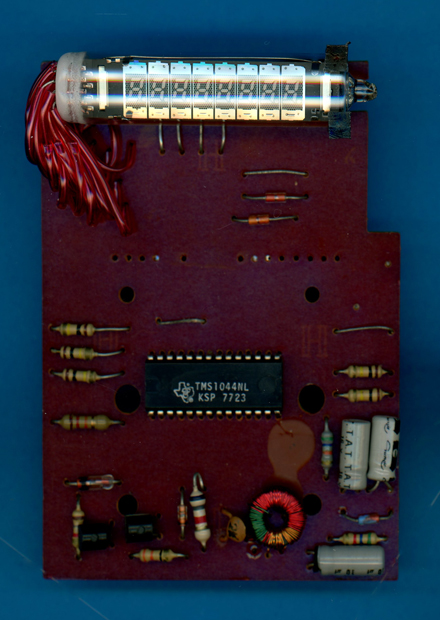

The printed circuit board (PCB) of the Bohsei Model 1000 calculator is centered
around a TMS1044 single-chip calculator circuit.

The Close-up view of the TMS1044 single-chip calculator circuit.

The Close-up view of the ITRON DP84K Vacuum Fluorescent Display (VFD).
