Additional Pictures
This Aurora AC-22 PASSPORT Calculator was manufactured in August 1986 in Taiwan. | |

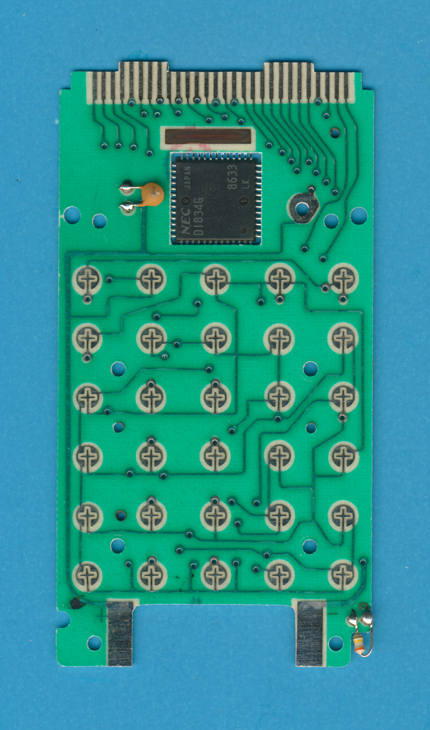

The printed circuit board
(PCB) of the Aurora AC-22 PASSPORT Calculator is centered around a NEC uPD1834G single-chip calculator circuit.
|
|

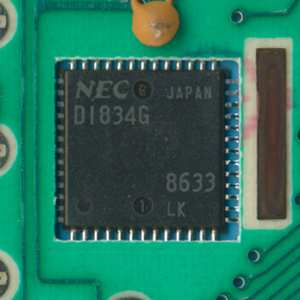

Close-up
view of the NEC uPD1834G single-chip calculator circuit.
|

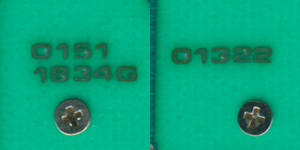

Close-up
view of the PCB-Marks of the AC-22 PASSPORT Calculator. |
