Additional Pictures

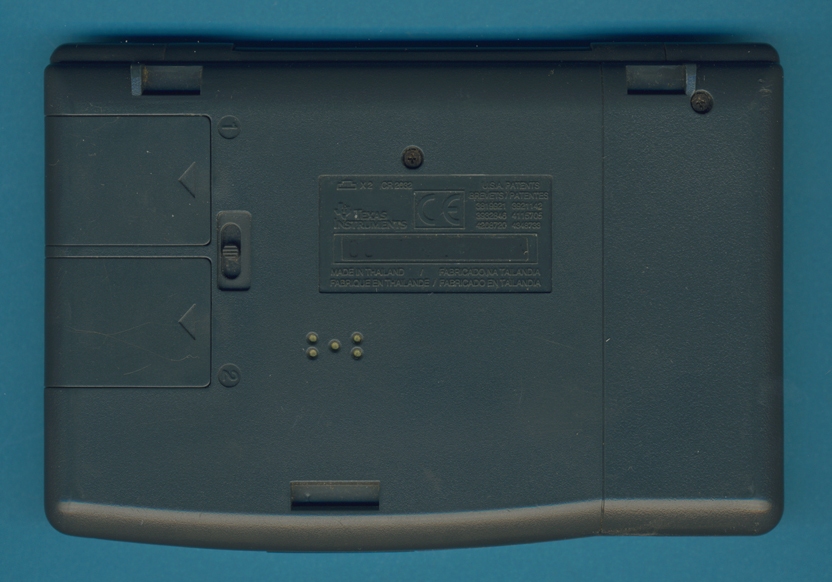

| This PS-6960Si
Personal Organizer
was
manufactured in July 1997 by Compal Electronics in Thailand (Date code C-0797).
|
|

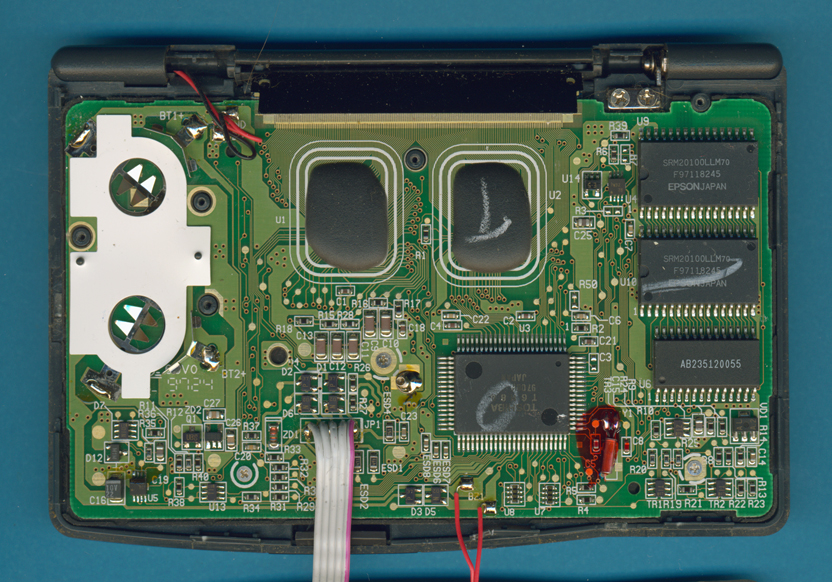

| The printed circuit board
(PCB) of the PS-6960Si is centered around the Toshiba T6M88 Application Specific CPU.
|
|

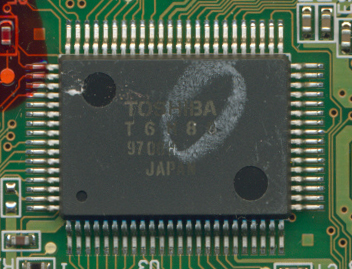

| The Toshiba
T6M88 Application Specific CPU with its Z80 compatible core.
|
The Program
memory of the PS-6960Si with 64k Bytes capacity.
|

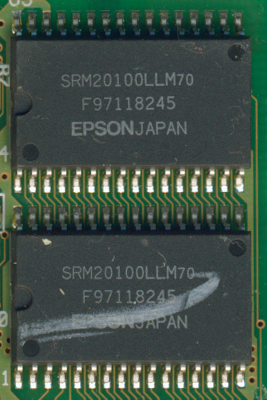

| The PS-6960Si makes use of
two Memory chips with 128k Bytes capacity, each.
|

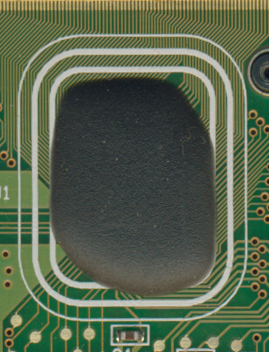

One of the
two display drivers of the PS-6960Si in Chip-on-Board (COB) technology.
|
