Additional Pictures
| This
PS-6860Si
Personal Organizer
was
manufactured early in 1996 by Compal Electronics in Taiwan.
|
|

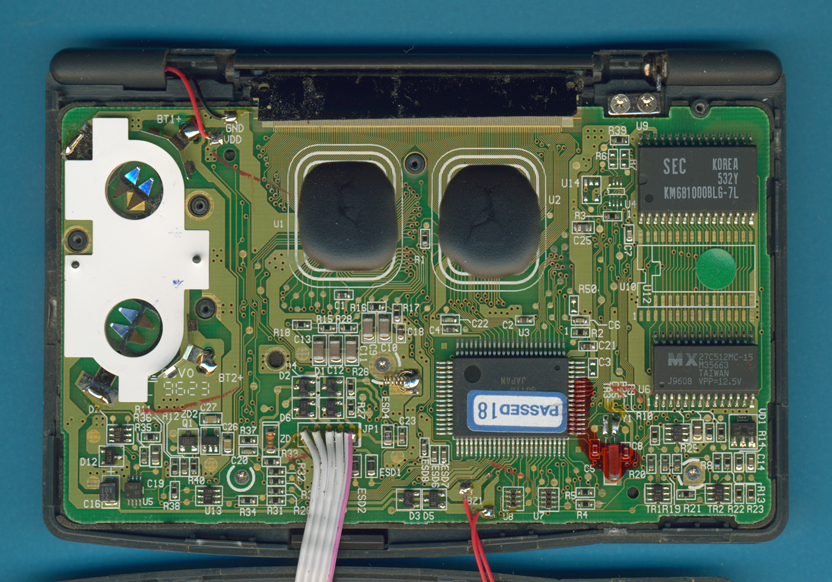

| The printed circuit board
(PCB) of the PS-6860Si is centered around the Toshiba T6M88 Application Specific CPU.
|
|

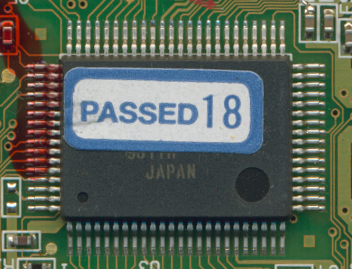

| The Toshiba
T6M88 Application Specific CPU with its Z80 compatible core.
|
The Program
memory of the PS-6860Si with 64k Bytes capacity.
|

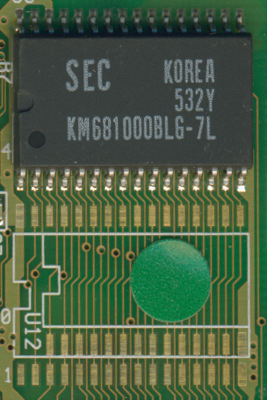

| The
PS-6860Si makes use of one Memory chip with 128k Bytes capacity.
|

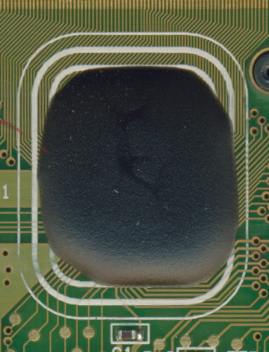

One of the
two display drivers of the PS-6860Si in Chip-on-Board (COB) technology.
|
If you have additions to the above article please email: joerg@datamath.org.
