Additional Pictures

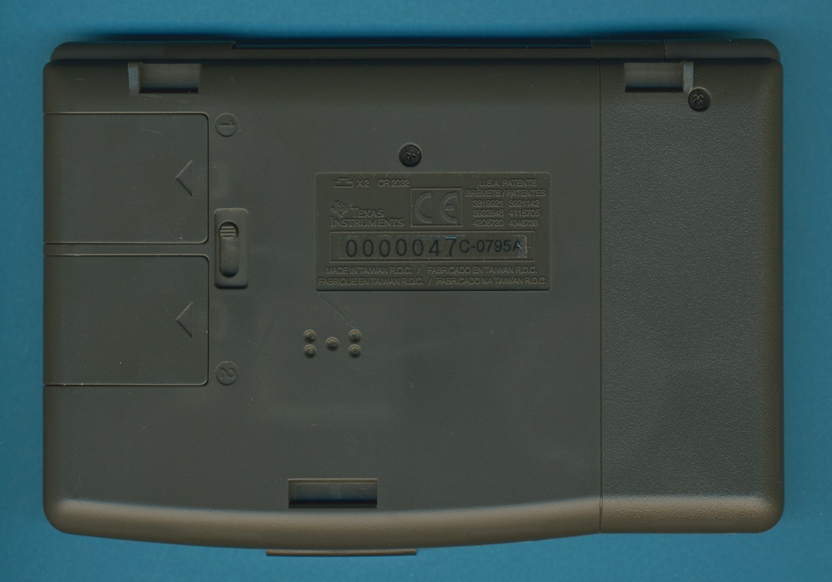

| This PS-6700
Personal Organizer
was
manufactured in July 1995 by Compal Electronics in Taiwan (Date code C-0795 » mth 07 yr 1995).
|
|

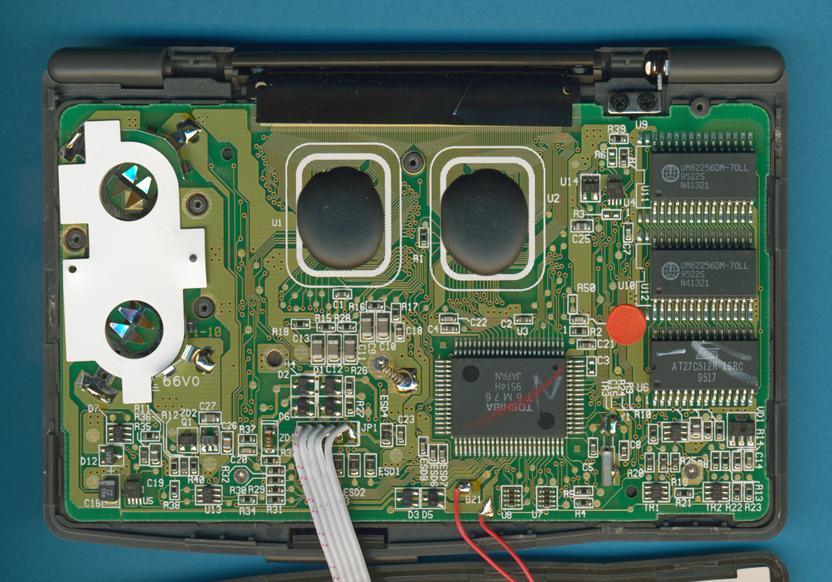

| The printed circuit board
(PCB) of the PS-6700 is centered around the Toshiba T6M76 Application Specific CPU.
|
|

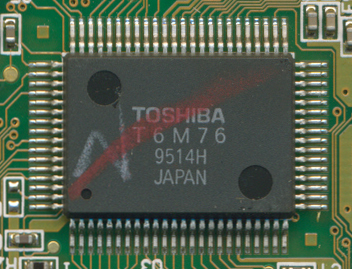

| The Toshiba
T6M76 Application Specific CPU with its Z80 compatible core.
|
The Program
memory of the PS-6700 with 64k Bytes capacity.
|

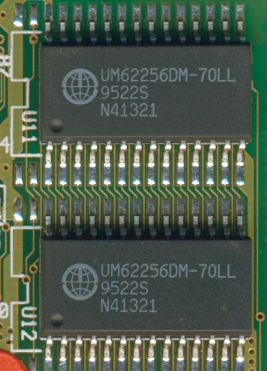

| The PS-6700 makes use of
two Memory chips with 32k Bytes capacity, each.
|

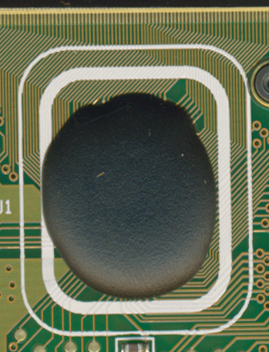

One of the
two display drivers of the PS-6700 in Chip-on-Board (COB) technology.
|
