Additional Pictures

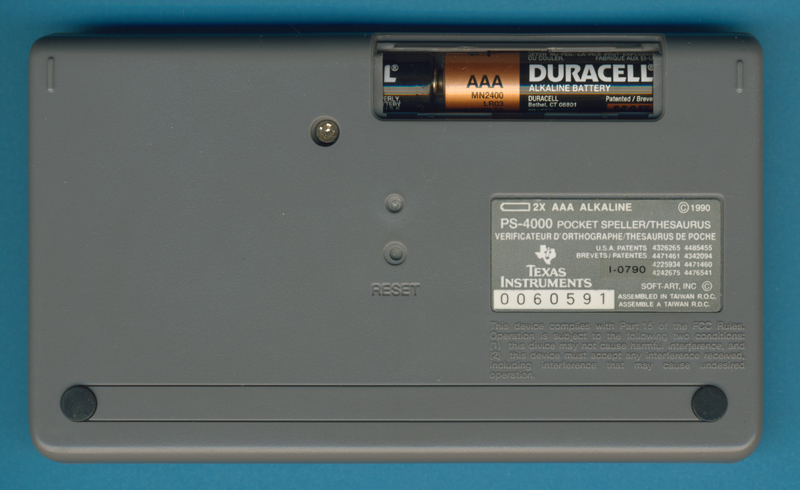

This PS-4000 Pocket Speller was manufactured in July 1990 by
Inventec Corporation in Taiwan (Date code I-0790 mth 07 yr 1990).

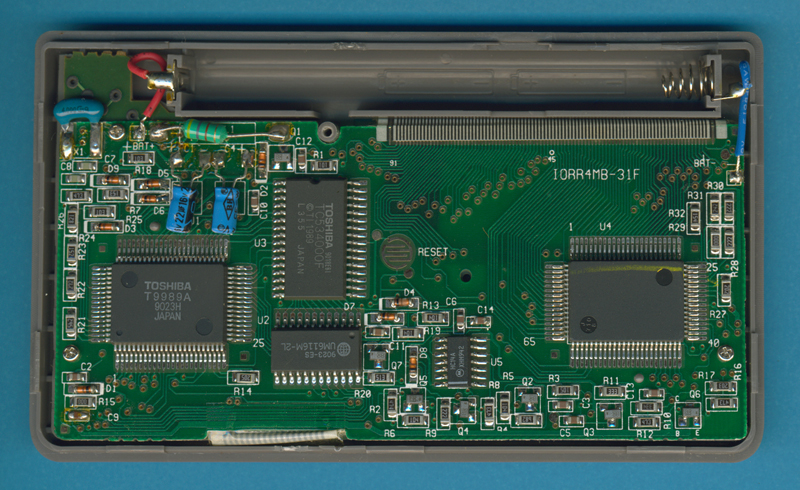

The standard hardware of the PS-4000 makes use of a 8-bit microprocessor based
on the Z80 family, a huge ROM, a small RAM and an integrated display driver.

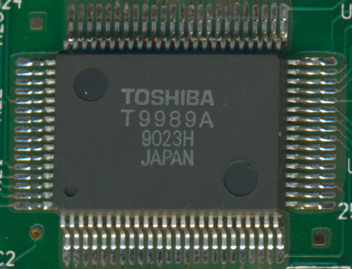

The Toshiba T9989A Application Specific CPU
with its Z80 compatible core.

The Program/Word memory of the PS-3000
with 512k Bytes capacity.



The PS-4000 makes use of one Data memory
chip with 2k Bytes capacity.

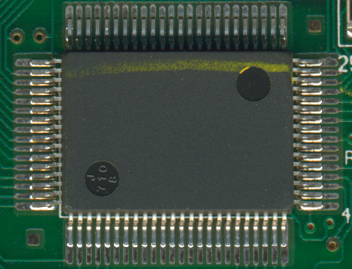

The display driver of  the PS-4000 hides
its specification.


If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, November 23, 2009. No reprints without written permission.
