| The
sales box of the
PocketMate 400
Personal Organizer sold
around 1997 in the US.
|
|
| This
PocketMate 400 Personal Organizer
was
manufactured in October 1997 by Compal Electronics in Thailand (Date code C-1097).
|
|

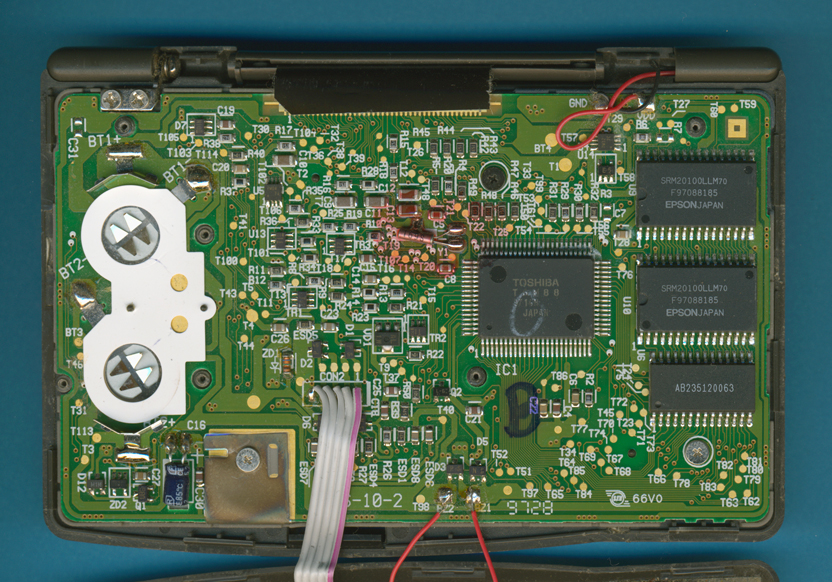

| The printed circuit board
(PCB) of the PocketMate 400 is centered around the Toshiba T6M88 Application Specific CPU.
|
|

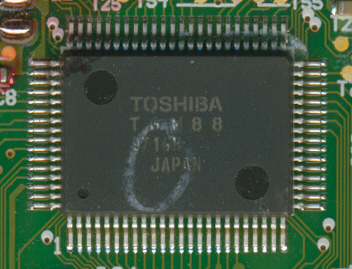

| The Toshiba
T6M88 Application Specific CPU with its Z80 compatible core.
|

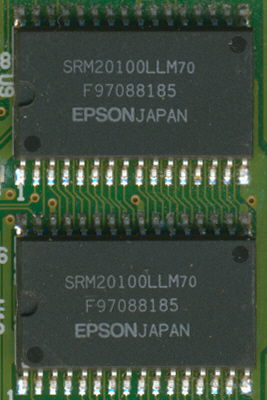

The
PocketMate 400 makes use of two Memory chips with 128k Bytes capacity, each.
|
| The Program
memory of the PocketMate 400 with 64k Bytes capacity.
|
|

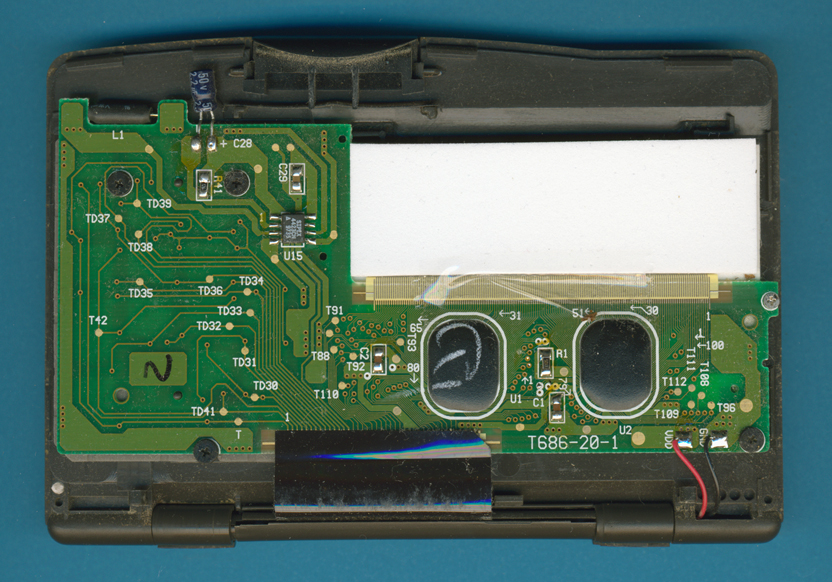

| The
additional PCB found inside the PocketMate 400 with the display
electronics, the LC-display and the keyboard assembly for the numerical keys.
|
|

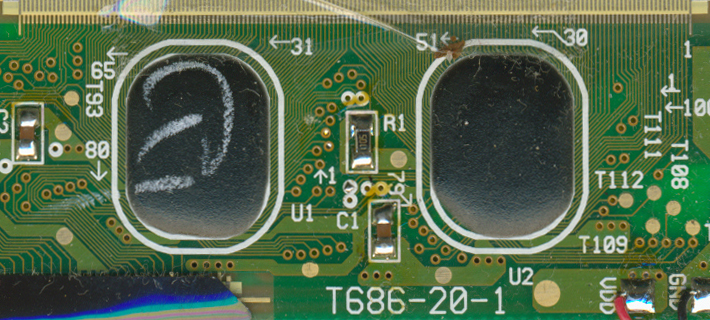

| The
two display drivers of the PocketMate 400 in Chip-on-Board (COB)
technology.
|
|
