| This
PocketMate 300
Personal Organizer was
manufactured in September 1997 by Compal Electronics in Thailand (Date code C-0997).
|
|

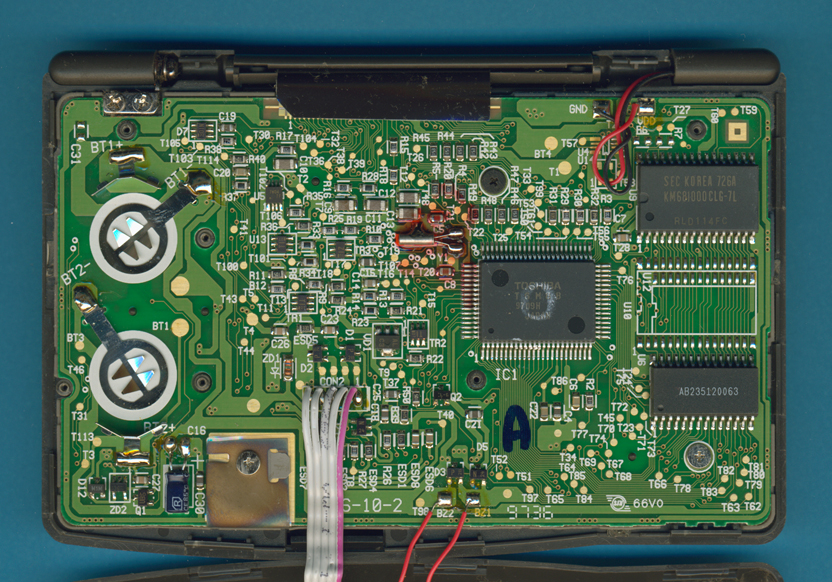

| The Main printed circuit board
(PCB) of the PocketMate 300 is centered around the Toshiba T6M88 Application Specific CPU.
|
|

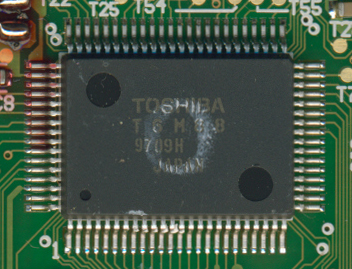

| The Toshiba
T6M88 Application Specific CPU with its Z80 compatible core.
|

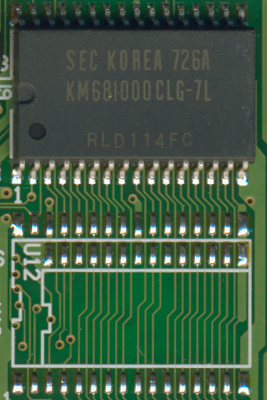

The
PocketMate 300 makes use of one Memory chip with 128k Bytes capacity.
|
| The Program
memory of the PocketMate 300 with 64k Bytes capacity.
|
|

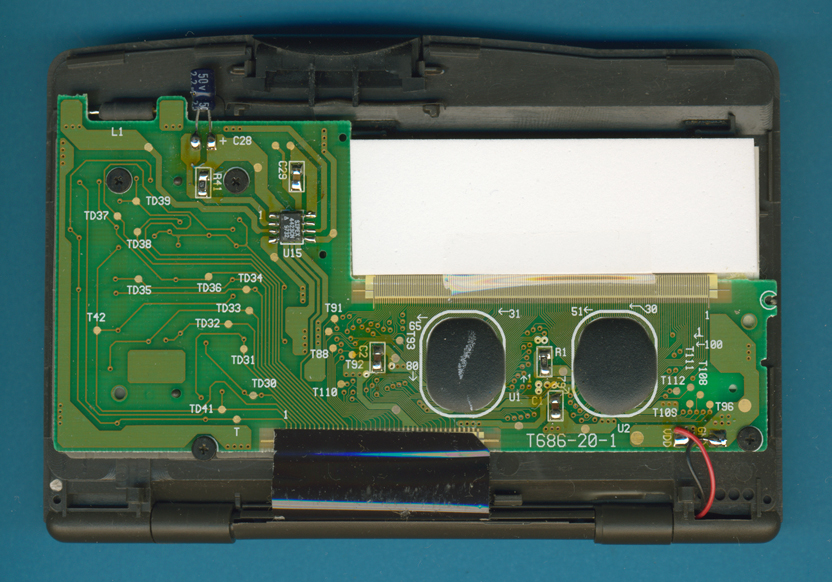

| The
additional PCB found inside the PocketMate 300 with the display
electronics, the LC-display and the keyboard assembly for the numerical keys.
|
|
| The
two display drivers of the PocketMate 300 in Chip-on-Board (COB)
technology.
|
|
