This Concept II was manufactured in February 1976 by
Texas Instruments in Lubbock, TX (Date code 0876 LTA week 08 year 1976).

The colorful CONCEPT I side by side with the CONCEPT II.

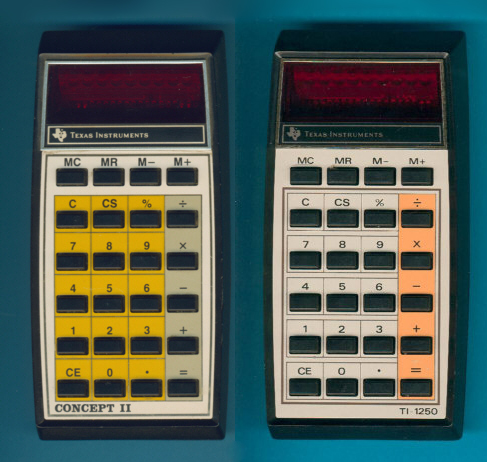

The colorful CONCEPT II side by side with its sibling TI-1250.

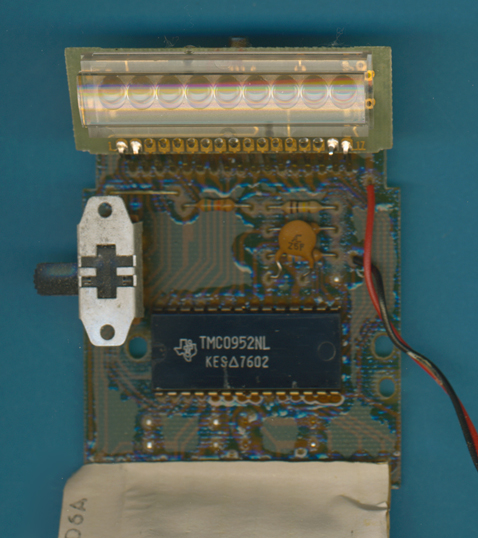

The printed circuit board (PCB) of the featured CONCEPT II
is centered around a TMS0952 single-chip calculator circuit.

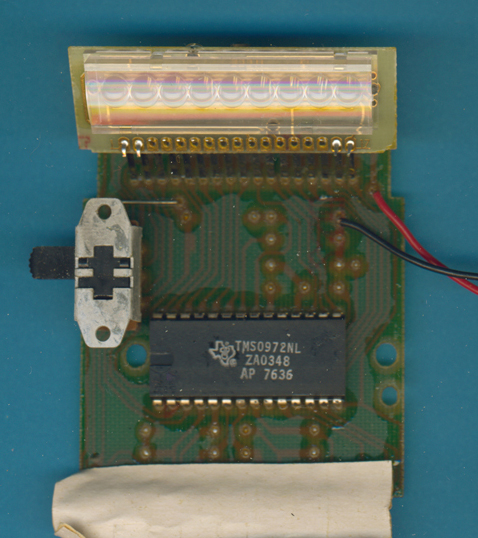

The printed circuit board (PCB) of a CONCEPT II manufactured in October 1976
is centered around a TMS0972 single-chip calculator circuit.

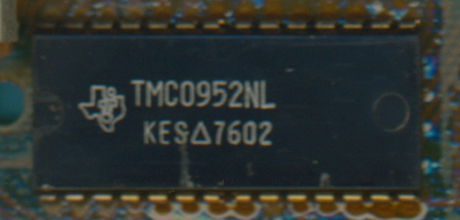

Close-up view of the TMS0952 packaged in a
28-pin DIP (Dual In-line Package).

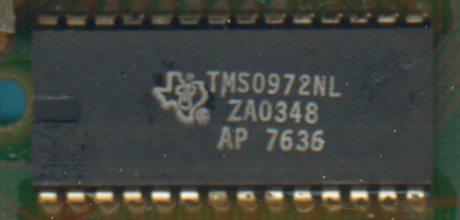

Close-up view of the TMS0972 packaged in a
28-pin DIP (Dual In-line Package).

Product Label Style 3, Concept II of the featured CONCEPT II.
