Additional Pictures

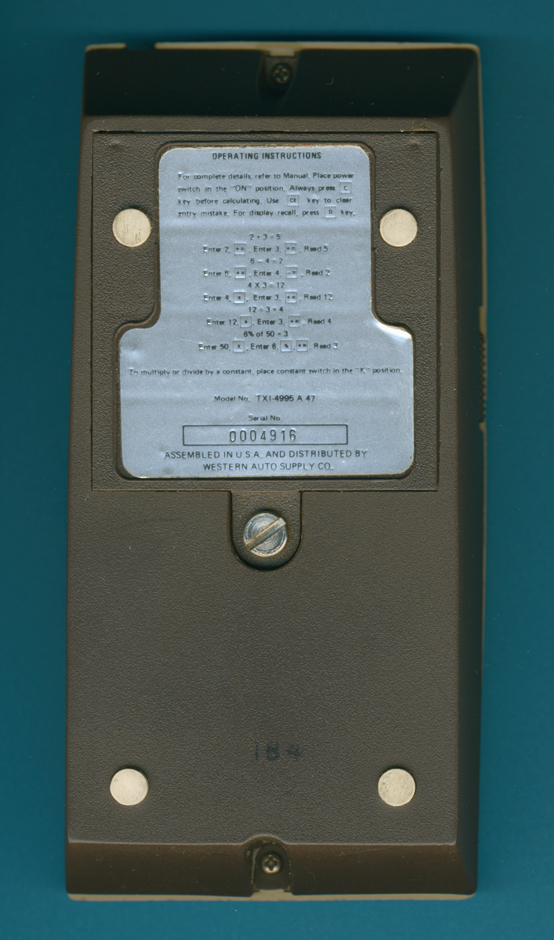

| The back
side of the Western Auto electronic Wizard with a confusing model number: TXI-4995A47.
|
|

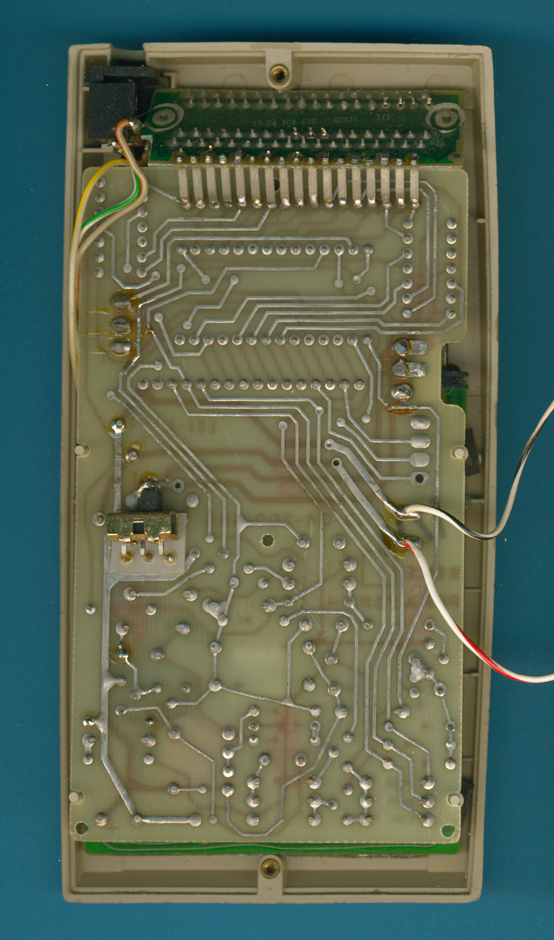

| The Western Auto
electronic Wizard with the rear of the housing removed.
|
This keyboard
assembly of the electronic Wizard is known from the TI-1500.
|

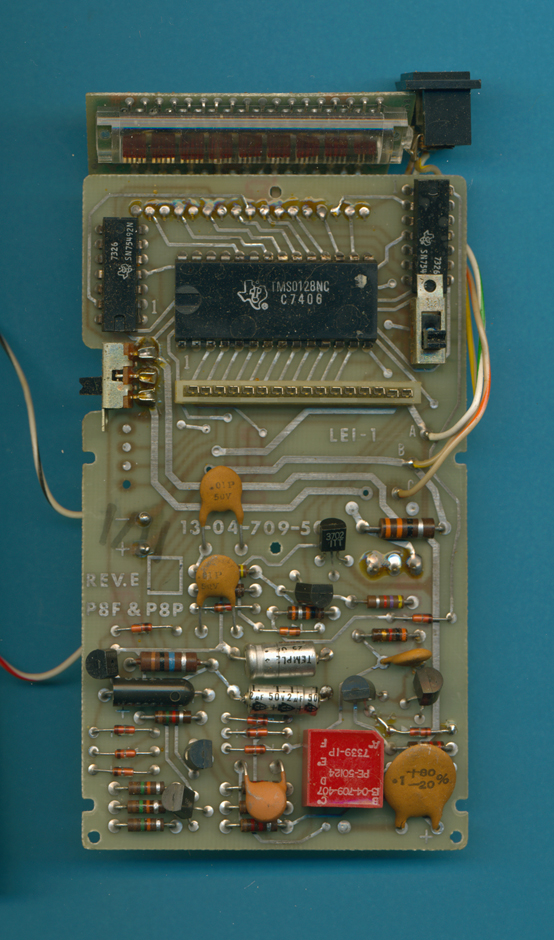

| The printed circuit board (PCB)
of the M4995 with the TMS0128 single-chip calculator circuit.
|

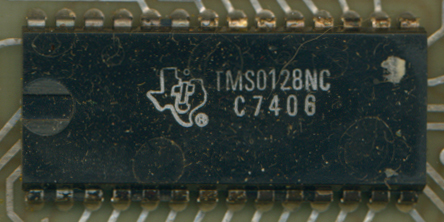

Close up
view of the TMS0128.
|
