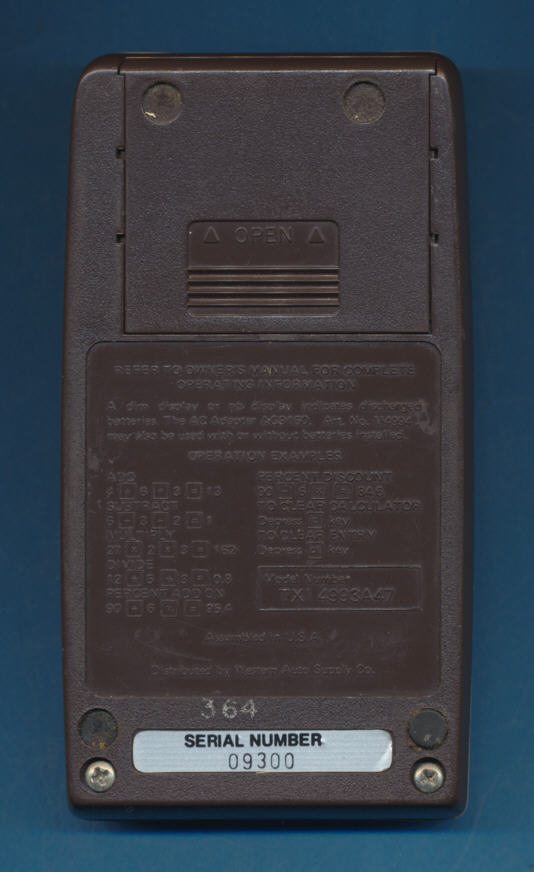

| The back
side of the Western Auto electronic Wizard with a confusing model number: TXI 4993A47.
|
|

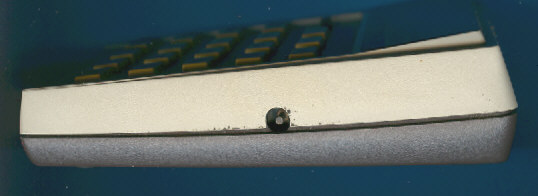

| The side
view
of the Western Auto electronic Wizard aka M4993 (top) shows the changed mold for the display frame compared to the Exactra line.
|
|
| The "woody"
name plate of the Western Auto electronic Wizard.
|
|
| The Western Auto electronic Wizard
with an unknown display construction.
|

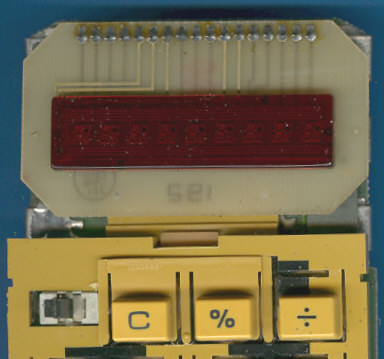

This Exactra 23 uses a LED display
manufactured by Bowmar, better known as Opto-Stick.
|

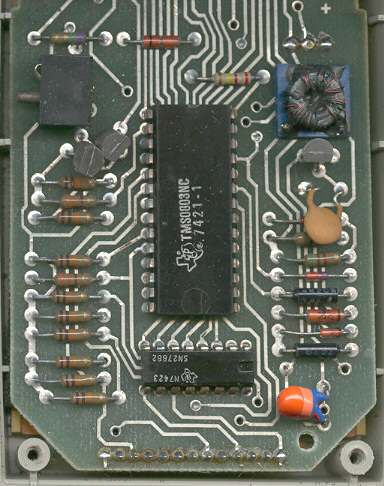

| The printed circuit board (PCB)
of the M4993 with the TMS0803 single-chip calculator circuit and one additional display driver plus transistors.
|
The printed circuit board of the Exactra 23 is 100% identical with the Western Auto electronic Wizard aka M4993.
|
