Additional Pictures



The sales box of the Radio Shack 65-504A Checkbook Calculator sold around 2003 in the US.



The Radio Shack 65-504A Checkbook Calculator in its sleeve with holder for a checkbook and pen.

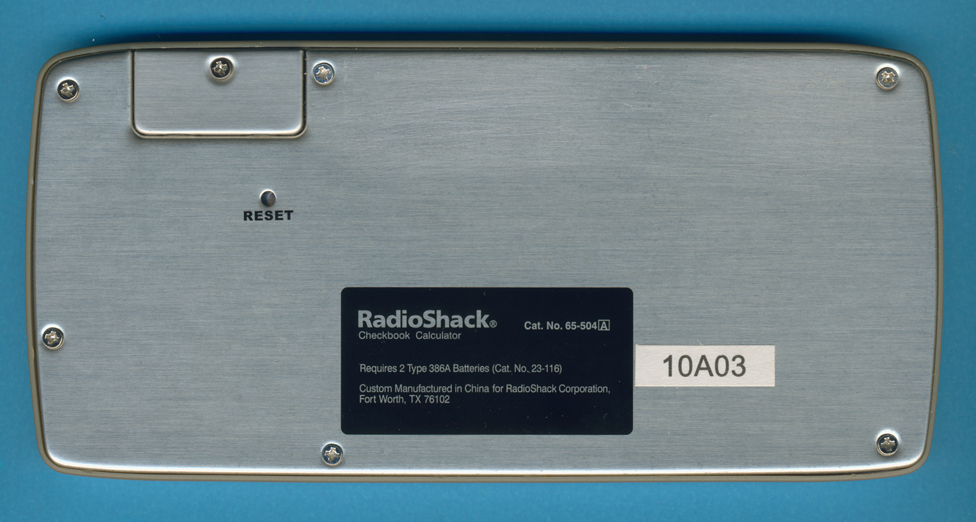

This Radio Shack 65-504A Checkbook Calculator was manufactured in October 2003 in China (Date code 10A03 » mth 10 yr 2003).

The Radio Shack 65-504A Checkbook Calculator is powered by two LR43 batteries.

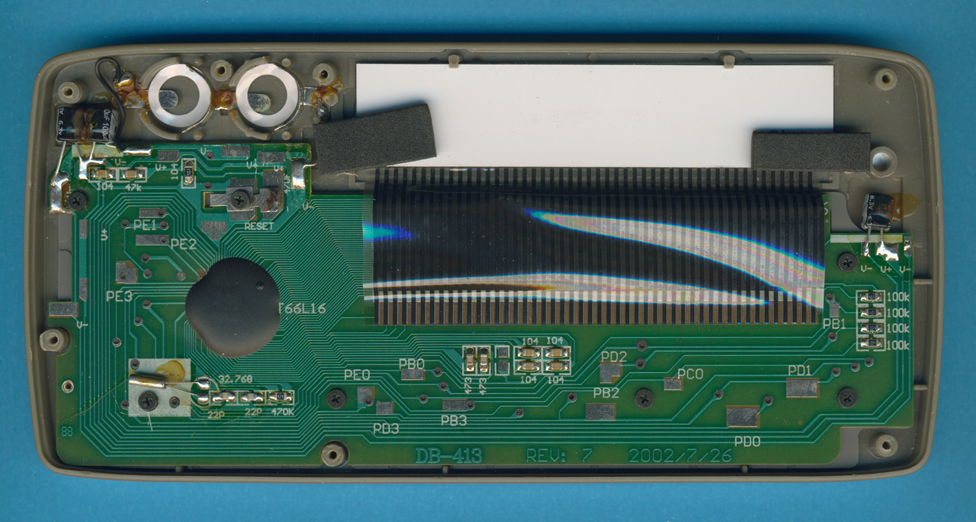

The printed circuit board (PCB) of the Radio Shack 65-504A Checkbook Calculator is centered
around a T66L16 single-chip calculator circuit hiding under a small epoxy blob.

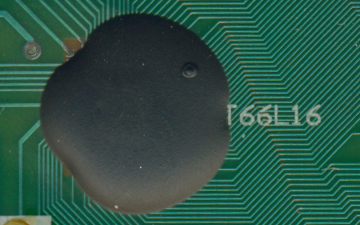

Close-up view of the T66L16 single-chip calculator circuit.

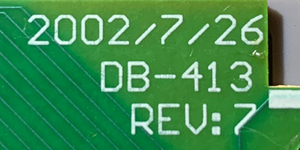

Close-up view of the PCB-Mark of a 65-504A.


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, February 26, 2020. No reprints without written permission.
