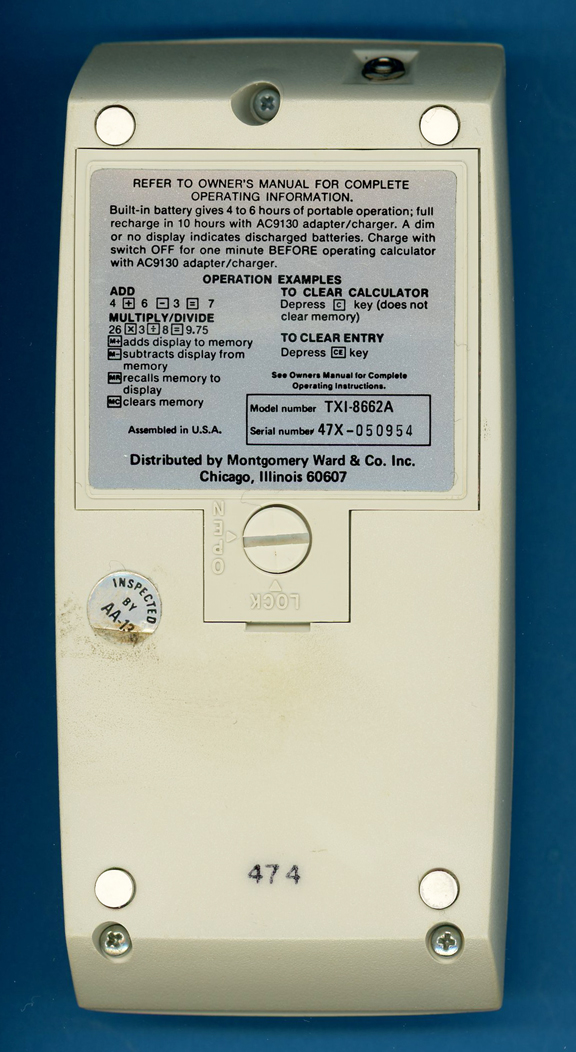

This Montgomery Ward TXI-8662A (Display 2) was manufactured in November 1974
by Texas Instruments (Date code 474 » wk 47 yr 1974).

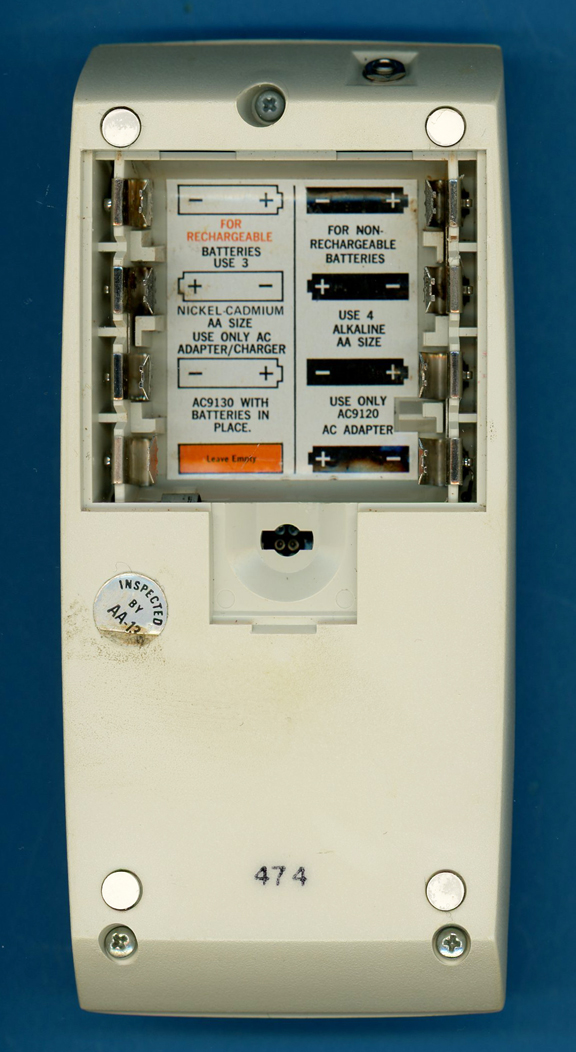

The TXI-8662A is powered three AA-sized rechargeable NiCd or four disposable Alkaline batteries.

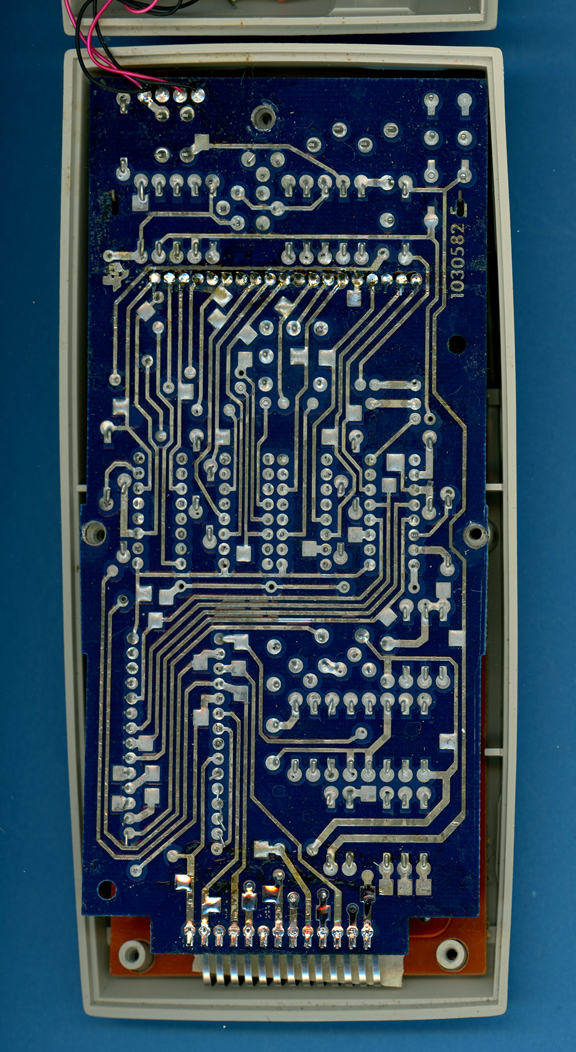

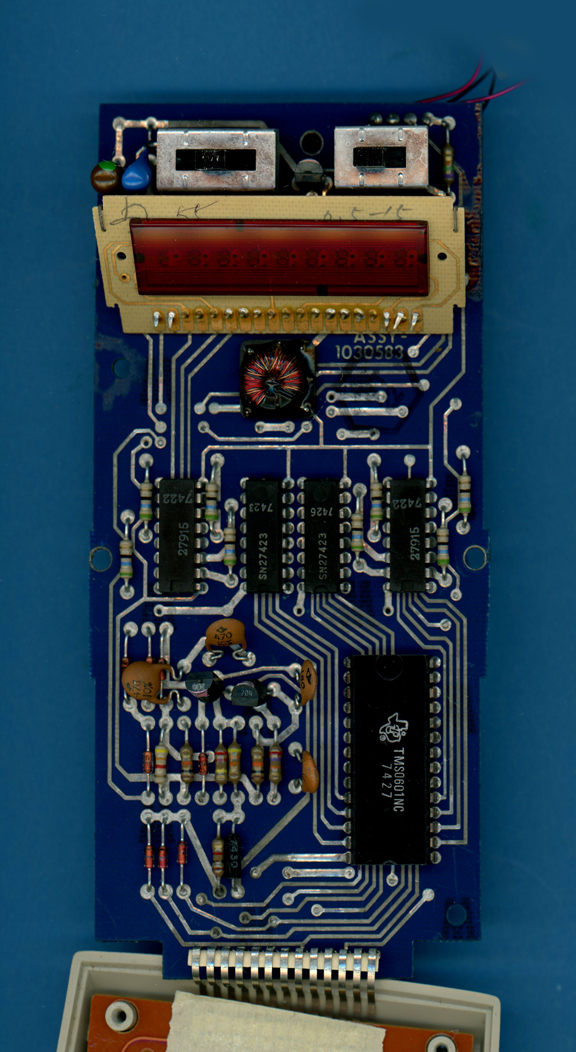

The double-sided printed circuit board (PCB) of the TXI-8662A
is centered around a TMS0601 single-chip calculator circuit.

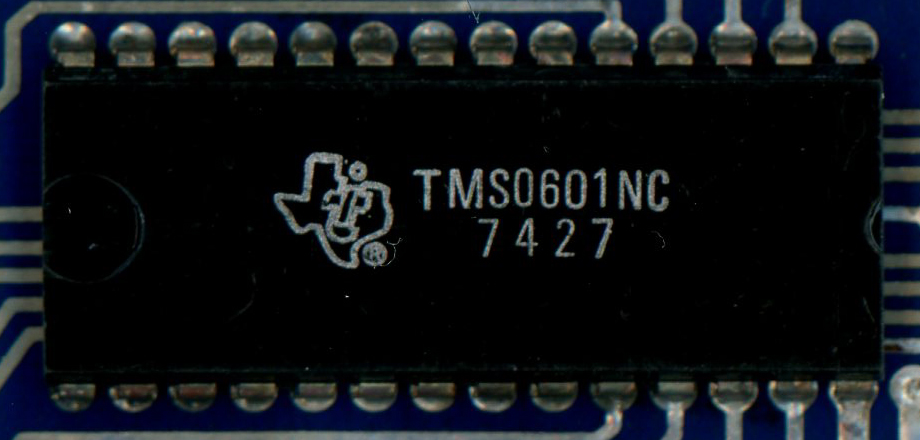

Close-up view of the TMS0601 single-chip calculator circuit.

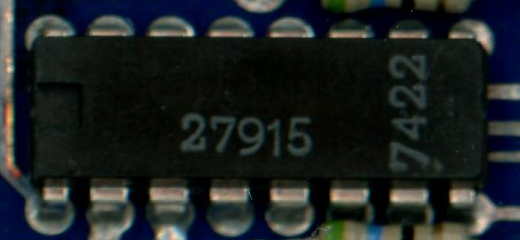

Close-up view of the SN27915 Segment Driver.


Close-up view of the SN27423 Digit Driver.

Close-up view of the DIS206A Display PCB.
