| This Longines Symphonette Electronic
Calculator was manufactured in December 1972 by Texas Instruments.  |
|
| The printed circuit board (PCB) of
the Longines Symphonette Electronic Calculator. This PCB was located in a "B-series" calculator.
|
|

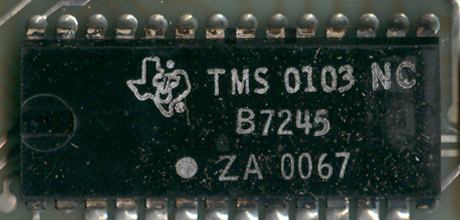

Close-up view of the
TMS0103 single-chip calculator circuit. |
|
Close-up view of the SN75491 segment driver chip. |
Close-up view of the SN75492 segment driver chip. |

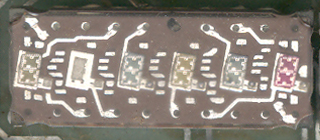

Close-up view of the DIS40 display module. |

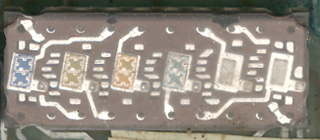

Close-up view of the DIS95 display module. |
